Summary of Contents for AOC U32V5N

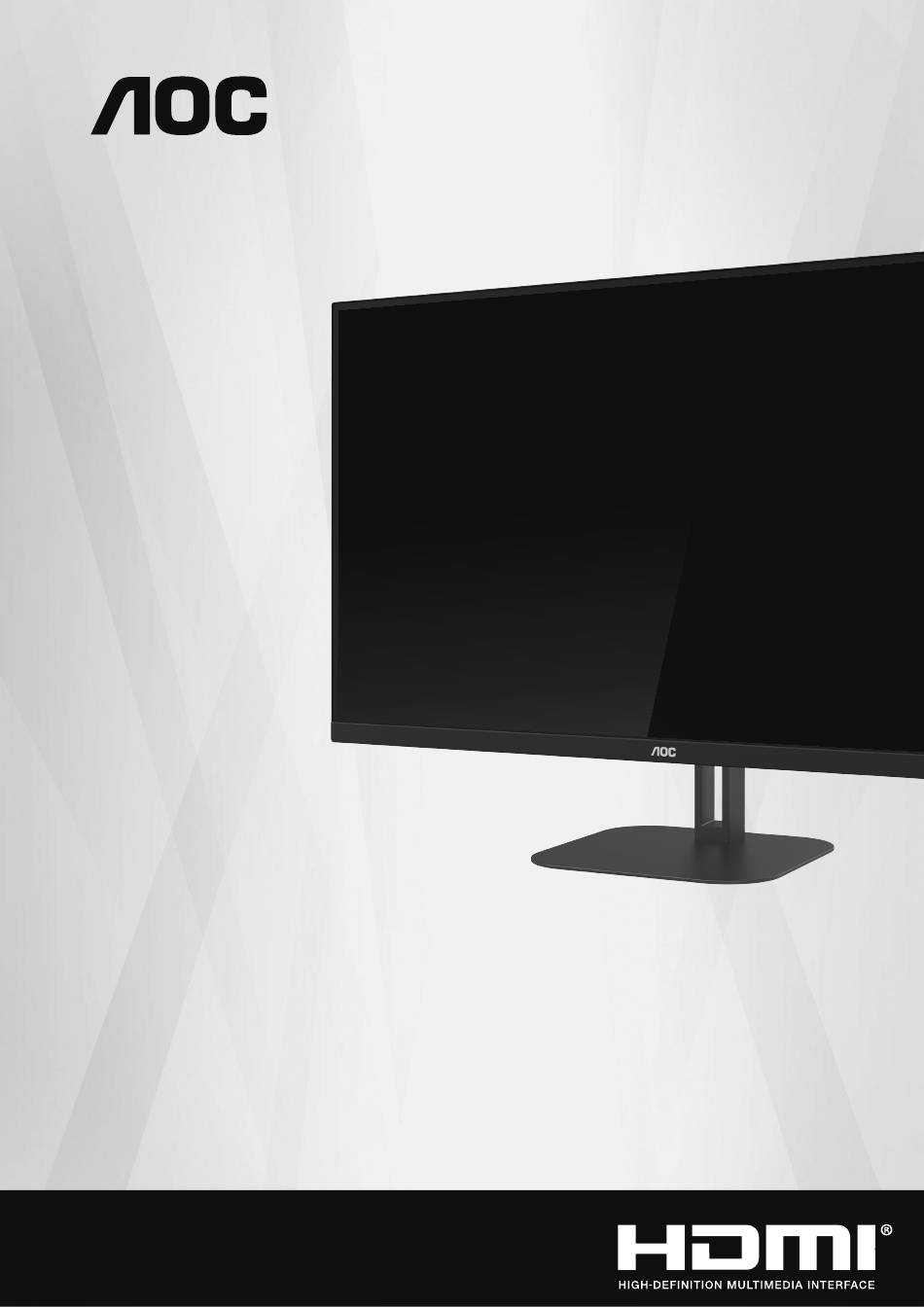

- Page 1 LCD Monitor User Manual U32V5N www.aoc.com 2024 AOC.All Rights Reserved ©...
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting Viewing Angle ............................8 Connecting the Monitor ............................. 9 HDR .................................. -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Contents in Box Monitor Important Information Quick Start Guide Warranty card Manual Base Stand Screwdriver HDMI Cable DP Cable Power Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch... -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: NOTE: Do not touch the LCD screen when you change the angle. -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 3 4 5 1. Power HDMI1 HDMI2 6. Audio out Connect to PC 3. Connect the display signal cable to the video connector on the back of your computer. 4. -
Page 12: Hdr
Compatible with HDR10 format input signals. The monitor automatically enables HDR function, but you need to have a compatible player and content. To learn information and content about HDR compatible devices, please contact the device manufacturer and content provider. When you do not need to automatically start the HDR function, please select "disable" this function. Note: 1. -
Page 13: Wall Mounting
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor. 4. Insert the 4 screws into the holes and tighten. 5. Reconnect the cables. AOC. 0° 90° -5°... -
Page 14: Adjusting
Adjusting Hotkeys Source/Exit/Up Eco mode/DCR/Down Clear Vision/Reduce/Left Volume/Increase/Right Power/Menu/Enter Power/Menu/Enter When the monitor is in the power-off state, press this button to turn on the monitor power. When the monitor is in the power-on state, press this button to activate the OSD menu or confirm function adjustment; When the OSD menu is closed, press and hold this button for about 2 seconds to turn off the monitor. - Page 15 Clear Vision 1. When there is no OSD, Press the “ <” button to activate Clear Vision. Left Right Clear Vision 3. Press and hold “ Left ” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on” will be display on the screen for a duration of 5 seconds.
-
Page 16: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Luminance Color Setup Picture Boost OSD Setup PIP Setting Game Setting Extra Exit Contrast Gamma Gamma1 Brightness Eco Mode Standard HDR Mode 1). Press the power button to activate the OSD window. 2). - Page 17 Luminance Luminance Color Setup Picture Boost OSD Setup PIP Setting Game Setting Extra Exit Contrast Gamma Gamma1 Brightness Eco Mode Standard HDR Mode Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment. Standard Standard Mode. Text Text Mode. Internet Internet Mode. Eco mode Game Game Mode.
-
Page 18: Luminance
Color Setup Color Setup Luminance Picture Boost OSD Setup PIP Setting Game Setting Extra Exit Color Temp. Warm DCB Mode Color Gamut Panel Native DCB Demo Green LowBlue Mode Blue Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Color Temp. -
Page 19: Picture Boost
Picture Boost Picture Boost Luminance Color Setup OSD Setup PIP Setting Game Setting Extra Exit Bright Frame Brightness H. Position Frame Size Contrast V. Position Bright Frame On / Off Disable or Enable Bright Frame Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness... -
Page 20: Osd Setup
OSD Setup PIP Setting Game Setting Extra Exit Luminance OSD Setup Color Setup Picture Boost Language English H. Position Transparence V. Position Timeout Break Reminder DP Capability 1.2/1.4 Language Select the OSD language. Timeout 5-120 Adjust the OSD Timeout. Choose a compatible DP version. Please note: Adaptive Sync function can only be used when DP1.2 and DP Capability... -
Page 21: Pip Setting
PIP Setting PIP Setting Game Setting Extra Exit Luminance Color Setup Picture Boost OSD Setup Swap PIP Setting Size Small Position Main Source HDMI1 Right-Up Sub Source HDMI1 Audio PIP Setting Off / PIP / PBP Disable or enable the PIP and PBP functions. Main Source Select the Main Source. -
Page 22: Game Setting
Game Setting Game Setting Extra Exit Luminance PIP Setting Color Setup Picture Boost OSD Setup Frame Counter Game Mode Game Color Dial Point Shadow Control Overdrive Low Input Lag Adaptive-Sync No optimization by Smart image game. For playing FPS (first Person Shooters) games. Improves dark theme black level details. -
Page 23: Extra
Extra Exit Picture Boost OSD Setup Extra Luminance Color Setup PIP Setting Game Setting Input Select Auto DDC/CI Resolution : 3840(H)x2160(V) SDR Off Timer Reset H. Frequency : 135 KHz Image Ratio Wide V. Frequency : 60 Hz Input Select Auto / HDMI1 / HDMI2 / Select Input Signal Source. -
Page 24: Exit
Exit Luminance Color Setup Picture Boost OSD Setup PIP Setting Game Setting Extra Exit Exit Exit the main OSD... -
Page 25: Led Indicator
LED Indicator Status LED Color Full Power Mode White Orange... -
Page 26: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust. -
Page 27: Specification
Specification Main specifications Model name U32V5N Driving system TFT Color LCD Viewable Image Size 80.0cm diagonal Panel Pixel pitch 0.18159 (H)mm x 0.18159 (V) mm Display Color 1.07B Colors Horizontal scan range 30k-140kHz Horizontal scan Size(Maximum) 697.306 mm Vertical scan range... -
Page 28: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION (±1Hz) FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188 800x600@75Hz 46.875 1024x768@60Hz 48.363 60.004 1024x768@70Hz 56.476 70.069 1024x768@75Hz 60.023 75.029 1280x1024@60Hz 63.981 60.020 SXGA 1280x1024@75Hz 79.976 75.025... -
Page 29: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 30: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
