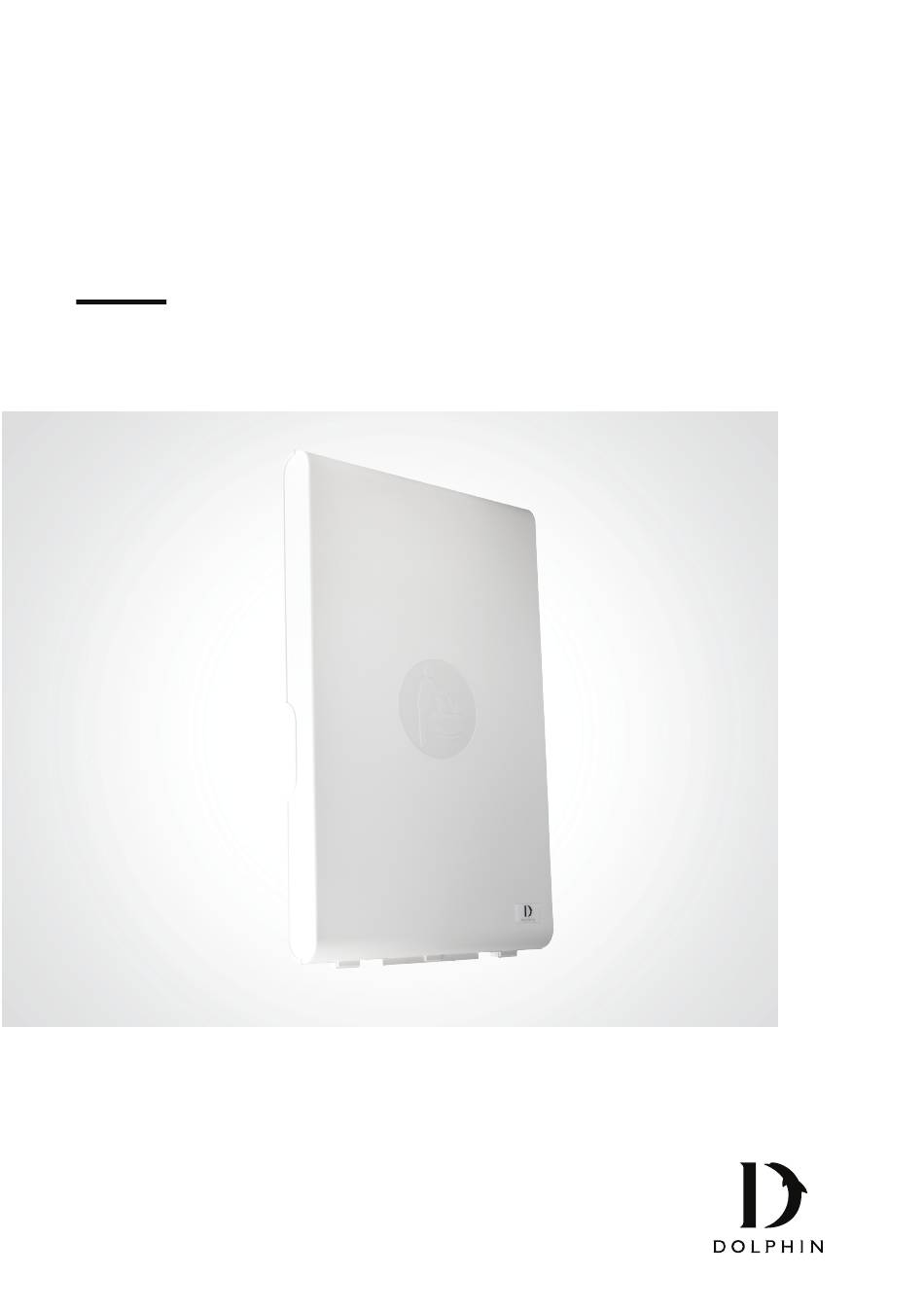

- Page 1 BC200EV DOLPHIN VERTICAL BABY CHANGING UNITS I N S TA L L AT I O N A N D S A F E T Y I N S T R U C T I O N S February 2024...
-
Page 2: Before You Begin
Always place the baby in the centre of the changing station. › The baby changing station is designed to be used without any pillow. Please do not use pillow or any other device that could affect the baby placement on the changing station. | Dolphin Solutions | 2 BC200EV... -
Page 3: Installation Instructions
Four blunt Philips screws (DIN7985 A2 M4x8 mm) to fasten the liner dispenser to the metal wall structure Four flat washers (DIN125 M4 A2) to be mounted with four blunt Philips screws (M4x8 mm) to fasten the liner dispenser | Dolphin Solutions | 3 BC200EV... - Page 4 The recommended installation height is 800 mm from the ground to the lowest part of the changing station. The following sketch shows the height at which the holes should be made in order for the changing station to be installed at the recommended height: | Dolphin Solutions | 4 BC200EV...
- Page 5 Installation according to ADA regulations. If it is required that the installation complies with the ADA regulations (USA), the installation should be made taking into account the following installation dimensions. | Dolphin Solutions | 5 BC200EV...
- Page 6 Put the changing station back on the top two screws and fix the structure to the wall with the four Ø6.3x70 mm screws and the four DIN125 M8 washers of the lower holes, then fully tighten the top two screws, the distribution of the components is shown in the following figure: | Dolphin Solutions | 6 BC200EV...
- Page 7 Due to the problems posed by installations on this type of walls, with regard to fixing, it is recommended that the installation is carried out by technicians specialized in installations on this type of walls. Dolphin Solutions is not responsible for the installation of its changing stations on plasterboard or hollow walls.
- Page 8 In summary, it is very important to verify, once the installation of the baby changing station is complete, that it is in perfect condition to be used without any problems. | Dolphin Solutions | 8 BC200EV...
- Page 9 Remember that any additional component or spare par t required for the baby changing station should only be purchased from the manufacturer or an authorized distributor. COMPONENT Label Shock absorber BC200EV Lock + key Protective liners Shock absorber | Dolphin Solutions | 9 BC200EV...
- Page 10 4 fixing screws are tightened with their respective washers. › Inspect the label: if it is missing, damaged, illegible or not properly attached, a new one should be placed. | Dolphin Solutions | 10 BC200EV...
- Page 11 Clean all plastic pieces of the changing station using antibacterial soap. › On the BC200EV model, avoid contacting the stainless steel front with the antibacterial soap; it has to be cleaned with a standard stainless steel cleaner and a soft cloth.
