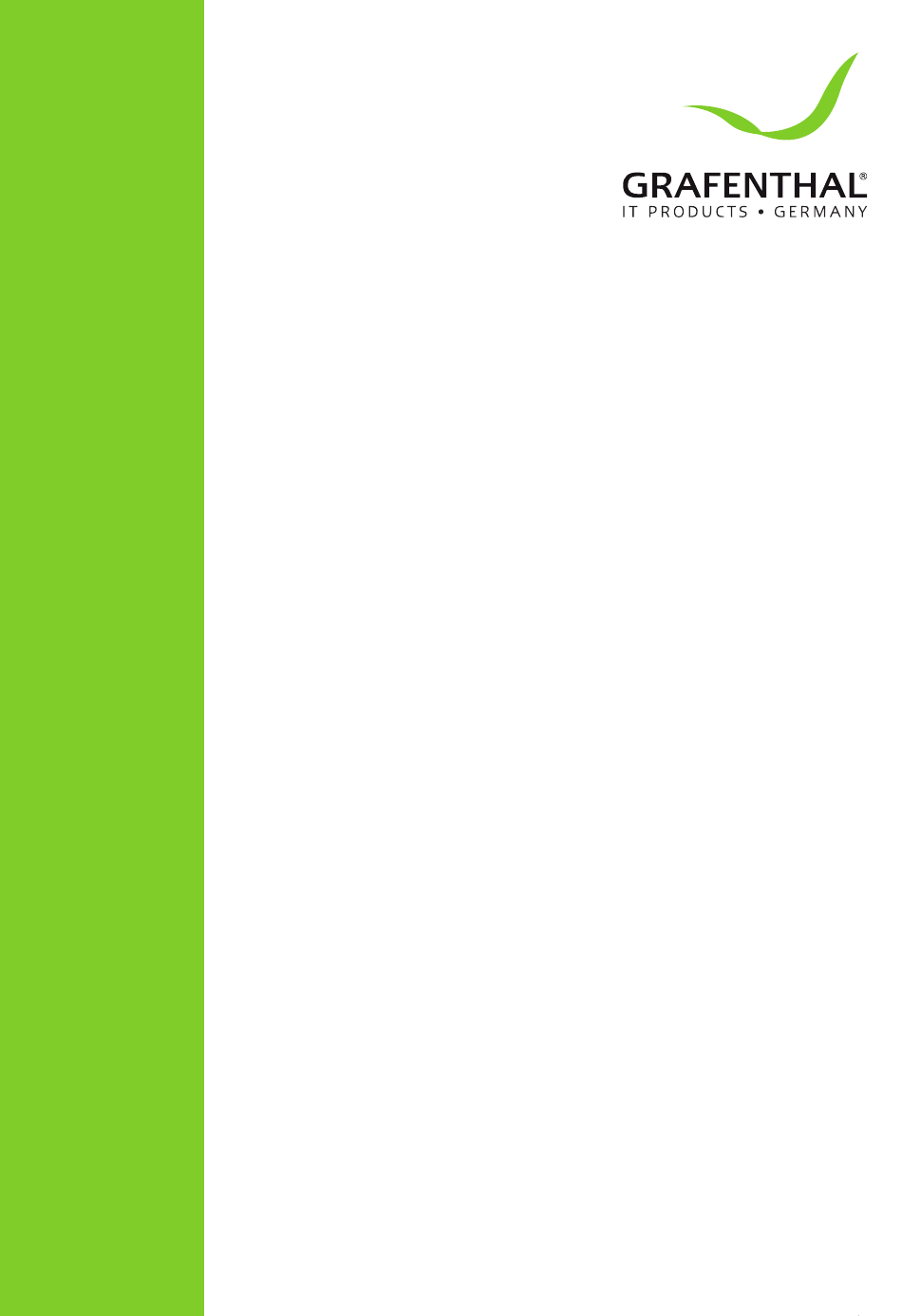

  • Page 1 Handbuch GRAFENTHAL W1900 S2...
  • Page 2 GRAFENTHAL has been advised of the possibility of such damages arising from any defect or error in this manual or product.

  • Page 3: Table Of Contents

    Operation Safety ..................... viii About this guide ........................ix Chapter 1: Product Introduction System package contents..................1-2 Serial number label ....................1-2 W1900 S2 specifications summary ..............1-3 Front panel features .....................1-5 Rear panel features ....................1-6 Internal features ....................1-7 LED information .....................1-8 1.7.1 Front panel LEDs ..................1-8...
  • Page 4 Contents Chapter 3: Motherboard Information Motherboard layout ....................3-2 Chapter 4: BIOS Setup Knowing BIOS ......................4-2 BIOS setup program ....................4-3 4.2.1 EZ Mode ....................4-4 4.2.2 Advanced Mode ..................4-5 4.2.3 QFan Control ..................4-8 4.2.4 EZ Tuning Wizard ................4-10 My Favorites ......................4-12 Main menu ......................
  • Page 5 Contents Chapter 5: RAID Configuration RAID configurations .....................5-2 5.1.1 RAID definitions ...................5-2 5.1.2 Installing Serial ATA hard disks ............5-3 ® 5.1.3 Intel Rapid Storage Technology in UEFI BIOS .......5-3 ® 5.1.4 Intel Rapid Storage Technology Option ROM utility....5-7 Creating a RAID driver disk ................5-11 ®...

  • Page 6: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.

  • Page 7: Reach

    Australia statement notice From 1 January 2012 updated warranties apply to all GRAFENTHAL products, consistent with the Australian Consumer Law. For the latest product warranty details please visit GRAFENTHAL website. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

  • Page 8: Safety Information

    Safety information Electrical Safety • Before installing or removing signal cables, ensure that the power cables for the system unit and all attached devices are unplugged. • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.

  • Page 9: About This Guide

    About this guide Audience This user guide is intended for system integrators, and experienced users with at least basic knowledge of configuring a server. Contents This guide contains the following parts: Chapter 1: Product Introduction This chapter describes the general features of the server, including sections on front panel and rear panel specifications.
  • Page 10 NOTE: Tips and additional information to help you complete a task. References Refer to the following sources for additional information, and for product and software updates. GRAFENTHAL websites The GRAFENTHAL websites worldwide provide updated information for all GRAFENTHAL hardware and software products. Refer to the GRAFENTHAL contact information.

  • Page 11: Chapter 1: Product Introduction

    Chapter 1: Product Introduction Product Introduction This chapter describes the general features of the server, including sections on front panel and rear panel specifications.

  • Page 12: System Package Contents

    12 characters such as xxS0xxxxxxxx shown as the figure below. With the correct serial number of the product, GRAFENTHAL Technical Support team members can then offer a quicker and satisfying solution to your problems.
  • Page 13 1.3 W1900 S2 specifications summary The GRAFENTHAL W1900 S2 is a workstation featuring the GRAFENTHAL E3-Pro V5 server board. ® ® LGA1151 socket for Intel Xeon E3-1200 v6/v5 series, 7th/6th ® ® ® Generation Intel Core , Pentium , and Celeron Processors...

  • Page 14: W1900 S2 Specifications Summary

    2 x USB 2.0 (front) (optional switch to card reader) Windows 10 64-bit ® OS Support * Refer to http://www.GRAFENTHAL.de/ for the latest OS support. Dimension (HH x WW x DD) 423 mm x 190 mm x 435 mm Net Weight Kg (CPU, DRAM & HDD not inclu 12.65 Kg...

  • Page 15: Front Panel Features

    Front panel features The W1900 S2 workstation features a simple yet stylish front panel design. The power and reset buttons, LED indicators, optical drive, and USB ports are all conveniently located at the front panel for easy access. Optical Drive (Optional) Empty 5.25-inch bay...

  • Page 16: Rear Panel Features

    Rear panel features The rear panel includes a slot for the motherboard rear I/O ports, expansion slots, a vent for the system fan, and the power supply module. Single power supply Power connector PS/2 Mouse port PS/2 keyboard port USB 2.0 ports 120 mm x 120 mm system fan vents USB 3.0...

  • Page 17: Internal Features

    Internal features The GRAFENTHAL W1900 S2 Pedestal server system includes the basic components as shown: Power supply unit 120 mm x 120 mm system fan (optional) GRAFENTHAL E3-PRO V5 Server Board Expansion card locks Optical drive 1 x 5.25-inch drive bay Front I/O board (hidden) 3 x 3.5-inch Internal HDD bays...

  • Page 18: Led Information

    LED information 1.7.1 Front panel LEDs Smart Card SD/MMC/MS HDD Access LED Power LED Smart Card SD/MMC/MS Icon Display status Description Display/Port SPDIF OUT HDMI Power LED System power ON No activity HDD Access LED Read/write data into the HDD Blinking USB 3.1 1.7.2...

  • Page 19: Chapter 2: Hardware Setup

    Chapter 2: Hardware Setup Hardware Setup This chapter lists the hardware setup procedures that you have to perform when installing system components. It includes description of the jumpers and connectors on the motherboard.

  • Page 20: Chassis Cover

    Chassis cover Removing 2.1.1 the side cover • Ensure that you unplug the power cord before removing the side cover. • Take extra care when removing the side cover. Keep your fingers from components inside the chassis that can cause injury, such as the CPU fan, rear fan, and other sharp- edged parts.
  • Page 21 Slightly pull the side cover toward the rear just enough to detach it from the chassis. Remove the cover and set it aside. GRAFENTHAL W1900 S2...

  • Page 22: Cpu Installation

    PnP cap/socket contacts/motherboard components. • Keep the cap after installing the motherboard. GRAFENTHAL will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1151 socket.
  • Page 23 Load lever Retention tab CPU notches Gold triangle Alignment mark Alignment Load plate Load lever Load lever Retention tab Retention lock GRAFENTHAL W1900 S2...

  • Page 24: Cpu Heatsink And Fan Assembly Installation

    CPU heatsink and fan assembly installation Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan, if necessary. To install the CPU heatsink and fan assembly Chapter2: HardwareSetup...

  • Page 25: System Memory

    A DDR4 module is notched differently from a DDR, DDR2 or DDR3 module. DO NOT install a DDR, DDR2 or DDR3 memory module to the DDR4 slot. Channel Sockets DIMM_A1 DIMM_A2 Channel A DIMM_A1 & DIMM_A2 DIMM_B1 Channel B DIMM_B1 & DIMM_B2 DIMM_B2 Recommended memory configurations GRAFENTHAL W1900 S2...
  • Page 26 Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. • For system stability, use a more efficient memory cooling system to support a full memory load (4 DIMMs). • Visit the GRAFENTHAL website for the latest QVL. Chapter2: HardwareSetup...

  • Page 27: Installing A Dimm On A Single Clip Dimm Socket

    Press the retaining clip outward to unlock the DIMM. Remove the DIMM from the socket. Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might get damaged when it flips out with extra force. GRAFENTHAL W1900 S2...

  • Page 28: Front Panel Cover

    Front panel cover Before you can install a 5.25-inch drive, you should first remove the front panel cover. Ensure to unplug the power cable before installing or removing any system components. Failure to do so may cause damage to the motherboard and other system components! 2.5.1 Removing the front panel cover To remove the front panel cover:...

  • Page 29: Inch Drives

    Remove the metal cover of the bay Metal cover you intend to use. Take extra care when removing the metal cover. Use tools such as a screw driver to bend and remove the metal cover to avoid physical injury. GRAFENTHAL W1900 S2 2-11...
  • Page 30 Prepare the 5.25-inch drive. Insert and carefully push the drive into the bay until its screw holes align with the holes on the bay. Push the bay locks to secure the drive in place. Bay locks Connect the SATA cable to the SATA connector of the drive.

  • Page 31: Hard Disk Drives (Hdd)

    HDD cage lock HDD cage Align and insert the 3.5-inch HDD into the drive bay ensuring that the screw holes on the HDD matches the screw holes on the HDD cage. Screw hole (HDD cage) Screw holes (HDD) GRAFENTHAL W1900 S2 2-13...
  • Page 32 Secure the 3.5-inch HDD to the HDD cage using the bundled set of screws. Swing the HDD cage inwards until it clicks back into place. Connect the SATA cable and SATA power cable to the 3.5-inch HDD. 2-14 Chapter2: HardwareSetup...
  • Page 33 Align and insert the 2.5-inch HDD/SSD into the drive bay as shown. Push it all the way until its screw holes align with the holes on the drive bay. HDD cage lock 2.5-inch HDD/SSD HDD cage Matching screw holes GRAFENTHAL W1900 S2 2-15...
  • Page 34 Secure the 2.5-inch HDD/SSD to the HDD cage using the bundled set of screws. Swing the HDD cage inwards until it clicks back into place. Connect a SATA cable and a SATA power cable to the 2.5-inch HDD/ SSD. 2-16 Chapter2: HardwareSetup...

  • Page 35: Expansion Slots

    PCI3 SPDIF_OUT USB1112 USB3_12 AAFP PANEL Slot No. Slot Description PCIe 3.0/2.0 x1_1 slot PCIe 3.0/2.0 x16_1 slot PCI1 slot PCI2 slot PCIe 3.0/2.0 x16_2 slot (max at x4 mode) PCIe 3.0/2.0 x1_2 slot PCI3 slot GRAFENTHAL W1900 S2 2-17...

  • Page 36: Installing An Expansion Card

    2.8.1 Installing an expansion card To install an expansion card: Lay the system on its side on a flat, stable surface. Edge of the PCI-E latch Press the PCI-E latch (A), hold it by its edge then lift it towards the rear (B).
  • Page 37 Align and insert the expansion card into Expansion card PCI-E slot the PCI-E slot. Lift the PCI-E latch inwards until it clicks into place securing the expansion card to the chassis. PCI-E latch (Optional) Replace the screw of the metal bracket. GRAFENTHAL W1900 S2 2-19...
  • Page 38 2.8.2 Con iguring an expansion card PCI Express operating mode VGA configuration PCIe 3.0 x16_1 (gray) PCIe 3.0 x16_2 x16 (Recommended for single Single VGA/PCIe card VGA card) Dual VGA/PCIe cards • In single VGA card mode, use the PCIe 3.0 x16_1 slot (gray) for a PCI Express x16 graphics card to get better performance.

  • Page 39: Installing M.2 (Ngff) Cards

    Stand screw • Please pay attention when removing the screw, the stand screw might be removed together with it. • Ensure that the M.2 card is positioned between the screw and the stand screw before securing it. GRAFENTHAL W1900 S2 2-21...

  • Page 40: System Fan

    System fan This section describes how to remove the system fan in the event that you need to install or remove previously installed or new system components, or when the system fan needs to be replaced because it was damaged or became defective. To remove the system fan: Disconnect the system fan cable from the CHA_FAN1 connector on the...

  • Page 41: Motherboard Rear And Audio Connection

    Activity/Link LED Speed LED Status Description Status Description No link 10Mbps connection Orange Linked ORANGE 100Mbps connection Orange (Blinking) Data activity GREEN 1Gbps connection LAN port Orange (Blinking Ready to wake then steady) up from S5 mode GRAFENTHAL W1900 S2 2-23...
  • Page 42 ** Audio 2.1, 4.1, 5.1 or 7.1-channel configuration Headset Port 4.1-channel 5.1-channel 7.1-channel 2.1-channel Light Blue Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out (Rear panel) Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out Pink (Rear panel) Mic In Mic In...

  • Page 43: Chapter 3: Motherboard Information

    Chapter 3: Motherboard Information Motherboard Information This chapter includes the motherboard layout and brief descriptions of the jumpers and internal connectors.

  • Page 44: Motherboard Layout

    Motherboard layout 21.8cm(8.6in) KBMS CPU_FAN DIGI +VRM EATX12V USB910 USB78 LGA1151 USB3_56 Place this side towards the rear LAN_USB3_34 of the chassis CHA_FAN1 AUDIO 2280 2260 2242 PCIEX1_1 PCIEX16_1 8111H PCI1 1083 Intel ® PCI2 C232 PCIEX16_2 Super 128Mb BIOS PCIEX1_2 BATTERY ALC887...
  • Page 45 12. Serial Port Connector (10-1 pin COM) 13. Front panel audio connector (10-1 pin AAFP) 14. Digital audio connector (4-1 pin SPDIF_OUT) 15. PCI slots 16. PCI Express 3.0/2.0 x1 slots 17. PCI Express 3.0/2.0 x16 slots GRAFENTHAL W1900 S2...
  • Page 46 CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN1/2) Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector. Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the CPU_FAN CHA_FAN...
  • Page 47 SATA Mode M.2 > PCIe X16_2 connector. • When using Intel Desktop Responsiveness technologies ® with PCIe M.2 device, ensure to set up the Windows UEFI ® operating system under RAID mode. GRAFENTHAL W1900 S2...
  • Page 48 Clear RTC RAM (2-pin CLRTC) This header allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.
  • Page 49 Serial port connector (10-1 pin COM) This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis. PIN 1 GRAFENTHAL W1900 S2...
  • Page 50 Front panel audio connector (10-1 pin AAFP) This connector is for a chassis-mounted front panel audio I/ O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector. AAFP PIN 1 •...

  • Page 51: Chapter 4: Bios Setup

    Chapter 4: BIOS Setup BIOS Setup This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

  • Page 52: Knowing Bios

    Knowing BIOS The new GRAFENTHAL UEFI BIOS is a Unified Extensible Interface that complies with UEFI architecture, offering a user-friendly interface that goes beyond the traditional keyboard- only BIOS controls to enable a more flexible and convenient mouse input. You can easily navigate the new UEFI BIOS with the same smoothness as your operating system.

  • Page 53: Bios Setup Program

    The BIOS setup program does not support the Bluetooth devices. BIOS menu screen The BIOS Setup program can be used under two modes: EZ Mode and Advanced Mode. You can change modes from Setup Mode in Boot menu or by pressing the <F7> hotkey. GRAFENTHAL W1900 S2...

  • Page 54: Ez Mode

    4.2.1 EZ Mode By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ Mode provides you an overview of the basic system information, and allows you to select the display language, system performance, mode and boot device priority. To access the Advanced Mode, select Advanced Mode or press the <F7>...

  • Page 55: Advanced Mode

    Scroll bar Pop-up Menu Menu bar Language MyFavorite(F3) Qfan Control(F6) Quick Note (F9) Hot Keys Go back to EZ Mode Menu items General help Last modified settings Search on the FAQ Displays the CPU temperature, CPU, and memory voltage output GRAFENTHAL W1900 S2...
  • Page 56 Menu bar The menu bar on top of the screen has the following main items: My Favorites For saving the frequently-used system settings and configuration. Main For changing the basic system configuration Ai Tweaker For changing the overclocking settings Advanced For changing the advanced system settings For displaying the system temperature, power status, and changing the Monitor...
  • Page 57 Search on FAQ Move your mouse over this button to show a QR code, scan this QR code on your mobile device to connect to the BIOS FAQ web page of the GRAFENTHAL support website. Hot keys This button above the menu bar contains the navigation keys for the BIOS setup program.

  • Page 58: Qfan Control

    4.2.3 QFan Control The QFan Control allows you to set a fan profile or manually configure the operating speed of your CPU and chassis fans. Click to select a fan to be Click to activate Click to activate DC Mode configured PWM Mode Select a profile to apply to...
  • Page 59 To configure your fans: Select the fan that you want to configure and to view its current status. Click and drag the speed points to adjust the fans’ operating speed. Click Apply to save the changes then click Exit (ESC). GRAFENTHAL W1900 S2...

  • Page 60: Ez Tuning Wizard

    4.2.4 EZ Tuning Wizard EZ Tuning Wizard allows you to easily set RAID in your system using this feature. Creating RAID To create RAID: Press <F11> on your keyboard or click from the BIOS screen to open EZ Tuning Wizard screen. Click Next.
  • Page 61 Speed (RAID 5). After selecting the type of RAID, click Next then click Yes to continue the RAID setup. After the RAID setup is done, click Yes to exit the setup then click OK to reset your system. GRAFENTHAL W1900 S2 4-11...

  • Page 62: My Favorites

    My Favorites My Favorites is your personal space where you can easily save and access your favorite BIOS items. My Favorites comes with several performance, power saving, and fast boot related items by default. You can personalize this screen by adding or removing items. 4-12 Chapter 4: BIOS Setup...
  • Page 63 • Configuration items such as Memory SPD Information, system time and date. Click Exit (ESC) or press <Esc> key to close Setup Tree Map screen. Go to My Favorites menu to view the saved BIOS items. GRAFENTHAL W1900 S2 4-13...

  • Page 64: Main Menu

    Main menu The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup program. The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings. Security The Security menu items allow you to change the system security settings.

  • Page 65: Advanced Menu

    The items in this menu allow you to change the ASPM for PCH and SA PCI Express. 4.6.3 System Agent (SA) Configuration The items in this menu allow you to adjust the Link Speed for PEG Port and Multi-Monitor. GRAFENTHAL W1900 S2 4-15...

  • Page 66: Pch Configuration

    4.6.4 PCH Configuration The items in this menu allow you to adjust the PCH PCI Express speed. PCI Express Configuration This item allows you to configure the PCI Express slots. PCIe Speed This item allows your system to automatically select the PCI Express port speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] 4.6.5 PCH Storage Configuration...

  • Page 67: Usb Configuration

    This item allows you to switch off some power at S4+S5 or S5 to get the system ready for ErP requirement. When set to [Enabled], all other PME options are switched off. Configuration options: [Disabled] [Enable(S4+S5)] [Enable(S5)] GRAFENTHAL W1900 S2 4-17...

  • Page 68: Network Stack Configuration

    4.6.9 Network Stack Configuration The items in this menu allow you to configure Ipv4 / Ipv6 PXE support. 4.6.10 Intel TXT Information This menu displays the Intel TXT information. 4.6.11 HDD/SSD SMART Information This menu displays the SMART information of the connected devices. NVM Express devices do not support SMART information.
  • Page 69 ® ® • To access Windows OS in Safe Mode, press <F8> after POST (Windows 8 not supported). • To select the boot device during system startup, press <F8> when the GRAFENTHAL Logo appears. GRAFENTHAL W1900 S2 4-19...

  • Page 70: Tool Menu

    Boot Override These items displays the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device. Tool menu The Tool menu items allow you to configure options for special functions.

  • Page 71: Exit Menu

    <Esc>, a confirmation window appears. Select Yes to discard changes and exit. Launch EFI Shell from filesystem device This item allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of the available filesystem devices. GRAFENTHAL W1900 S2 4-21...

  • Page 72: Updating Bios

    4.11 Updating BIOS The GRAFENTHAL website publishes the latest BIOS versions to provide enhancements on system stability, compatibility,and performance. However, BIOS updating is potentially risky. If there is no problem using the current version of BIOS, DO NOT manually update the BIOS.

  • Page 73: Ez Flash 3

    Press <Tab> to switch to the Folder Info field. Press the Up/Down arrow keys to find the BIOS file, and then press <Enter> to perform the BIOS update process. Reboot the system when the update process is done. GRAFENTHAL W1900 S2 4-23...
  • Page 74 • This function can support devices such as a USB flash disk with FAT 32/16 format and single partition only. • DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure! Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu.

  • Page 75: Crashfree Bios 3

    The BIOS file in the motherboard support DVD may be older than the BIOS file published on the GRAFENTHAL official website. If you want to use the newer BIOS file, download the file at https://www.GRAFENTHAL.de and save it to a USB flash drive.

  • Page 76: Chapter 5: Raid Configuration

    Chapter 5: RAID Configuration RAID Configuration This chapter provides instructions for setting up, creating, and configuring RAID sets using the available utilities.

  • Page 77: Raid Configurations

    5.1 RAID configurations The motherboard supports Intel Rapid Storage Technology enterprise Option ROM Utility ® with RAID 0, RAID 1, RAID 10, and RAID 5 support. If you want to install a Windows operating system to a hard disk drive included in a RAID ®...

  • Page 78: Installing Serial Ata Hard Disks

    Rapid Storage Technology menu. ® Refer to Chapter 4 for details on entering and navigating through the BIOS Setup. Due to chipset limitation, when SATA ports are set to RAID mode, all SATA ports run at RAID mode together. GRAFENTHAL W1900 S2...
  • Page 79 Creating a RAID set To create a RAID set: From the Intel Rapid Storage Technology menu, select Create RAID Volume and ® press <Enter>. The following screen appears: When the Name item is selected, enter a name for the RAID set and press <Enter>. When the RAID Level item is selected, press <Enter>...
  • Page 80 When the Capacity (MB) item is selected, enter the RAID volume capacity that you want and press <Enter>. The default value indicates the maximum allowed capacity. When the Create Volume item is selected, press <Enter> to create the RAID volume and return to the Intel Rapid Storage Technology menu. ® GRAFENTHAL W1900 S2...
  • Page 81 Deleting a RAID set Be cautious when deleting a RAID set. You will lose all data on the hard disk drives when you delete a RAID set. To delete a RAID set: From the Intel Rapid Storage Technology menu, select the RAID volume you want to ®...

  • Page 82: Intel ® Rapid Storage Technology Option Rom Utility

    The RAID BIOS setup screens shown in this section are for reference only and may not exactly match the items on your screen. The utility supports maximum four hard disk drives for RAID configuration. GRAFENTHAL W1900 S2...
  • Page 83 Creating a RAID set To create a RAID set: From the utility main menu, select 1. Create RAID Volume and press <Enter>. The following screen appears: Name: Volume 0 RAID Level: aaaaaaaaaaaaaaa Disks: dssdsdsds Strip Size:aaaaaaaaaaaaaaaa Capacity:aaaaaaaaaaaaaa Sync:aaaaaaaaaa Create volume [HELP] Enter a unique volume name that has no special characters and is 16 characters or less.
  • Page 84 ALL DATA ON SELECTED DISKS WILL BE LOST. Are you sure you want to create this volume? (Y/N) Press <Y> to create the RAID volume and return to the main menu, or <N> to go back to the CREATE VOLUME menu. GRAFENTHAL W1900 S2...
  • Page 85 Deleting a RAID set Be cautious when deleting a RAID set. You will lose all data on the hard disk drives when you delete a RAID set. To delete a RAID set: From the utility main menu, select 2. Delete RAID Volume and press <Enter>. The following screen appears: [DELETE VOLUME MENU] Name...

  • Page 86: Creating A Raid Driver Disk

    RAID driver from the support DVD to the USB flash drive. To set up a Windows UEFI operating system under RAID mode, ensure to load the UEFI ® driver for your optical drive. GRAFENTHAL W1900 S2 5-11...

  • Page 87: Appendix

    Appendix Appendix...

  • Page 88: Block Diagram

    block diagram Appendix...
