Summary of Contents for SeasonsComfort 137180

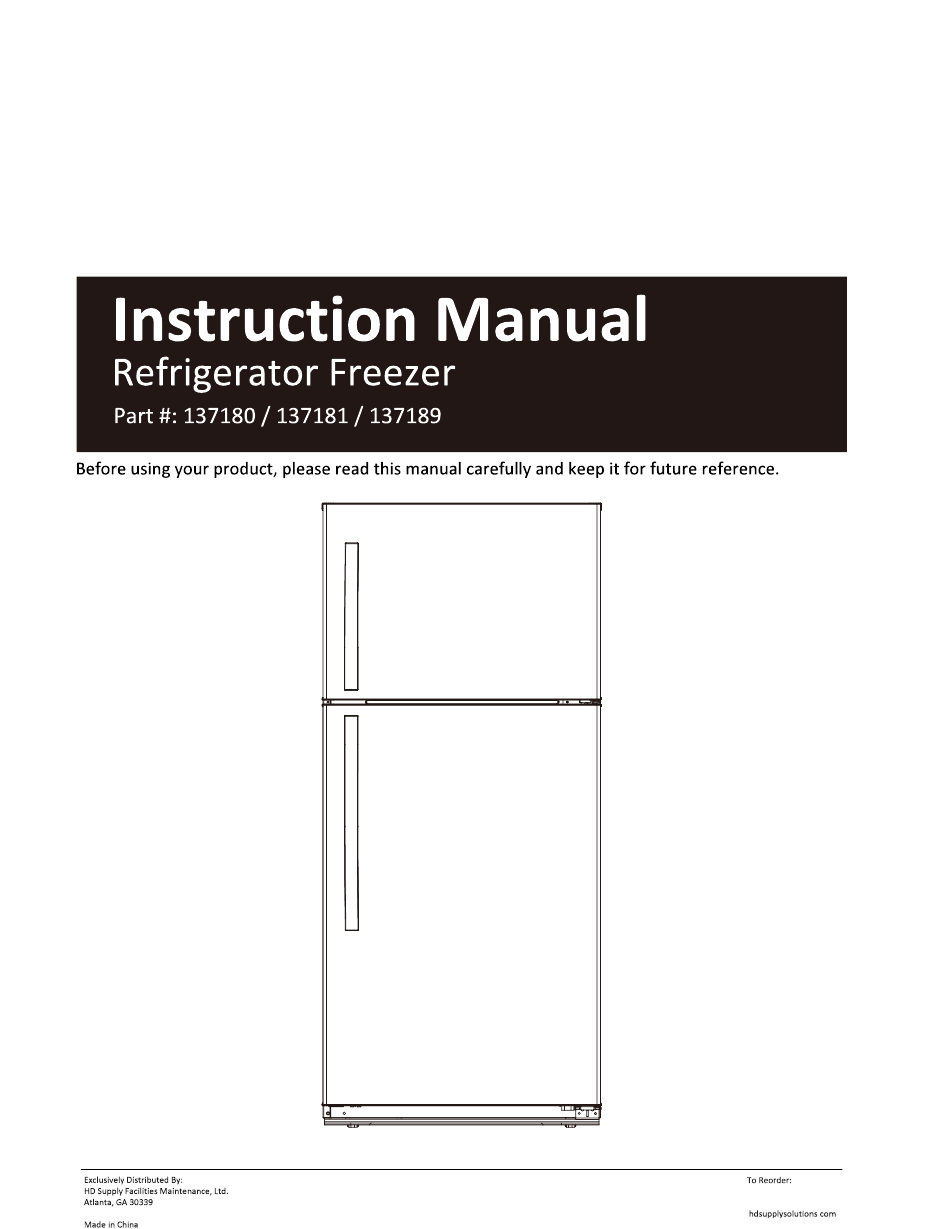

  • Page 1 1-800-431-3000 © 2020...

  • Page 3: Safety Warnings

    1. SAFETY WARNINGS Warning: Ris ammabl e materials RECOMMENDATIONS: This appliance is intended to be used in household and similar such kitchen areas in shops, and other working environments; farmhouses and by clients in hotels, motels and other type environments; bed and breakfast type environments; If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or Do not store explosive substances such as aerosol cans with a propellant in this...

  • Page 4: Installation

    2. INSTALLATION 2.2 Door Handle Install onal) The hole The screw...
  • Page 5 Reversing the Parts included with the hinge kit: Parts already mounted on the door (as shipped): Center right hinge Right top Top right hinge Center le hinge Le top hinge cover Top le hinge hinge cover Screws (4) Upper door Right door-open Door block Plug (4)
  • Page 7 12 Remove the right upper door self-locking block and the right Allen wrench. Remove the handles.

  • Page 8: Door Space Requirements

    18 Screw the four Phillips head screws into the holes on the right side of the door. 2.4 Door Space Requirements The unit's door must be able to open fully as shown. W 50.8 inc .5 inch 2.5 Leveling The Unit To do this adjust the two leveling feet at the front of the unit.

  • Page 9: Interior Accessories

    2.7 Before Using Your Unit Before Plugging in You must check that you have a socket which is compa ble with the plug supplied with the unit. Before Turning On! Do not turn on un l two hours a er moving the unit. 2.8 Interior Accessories Various glass or plas c storage shelves are included with your appliance - models have...
  • Page 10 supply store. Coil enough tubing at the back of the unit to allow movement for cleaning. Unplug the refrigerator. To eliminate the danger of electric shock during installa on, you must unplug the refrigerator from its electrical outlet. 1. Ice Maker 2.
  • Page 11 Unplug refrigerator from wall outlet. Remove ice tray rack from freezer. The frozen shelf moved to the next partition. Remove plugs from inside freezer compartment with putty knife. Peel off label covering ice maker hole. With needle nose pliers, remove foam from hole. Push water inlet tube into small hole on back of refrigerator.
  • Page 12 Install adjustable leveling bracket (7) on bottom of ice maker with screw (6). DO NOT tighten 10 Start two, long, ice maker mounting screws (5) into freezer wall. Turn each screw five turns 11 With ice maker in one hand, plug ice maker connector into connector mounted on top 12 Mount ice maker onto two screws (5) you installed Step 12.
  • Page 13 13 Adjust leveling bracket (7) to level ice maker (1). Ice maker is level when gap between freezer 14 Reinstall freezer shelf in lower position. Set ice container (2) on shelf. 15 Locate factory punched holes at bottom right corner of rear panel. Holes are only drilled 16 Connect wiring harness to water valve.
  • Page 14 18 Secure plastic water tubing to rear of cabinet with two plastic clamps (9). Unplug the refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet. IMPORTANT: Ensure that your water supply line connections comply with all local plumbing codes. Before Installing The Water Supply Line, You Will Need Disconnect refrigerator from electric power supply.
  • Page 15 Slide brass compression nut, then ferrule (sleeve), onto water supply line, as shown. Push water supply line into water valve inlet as far as it will go (1/4 inch). Slide ferrule (sleeve) into valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench;...

  • Page 16: Product Overview

    3. PRODUCT OVERVIEW Door Shelf Control Dial Door Shelf Temperature control panel Oil Box Adjustable Glass Shelves Salad Bin Cover Salad Bin Door Shelf Levelling Feet *All images in this instruc on manual are for indica on only; please refer to your individual unit for details. 4.

  • Page 17: Shift Setting

    Normal operation display 4.4 Shift setting Shift 5 Shift 1 Shift 2 Shift 3 Shift 4 When the fridge work , the SET refrigerator into standby function mode, standby indicator lights lit, all loads stop work; When freezer in standby , short press SET button, refrigerator...

  • Page 18: Maintenance

    5. CLEANING 5. Defrosting Auto-defrost for Frost-free Refrigerator 5. Cleaning the Interior and the Exterior of the Unit 5. Cleaning Tips 6. MAINTENANCE 6.1 Changing he Internal Light Setting the refrigerator control to off does not remove power to the light circuit. CAUTION: Light bulb may be hot.

  • Page 19: Troubleshooting

    7. Troubleshooting The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled. Whether the freezer is plugged and connected to power; Inoperation Low voltage; Failure power or tripping circuit Odorous foods should closely wrapped;...

This manual is also suitable for:

137181137189
