Summary of Contents for Aura FIREBALL-6.8

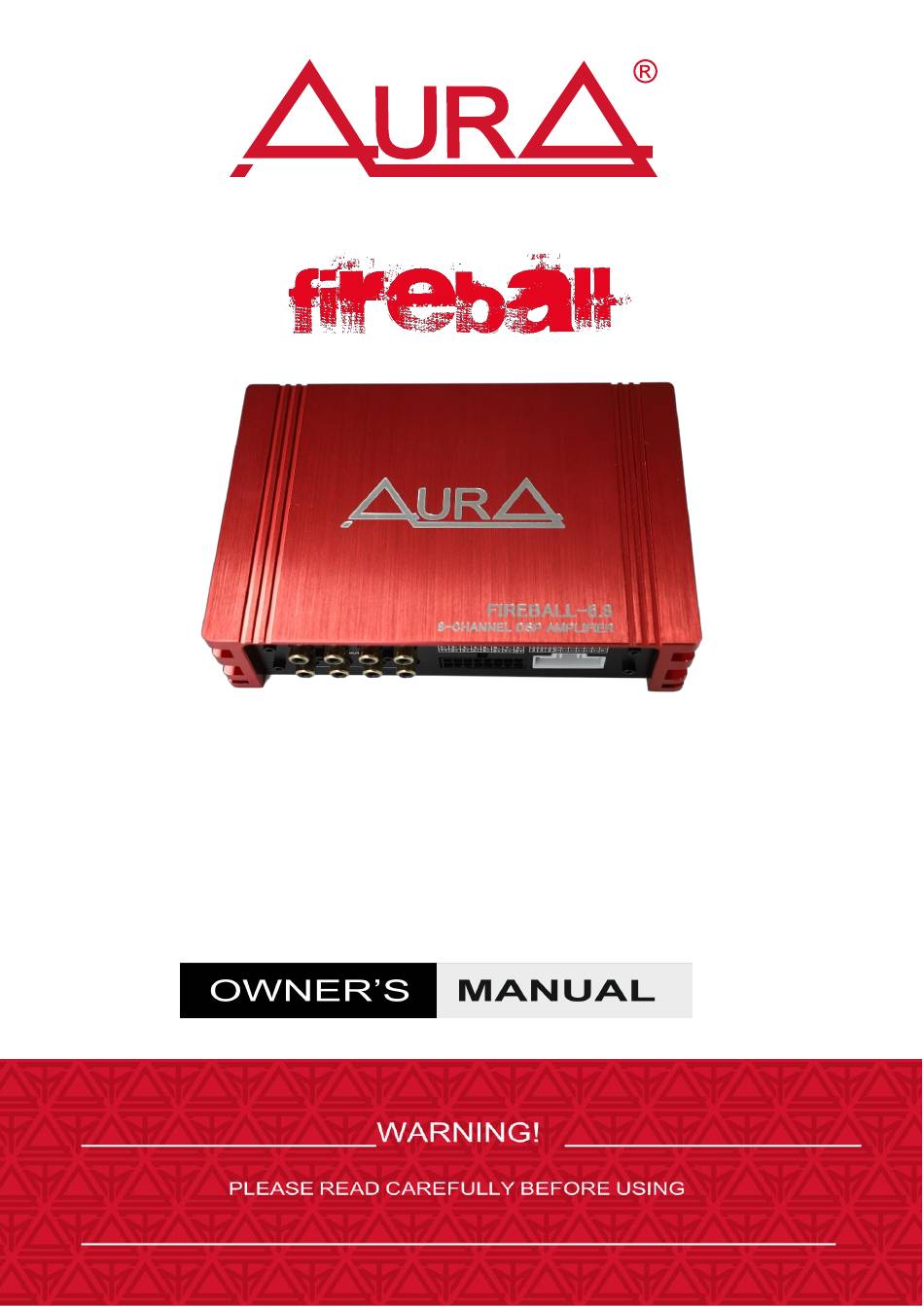

- Page 1 FIREBALL-6.8 DSP with 8-Ch Class AB Amplifier...
- Page 2 Introduction & Troubleshooting 1.Statement Thank you for purchasing DSP amplifier. We strongly recommend using the services of a professional installation studio to install the DSP amplifier. The correct configuration of the system and the qualifications of specialists will allow you to maximize the potential of your DSP amplifier, avoid unpleasant situations, as well as eliminate connection errors and possible malfunctions This manual mainly introduces the product functions, uses and operation methods of DSP auto...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS THE PURCHASED DEVICE IS ONLY SUITABLE FOR AN OPERATION WITH A 12V ON-BOARD ELECTRICAL SYSTEM OF A VEHICLE. Otherwise fire hazard, risk of injury and electric shock consists. PLEASE DO NOT MAKE ANY OPERATION OF THE SOUND SYSTEM, WHICH DISTRACT YOU FROM A SAFE DRIVING. - Page 4 DO NOT INSTALL THE DEVICE AT LOCATIONS, WHERE IT WILL BE EXPOSED TO HIGH HUMIDITY AND DUST. Install the device at a location, where it will be protected from high humidity and dust. If humidity and dust attain inside the device, malfunctions may be caused. MOUNT THE DEVICE AND OTHER COMPONENTS OF THE SOUND SYSTEM SUFFICIENTLY.
-
Page 5: Input And Output
AUDIO RMS Power: 25W * 8CH @4Ω，50W * 8CH @2Ω Frequency Response: 20Hz~20kHz DSP Processor: Cirrus Logic Signal Converter A/D : Cirrus Logic Signal Converter D/A: Cirrus Logic Bluetooth : Built in Bluetooth 5.1 INPUT AND OUTPUT High level speaker input: Low level AUX input: High level speaker output: Low Level RCA Output... - Page 6 POWER Power indicator light. Bluetooth indicator light. U disk or sound card (PC/Android/iPhone) sound source. Optical INPUT This terminal support Optical fiber input. This USB input is suited for the connection with a PC/laptop computer to manage the functions of the DSP software to set-up the DSP functions of the amplifier. REMOTE This terminal is connected with the external Remote controller(purchased separately).
-
Page 7: Speaker Output
8CH DSP RCA output. SPEAKER OUTPUT CH1-8: 8-channel speaker output. Connect here speakers (2 - 4 Ohms) according to your sound system. POWER IN AND HI INPUT With 12V power in. REM IN. 6-channel speaker input... - Page 8 Host Power speaker To computer by USB Remote control U disk/sound card Amplifier REM OUT...
- Page 9 Please download the PC software from https://www.enigmatech.co.in/amplifier-fireball computer using the given PC cable. Open the software, the Connect USB end to the main page is as follows: FUNCTIONAL AND MULTILINGUAL The PC software to control the DSP provides a clear GUI with the most important functions summarized in one menu.., EXTENSIVE FILTER SECTION Rem-out1 and Rem-out2 can be controlled from this location...
- Page 10 Main Area: 1. Source Selection 2. Scene: Load Save File or Save file 3.Options: Firmware Upgrade, Language Change 2. Mixing Set : Click on Mixing set and adjust as per each source selection. Ex Hi Level as source will display as below.
- Page 11 6. Use this area to set each channel Volume , Slope, Phase selection, Link, Time Delay. Mobile Phone App Introduction – Android and IOS. Mobile phone app can be downloaded from App Store for IOS and Android -Play Store. App name - Aura Fireball-6.8 DSP Main Page- Home Source Selection Time Delay by each...
-
Page 12: Warranty
WARRANTY This product has one year warranty . To ensure your warranty policy keep your original receipt proofing the date of purchase. Any damage to the product as a result of misuse, abuse, accident, incorrect wiring, improper installation, alteration of date code or barcode labels, revolution, natural disaster, or any sneaky stuff because someone messed up, repair or alteration outside of our factory or authorized service centers and anything else you have done that you should not have done is not covered.
