Living Spaces 2074T-60 Assembly Instruction

Caution: Please read instruction thoroughly before unpacking assembly parts. Sharp, exposed staple tips can cause
injury, therefore, for your protection, please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make
assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefuly for small parts that may have come loose inside the carton
during shipment.
3. Please do not over tighten screws or bolts.
4. Please Put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficiently.
NO
A
B
C
D
E
NOTES: DON'T FULLY TIGHTEN ANY BOLTS UNTIL LAST STEP
STEP 1
STEP 2
Assembly Instruction for
PART LIST
PART DESC
TABLE TOP
PANEL CONNECTOR
TOP LEG
BOTTOM LEG
LAZY SUSAN
C

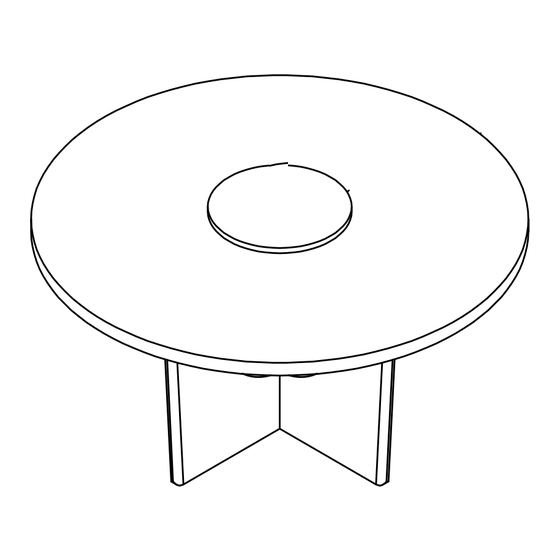

ROUND TABLE
2074T-60
Q.TY
NO
1 1
1 2
1 3
1 4
5
1
C
D
B
D
MADE IN VIETNAM
HARDWARE LIST
HARDWARE DESC
ALLEN BOLT (5/16*35mm)
ALLEN BOLT (5/16*75mm)
SPRING WASHER (5/16)
FLAT WASHER (5/16*19*1.5mm)
ALLEN KEY (M5*100mm)
5
1
3
4
X8
PAGE 1 OF 2
Q.TY
16
1
17
17
1
