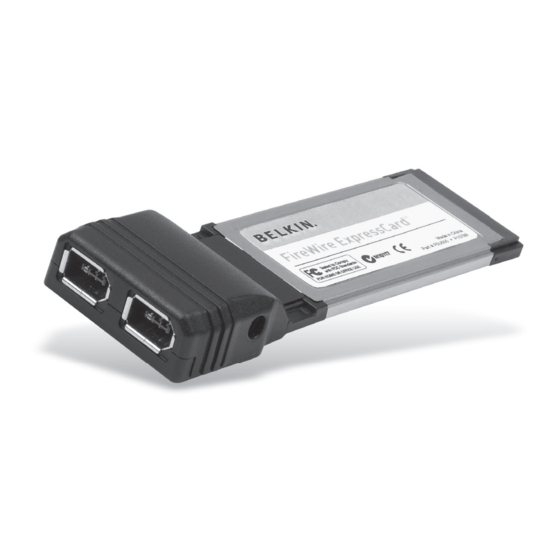

- Page 1 FireWire 800 ExpressCard ™ User Manual F5U514...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction..............1 Benefits ................. 2 System Requirements ........... 3 Package Contents............3 2. Software Setup..............4 3. Hardware Installation ............5 4. Verifying Proper Installation ........... 6 5. Troubleshooting ............... 7 6. Information ..............9... -
Page 3: Introduction
ExpressCard future-proofs your computer with technology so advanced that it exceeds the processing speed of many devices currently on the market. -
Page 4: Benefits
Specification 1.1 • Features IEEE 1394b-compliant ports at 100-, 200-, 400-, and 800Mbps • Equips 1 DC jack for using power adapter to provide 12VDC power output • Complies with IEEE 1394, 1394a, and 1394b • Allows you to connect/disconnect devices without... -
Page 5: System Requirements
Introduction System Requirements • Windows -based or Mac notebook with available ® ® ExpressCard slot • Windows 2000 and XP • Mac OS X v10.4.x and above ® Package Contents • FireWire 800 ExpressCard • CD Driver • User Manual... -
Page 6: Software Setup
1. Insert the FireWire 800 ExpressCard installation CD into your CD-ROM drive. After a few moments, the main menu automatically starts. Note: If the main CD does not auto-start, click the “Start” button and select “Run”. From the “Run” dialog box, enter “<driver>:\setup_xp2.exe” and click “OK” (where “<driver>”... -
Page 7: Hardware Installation
Hardware Installation 1. Locate your notebook’s ExpressCard bus slot(s). 2. With your notebook on, slide the ExpressCard into the unused 34mm or 54mm ExpressCard bus slot. Note: Do not plug any devices into the ExpressCard until you have completely finished the driver installation. -
Page 8: Verifying Proper Installation
1. Right-click on “My Computer” and select “Manage”. 2. Select the “Device Manager” tab. 3. Click the (+) sign next to “IEEE 1394 Bus host controllers”. The “IEEE 1394 Bus host controllers” will now include one entry that reads “OHCI IEEE 1394b Host Controller”. -
Page 9: Troubleshooting
The ExpressCard and devices connected to the computer do not work properly. Please do the following: 1. Check that all the cables you are using are the correct types, and that they are all securely connected. 2. Make sure all devices are powered on and connected to the proper power supply and source. - Page 10 Troubleshooting computer manufacturer for details). If after updating your BIOS your computer still does not detect the ExpressCard, contact your computer manufacturer for advanced support for BIOS. I cannot install the ExpressCard driver. Ensure that your Microsoft Windows operating ®...
-
Page 11: Information
F5U514 to which this declaration relates, Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 12 FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
- Page 13 This warranty gives you specific legal rights, and you may also have other rights, which may vary from state to state. Some states do not allow the exclusion or limitation of incidental, consequential, or other damages, so the above limitations...
- Page 14 +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax © 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. FireWire, Mac OS, and Mac are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. Microsoft and Windows are either registered trademarks P75226 or trademarks of Microsoft Corporation in the United States and/or other countries.
