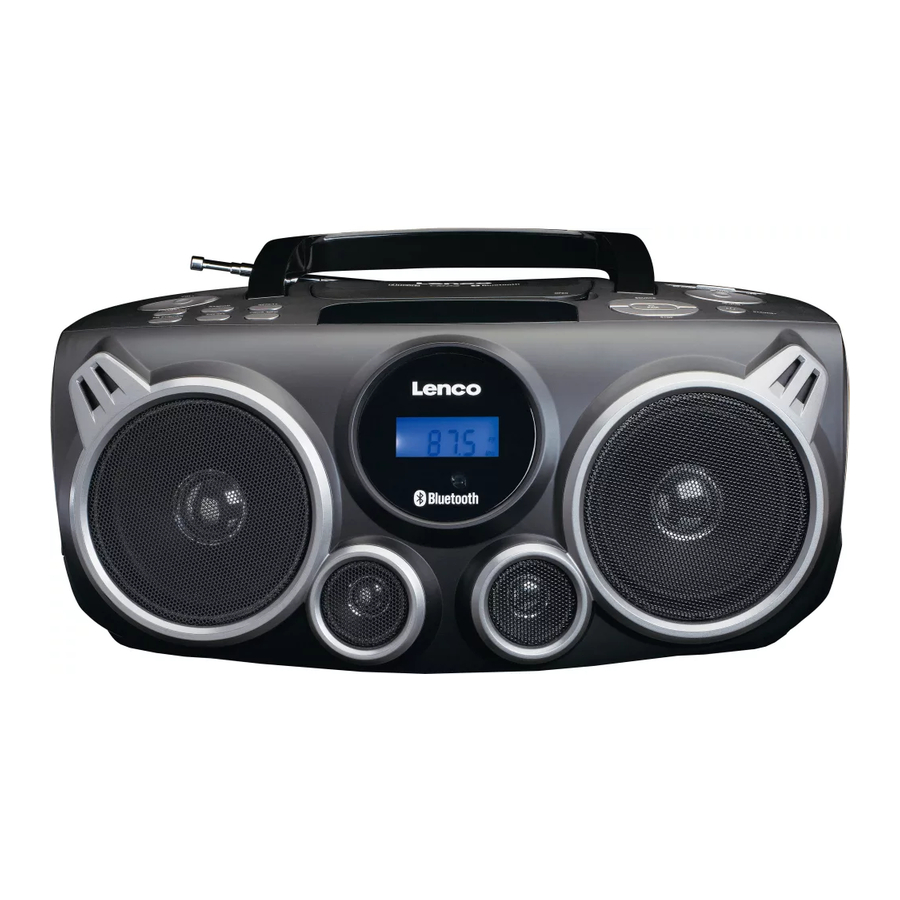

Lenco SCD-685BK - Boombox Manual

OVERVIEW

FRONT & TOP

1. IR RECEPTION WINDOW
2. DISPLAY
   Display the unit operation status and information
3. CD DISC COMPARTMENT DOOR
4. VOL +/VOL -
   Adjust the main volume
5. FOLDER+/10+
   CD/USB/SD:
   During playback, press to search to the current track number increase by 10
   Press and hold will search to the next folder (folder up)
6. PRESET/RANDOM
   DAB/FM:
   Press to enter the preset channel recall operation
   Press and hold to enter the preset channel storage operation
   CD/USB/SD:
   During playback, press to start the random playback.
   Press again will return to normal playback
7. SELECT
   Press to select the change setting in the menu operation
8. MENU
   Press to enter the Menu for setting change
9. PROGRAM/REPEAT
   CD/USB/SD:
   During playback, press to start the repeat playback operation In stop mode, press to enter the program playback setup
10. INFO
    DAB/FM:
    Press to display station information
    CD/USB/SD:
    During MP3 playback, press to display the folder/track number or track/playing time
11. STOP
    Press to stop the CD/USB/SD playback operation
12. /PAIR
    CD/USB/SD/BT:
    Press to toggle between pause and resume playback operation.
    BT:
    Press and hold will disconnect the current connection and start to search another new Bluetooth device
13. STANDBY/SOURCE
    Press to turn on the unit. Press and hold to turn off and go to Standby mode
    After the unit is turned on, press this key will choose different modes of operation: DAB/FM/CD/USB/SD/BT/AUX
14. SCAN
    DAB:
    Press to start auto-scanning and store all available DAB stations
    FM:
    Press to scan for the next available FM station
15. /TUN- and /TUN+
    DAB:
    Press to display the next station information
    FM:
    Short press to tune to a different frequency
    Press and hold to scan the next available station
    CD/USB/SD/BT:
    During playback, press to search to the previous or next track
16. USB and SD CARD INPUT
17. TELESCOPIC ANTENNA
    It should be extended to ensure a good DAB/FM reception

REAR & BOTTOM

1. AUX
   Connect to external audio player
2. HEADPHONE OUT JACK
   Connect to the external headphone
3. AC IN ~
   Connect the power cable to this jack
4. BATTERY COMPARTMENT DOOR

REMOTE CONTROL

1. STANDBY
2. NUMERIC BUTTONS
3. PRESET
4. TUNE-
5. SCAN
6. RANDOM
7. FM ST/MO
8. BACKWARD
   FORWARD
9. FOLDER +
10. 10+
11. PAIR
12. REPEAT
13. PROGRAM
14. PREVIOUS
    NEXT
15. STOP
16. PLAY/PAUSE
17. TUNE+
18. ENTER/SELECT
19. INFO
20. MENU
21. MUTE
22. VOL -
23. VOL +
24. SOURCE

Remote Control Operation

A CR2025 battery is already installed in the remote control unit. Before using, pull out the battery insulation sheet as shown below.

To replace a new battery, please refer to the figure shown below. When inserting a battery, be sure to do so in the proper direction.

• If the remote control conflicts with other devices, the operation will be affected.
• Do not simultaneously press buttons on the unit and the remote control.
• Avoid using two remote controls at the same time as it will cause a malfunction.
• Use only CR-2025 size batteries.
• If there is battery leakage, clean the remote control thoroughly before replacing batteries.
• Do not short two terminals of the batteries. Dispose old batteries in a suitable place.

CONNECTING TO THE POWER SUPPLY

1. Connect the end of the detachable power cord to the unit rear panel AC IN ~ jack and the other end to the AC outlet.
2. Press the STANDBY button to turn on the unit.

DC CONNECTION

For DC operation, firstly remove the AC plug from the AC outlet and disconnect the AC cord from the AC IN ~ jack. Then insert 6 pcs size C (UM-2) batteries into the battery compartment.
Since the unit will draw little power consumption even in Standby mode, it is suggested to uninstall the battery when it is not used for a long time.

BASIC OPERATION

Press the STANDBY button to turn on the unit. To turn off, press and hold the STANDBY button again.

DAB/FM/CD/USB/SD/BT/AUX
Press the SOURCE button to select from different sources.

Volume Control
Press the VOL-/VOL+ buttons to change the volume.

Adjusting the Antenna
The telescopic antenna should be extended to ensure a good FM reception. Alter the antenna position for the best reception.

DAB OPERATION

The first time the unit is in DAB mode, it will automatically scan for DAB available stations. Wait for a while until the scanning is finished. The display will show the scanning progress. After scanning it will tune to the first station. Stations are listed in numerical then alphabetic order. All stations scanned are stored. The next time the unit is turned on there will be no automatic scanning.

Auto Scan

1. Turn on the unit in DAB mode.
2. Press the SCAN button to start auto-scanning the available stations.

Manual Scan

1. Turn on the unit in DAB mode.
2. Press MENU button to access the menu control.
3. Press the TUNE- or TUNE+ button until "Manual tune" is displayed and then press the ENTER button.
4. Press the TUNE- or TUNE+ button to select the desired channel (5A-13F).
5. To select another channel (5A-13F), press the TUNE- or TUNE+ button.
6. Press ENTER to confirm.

Tuning
Press the TUNE- or TUNE+ button to display the information of the next station. Then press the ENTER button to tune to this station in few seconds.

Storing DAB Presets
You can save up to 20 DAB stations.

1. Tune to the station you wish to store.
2. Press and hold the PRESET button. Flashing preset channel number will be displayed.
3. Press the TUNE- or TUNE+ button to a preset number that you want to store. Then press the ENTER button to save.

Recall DAB Presets

1. Press the PRESET button. Steady preset channel number will be displayed.
2. Press the TUNE- or TUNE+ button to a preset number that you want to recall. Then press the ENTER button to tune to the preset channel.

Displaying DAB Station Information
There are several types of information as listed below. To change the display information, press the INFO button repeatedly.

1. Radio Text scrolling
   Comprises music titles or programme details provided by the broadcaster.
2. Program Type (PTY)
   Type of programme provided by the broadcaster.
3. Multiplex Name
   Displays name of multiplex to which the current station belongs.
4. Channel and Frequency
   Channel number and frequency.
5. Audio Bit Rate
   This is the current channel audio bat rate.
6. Signal Error Rate
   It shows the error received. The larger this value the more the error received. To improve the reception adjust the antenna position.
7. Time and Date
   The real time and current date provided by the broadcaster.

OTHER DAB MENU OPERATIONS

Press the MENU button to access the menu control. Then press the TUNE- or TUNE+ button for different options as described below.

Dynamic Range Control (DRC)
DRC can make quieter sounds easier to hear when the unit is used in a noisy environment. The DRC level of a broadcast is set by the broadcaster and transmitted with the service. Changing the DRC value on your unit enables you to apply a scaling factor to this level.
There are three levels of compression:
DRC High: Maximum compression as sent with the transmitted service
DRC Low: Set to 1/2 that of the sent transmitted service
DRC Off: No compression

1. Press the MENU button to access the menu control.
2. Press the TUNE- or TUNE+ button until "DRC" is displayed and then press the ENTER button.
3. Press the TUNE- or TUNE+ button to select the DRC value and then press the ENTER to confirm.
4. Press the MENU button to exit the menu control.

Note:

• Not all DAB broadcasts are able to use DRC function. If the broadcast does not support DRC then the DRC setting in the unit will have no effect.
• After you have adjusted the DRC level the sound may be louder.

Prune
This function removes inactive stations.

1. Press MENU button to access the menu control.
2. Press the TUNE- or TUNE+ button until "Prune" is displayed and then press the ENTER button to prune the unit.
3. Press the MENU button to exit the menu control.

FM RADIO OPERATION

Auto Scan

1. Turn on the unit in FM mode.
2. Press the SCAN button to scan for the next available FM station.

Manual Scan

1. Press the TUNE- or TUNE+ button repeatedly to tune to a different frequency.
2. Alternatively press and hold the TUNE- or TUNE+ button to automatically search to the next available station.

Storing FM Presets
You can save up to 20 FM stations.

1. Tune to the station you wish to store.
2. Press and hold the PRESET button. Flashing preset channel number will be displayed.
3. Press the TUNE- or TUNE+ button to a preset number that you want to store. Then press the ENTER button to save.

Recall FM Presets

1. Press the PRESET button. Steady preset channel number will be displayed.
2. Press the TUNE- or TUNE+ button to a preset number that you want to recall. Then press the ENTER button to tune to the preset channel.

Stereo/Force Mono Selection
When receiving a stereo broadcast FM station, press the FM ST/MO button will switch between stereo audio or force mono audio.

Displaying FM Station Information
There are several types of information as listed below. To change the display information press the INFO button repeatedly.

1. Radio Text
   Scrolling text with information on music titles or program details provided by the broadcaster.
2. Program Type (PTY)
   Type of program provided by the broadcaster.
3. Signal Strength
   The signal strength bar is displayed to show the current receive signal strength. The more the rectangles are filled, the stronger the signal is received. The unfilled rectangle on the left side is a threshold level where the signal strength received should exceed this threshold. To improve the reception adjust the antenna position.
4. Time and Date
   The real time and current date provided by the broadcaster.
5. Frequency
   Current channel frequency.

OTHER FM MENU OPERATION

Press the MENU button to access the menu control. Then press the TUNE- or TUNE+ button for different options as described below.

Scan Setting

1. Press the MENU button to access the menu control.
2. Press the TUNE- or TUNE+ button until "Scan setting" is displayed and then press the ENTER button.
3. Press the TUNE- or TUNE+ button to toggle between "All stations" or "Strong only" selections and then press the ENTER button confirm. When "All stations" is selected, all stations will be detected during FM scanning even if the radio station is noisy. When the "Strong only" is selected, only the strong stations are detected. Scanning will ignore those noisy stations.
4. The next time doing a FM scan the unit will search for the stations based on this confirmed setting.
5. Press the MENU button to exit the menu control.

Audio Setting

1. Press the MENU button to access the menu control.
2. Press the TUNE- or TUNE+ button until "Audio Mode" is displayed and then press the ENTER button.
3. Press the TUNE- or TUNE+ button to toggle between "Stereo" or "Mono" selection and then press the ENTER button confirm.
4. Press the MENU button to exit the menu control.

CD/USB/SD OPERATION

Loading and Playing CD Disc
Open the CD door. Install a disc with the CD graphic side facing up. Close the CD door. Press the SOURCE button to CD mode. After reading the total number of tracks will be shown on the display. Press the PLAY/PAUSE button to play.

Reading and Playing USB Device
Insert a USB device into the USB input jack. Press the SOURCE button to USB mode. After reading the total number of tracks will be shown on the display. Press the PLAY/PAUSE button to play.

Reading and Playing SD Card
Insert a SD card device into the SD card input jack. Press the SOURCE button to SD Card mode. After reading the total number of tracks will be shown on the display. Press the PLAY/PAUSE button to play.

Play/Pause Control
To pause playback press the PLAY/PAUSE button. Press the button again to resume playback.

Stop Control
To stop playback press the STOP button.

Skip Track
During playback press the PREVIOUS or NEXT button to search to the previous or next track.

Random Play
During playback press the RANDOM button to play music in random order. The display will show "Random". Press the RANDOM button again to resume normal playback.

High-Speed Music Search
During playback press & hold the BACKWARD or FORWARD button to start high-speed searching. When you release the BACKWARD or FORWARD button normal speed playback will resume.

Repeat Playing
During playback press the REPEAT button once the display shows "Rpt.1". The current track will be played repeatedly. Press the REPEAT button again the display shows "Rpt.all". All tracks will be played repeatedly. Press the REPEAT button again to resume normal playback.
In case of MP3 file folder playback, there is a repeat folder as well and the display will show "Rpt.folder".

Folder Up (MP3 file only)
During MP3 playback press the FOLDER + button on the remote control (or press and hold the FOLDER+ button on the unit) to search to the next folder (folder up).
In stop mode press the FOLDER + button on the remote control (or press and hold the FOLDER+ button on the unit) to change the folder. Then press the PREVIOUS or NEXT button to select your desired track to play. Press the PLAY/PAUSE button to start playback the track.

Programmed Playback
This unit can be programmed to play any sequence of up to 20 tracks.

1. In stop mode press the PROGRAM button on the remote control. "P01" will be shown on the display.
2. Press the PREVIOUS or NEXT button to select the desired track.
3. Press the PROGRAM button to save the desired track.
4. Repeat steps 2-4 to program up to 20 tracks.
5. Press the PLAY/PAUSE button to play according to the programmed track.
6. To clear program play press the STOP button twice or change to another mode.
7. During program play you can also do the repeat one or repeat all operation. But during program play, random play is not supported.

BLUETOOTH AUDIO

Please follow the pairing instructions below to link the unit to your Bluetooth device.

1. Press the SOURCE button repeatedly to enter the Bluetooth mode. The display will show "BT". It will start searching and will keep flashing.
2. If the unit has never been paired with a Bluetooth device before or cannot find the last paired device, the display and the Bluetooth status indicator will keep on flashing. Turn on the Bluetooth function of your device and enable the search until "Lenco SCD-685" is found. Select "Lenco SCD-685" on the Bluetooth device to make connection. Enter the pass code "0000" if required.
3. After successfully paired the unit will display steady "BT" without flashing.
4. You can now start playing music from your smartphone wirelessly to the speaker.
5. You can press the button to pause or resume the playback.
6. You can press the PREVIOUS or NEXT button to search to the previous or next song.

• Press the PAIR button on the remote control (or press and hold the PAIR button on the unit) will disconnect the current connection and start to search another new Bluetooth device

"This product has a bluetooth reception function, you can not transmit any bluetooth sound with it: this means that you can receive wirelessly a bluetooth sound signal from an external source like a smartphone."

AUX IN

This allows you to connect an external player's sound through your unit.

1. Plug a 3.5mm audio cable (not included) into your external player's line out and the other end into the AUX jack.
2. Press the SOURCE button to enter AUX mode. Display shows "AUX"
3. Start your external player to play music.
4. The unit will output the sound.

ENERGY SAVING

Due to ErP stage 2 requirement and protect the environment, the unit will turn off to the standby mode automatically once no music has been playing around 15 minutes.
To reactivate the unit, press the STANDBY button to turn on the unit.

CLOCK SETUP

You can set the clock.

1. Turn off the unit to Standby mode.
2. Press and hold the MENU button, it will show the time display format.
3. Press the TUNE- or TUNE+ button to toggle between 24Hour or 12 Hour display format. Press the MENU button to continue.
4. The Hour digits will flash. Press the TUNE- or TUNE+ button to change the hour value. Press the MENU button to continue.
5. The Minute digits will flash. Press the TUNE- or TUNE+ button to change the minute value. Press the MENU button to complete the setup.

• The clock setting may automatically be overridden by the DAB or FM station broadcast real time information.

SOFTWARE VERSION CHECK

You can check the unit software version.

1. Turn on the unit in DAB mode or FM mode.
2. Press the MENU button to access the menu control.
3. Press the TUNE- or TUNE+ button until "SW Version" is displayed and then press the ENTER button to show the software version number. 4. Press the MENU button to exit the menu control.

LANGUAGE SETUP

You can set the unit's language.

1. Turn on the unit in DAB mode or FM mode.
2. Press the MENU button to access the menu control.
3. Press the TUNE- or TUNE+ button until "Language" is displayed and then press the ENTER button.
4. Press the TUNE- or TUNE+ button to toggle between different languages. Select your desired language and then press the ENTER button to confirm.
5. Press the MENU button to exit the menu control.

FACTORY RESET

This function resets the unit to the original factory settings.

1. Turn on the unit in DAB mode or FM mode.
2. Press the MENU button to access the menu control.
3. Press the TUNE- or TUNE+ button until "Factory Reset" is displayed and then press the ENTER button.
4. Press the TUNE- or TUNE+ button until "<Yes>" is displayed and then press the ENTER button to reset the unit.

ACCESSORIES

• Power cable x 1
• Remote control x 1
• Instruction manual x 1

TECHNICAL SPECIFICATIONS

• The specification presents only as a reference. The value of weight and size are approximation.
• Our product is improved ceaselessly and the specification and function may be changed without prior notice.

PRECAUTIONS BEFORE USE

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The apparatus can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0° and 35°C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6.
   Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit could maybe not work properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from rodents. Rodents enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.
16. If the unit has USB playback function, the usb memory stick should be plugged into the unit directly. Don't use an usb extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the apparatus.
18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
21. Never remove the casing of this apparatus.
22. Never place this apparatus on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
25. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
26. Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.
27. If the product is delivered with power cable or AC power adaptor:
    • If any trouble occur, disconnect the AC power card and refer servicing to qualified personnel.
    • To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug of apparatus.
    • Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
    • Unplug this device during lightning storms or when unused for a long period.
    • The socket outlet must be installed near the equipment and must be easily accessible.
    • Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
    • Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
    • Devices with class 2 construction do not require a earthed connection.
    • Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.
    • Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.
28. If the product contains or is delivered with a remote control containing coin / cell batteries:
    •
      "Do not ingest battery, Chemical Burn Hazard" or equivalent working.
    • [The remote control supplied with] This product contains a coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
    • Keep new and used batteries away from children.
    • If the battery compartment does not close securely, stop using the product and keep it away from children.
    • If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
29. Caution about the use of Batteries:
    • "Do not ingest battery, Chemical Burn Hazard" or equivalent working.
    •
      Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
    • Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
    • Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
    • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
    • Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
    • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
    • Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

Class 1 Laser Product

Do not touch the lens.

When participating in the traffic listening to a personal music player can make the listener less aware of potential dangers such as approaching cars.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

SERVICE

For more information and helpdesk support, please visit www.lenco.com
Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, The Netherlands.
