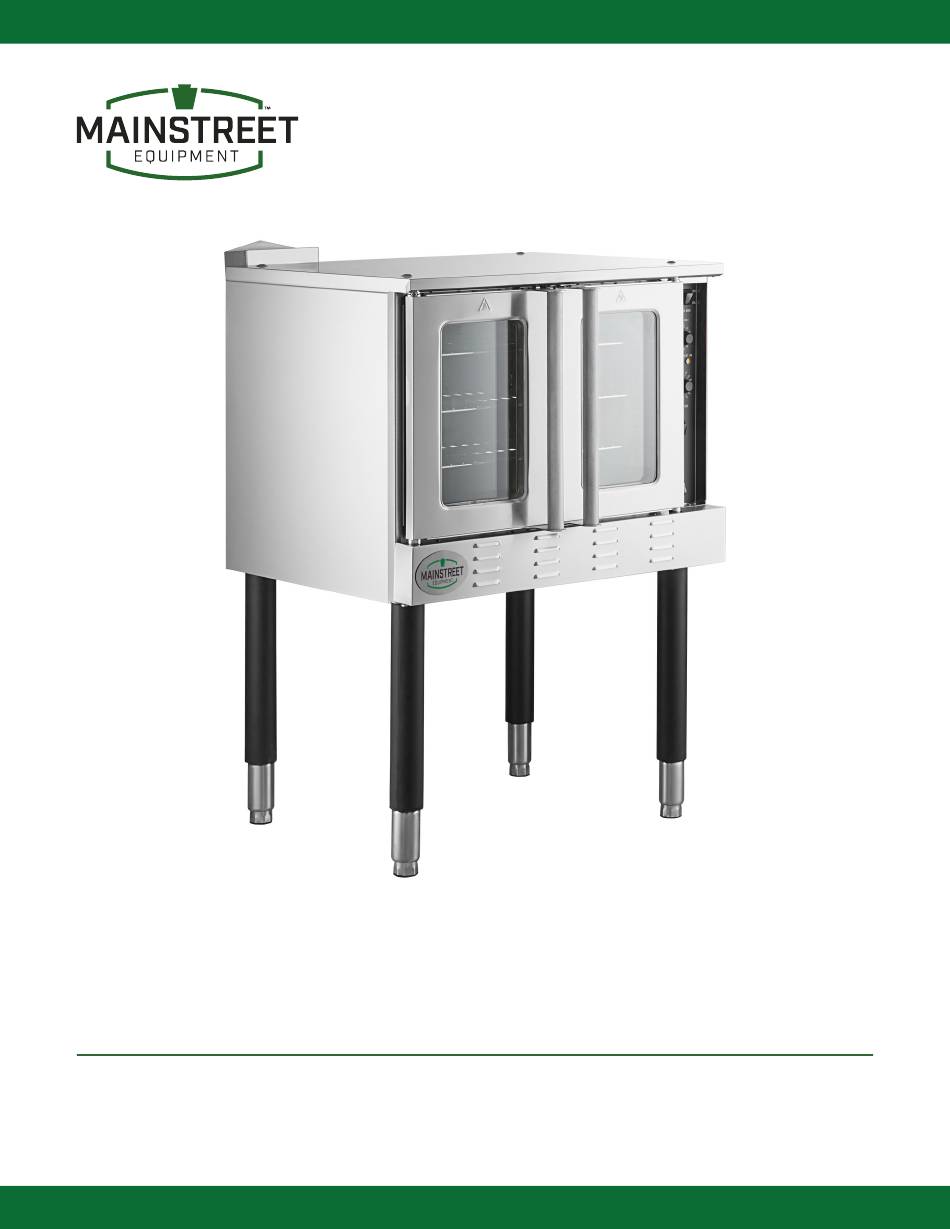

- Page 1 USER MANUAL CONVECTION OVENS MODELS: 541CG1L, 541CG1N, 541CG2LK, 541CG2NK Please read and keep these instructions. Indoor use only. 04/2024...
-
Page 2: Table Of Contents
USER MANUAL INDEX Product Overview ............. . 2 Safety Information . -
Page 3: Safety Information
For future reference, record the cabinet model and serial number found on the serial plate located on the rear of the cabinet. Gas Convection Oven MODEL: SERIAL#: Item: 541CG1L ITEM#: QUANTITY: Gas Type: LP (Propane) Manifold Pressure: 10” WC Ori ce Size: 1.25 mm Input: 54000 BTU Max Pressure: 13”... -
Page 4: Structural Diagrams
USER MANUAL SINGLE DECK OVEN Main Street Equipment... - Page 5 USER MANUAL DOUBLE DECK OVEN Main Street Equipment...
-
Page 6: Oven Stacking Instructions
USER MANUAL OVEN STACKING INSTRUCTIONS NOTE: Requires two ovens and stacking kit. NOTE: The stacking should be performed by an authorized service agent or installer. It takes two people to lift the ovens. Main Street Equipment... - Page 7 USER MANUAL OVEN STACKING INSTRUCTIONS STEP 1, 2, 3 Dismantle the original flue assembly. Install the fixer kit. Install the casters or legs. Main Street Equipment...
- Page 8 USER MANUAL OVEN STACKING INSTRUCTIONS STEP 4 Align the top knobs with the notches on the bottom of the oven. Main Street Equipment...
- Page 9 USER MANUAL OVEN STACKING INSTRUCTIONS STEP 5 Attach the top and bottom unit with connecting plates and screws. Main Street Equipment...
- Page 10 USER MANUAL OVEN STACKING INSTRUCTIONS STEP 6 Attach the stacked flue with screws. Main Street Equipment...
- Page 11 USER MANUAL OVEN STACKING INSTRUCTIONS STEP 7 Stacking complete. Main Street Equipment...
-
Page 12: Specifications
USER MANUAL SPECIFICATIONS Specifications Single Oven Double Stack Oven Overall Dimensions 38" × 42" × 57" 38" × 42" × 68" BTU (per oven) 54,000 54,000 Voltage (V) (per oven) AC120V/60HZ AC120V/60HZ Oven Chamber Dimensions (in) 29" × 25" × 20" 29"... - Page 13 10,000 ft 541CG1N Natural Gas 4" WC 2.0 mm 1.85 mm (#49) 1.77 mm (#50) 1.61 mm (#52) 541CG1L Liquid Propane 10" WC 1.25 mm 1.18 mm (#56) 1.09 mm (#57) 1.016 mm (#60) ELECTRIC CONNECTION Before connecting the equipment to the network, check the following: •...
-
Page 14: Electrical Diagram
USER MANUAL 541S60G24(L/N) FGC100 - ELECTRICAL DIAGRAM Main Street Equipment... - Page 15 USER MANUAL FGC100 - ELECTRICAL DIAGRAM Symbol Part Code Our Item # Description 301080026 541080026 Protection Switch (Ec) 301080141 541080141 Power Switch 301080079 541080079 Door Switch 302170069 541170069 Temperature Sensor 301080141 541080141 Cook/Cool Switch 301080141 541080141 Hi/Low Switch 301080141 541080141 Lamp Switch 301130151 541130151...
-
Page 16: Safety Precautions
Read the installation, operating, and maintenance instructions thoroughly before installing or servicing Mainstreet Equipment equipment. This manual must be retained for future reference. 3. Instructions must be posted in a prominent location. All safety precautions must be taken in the event the user smells gas. - Page 17 USER MANUAL CONTROL PANEL COOK Power Switch Fan Mode Switch ON to use the oven; switch OFF In COOK mode, the fan runs continuously O FF COOL when done using the oven. except when the doors are open. The P OW ER FA N M ODE fan does not cycle with the operation of the burners.
- Page 18 USER MANUAL COOKING INSTRUCTIONS Turn the oven ON using the power switch at the top of the control panel. 2. Select the desired fan speed using the fan speed switch. The appropriate fan speed (HI or LOW) depends on the type of food being cooked.
-
Page 19: Cleaning & Maintenance
USER MANUAL CLEANING & MAINTENANCE Before cleaning, turn off the unit and let it cool down. 2. Carefully clean the equipment daily to promote proper operation and long life. 3. Steel surfaces must be cleaned with dish detergent diluted in very hot water using a soft cloth; do not use abrasive powder detergents or corrosive substances. -
Page 20: Parts Diagrams & Parts Lists
USER MANUAL WHOLE ASSEMBLY - PARTS DIAGRAM Main Street Equipment... - Page 21 USER MANUAL WHOLE ASSEMBLY - PARTS LIST Part Code Our Item # Description 20165002032 54165002032 Chimney D (2) 20165002018 54165002018 Motor Installation Assembly 302170022 541170022 Temperature Probe 301130151 541130151 Lamp 20265002032 54165002032 Coverplate 20265002081 54165002081 Fixed Plate F(7) 20165002001 Housing Assembly C(8) Gas Pipeline Assembly 301080026...
- Page 22 USER MANUAL COVER ASSEMBLY - PARTS DIAGRAM Main Street Equipment...
- Page 23 USER MANUAL COVER ASSEMBLY - PARTS LIST Part Code Our Item # Description 20165002006 54165002006 Top Cover Assembly 20165002007 54165002007 Rear Shrouding Assembly 20265002033 54165002033 Coverplate 20265002031 54165002031 Cotton Sealing Plate 20165002002 54165002002 Base Assembly 20265002036 54165002036 Perimeter Door Gasket Bottom 20165002005 54165002005 Air Outlet Assembly...
- Page 24 USER MANUAL CONTROL PANEL ASSEMBLY - PARTS DIAGRAM Main Street Equipment...
- Page 25 USER MANUAL CONTROL PANEL ASSEMBLY - PARTS LIST Part Code Our Item # Description 301100086 541100086 Buzzer 20217046018 54117046018 Control Panel 301080141 541080141 Switch 301150304 541150304 Ignition Module 301120028 541120028 Timer 301070047 5411070047 Terminal Block 301100149 541100149 Transformer 301030169 541030169 Solid State Thermostat 301130140 541130140...
- Page 26 USER MANUAL DOOR ASSEMBLY - PARTS DIAGRAM Main Street Equipment...
- Page 27 USER MANUAL DOOR ASSEMBLY - PARTS LIST Part Code Our Item # Description 20165002016 54165002016 Door Latch 20265002092 54165002092 Fixed Plate (Door Handle, Left) 20265002093 54165002093 Fixed Plate (Door Handle, Right) 20265002055 54165002055 Round Rod (Door Handle) 20265002046 54165002046 Outer Panel (Right Door) 20265002059 54165002059 Outer Panel (Left Door)
- Page 28 USER MANUAL MOTOR ASSEMBLY - PARTS DIAGRAM Main Street Equipment...
- Page 29 USER MANUAL MOTOR ASSEMBLY - PARTS LIST Part Code Our Item # Description 301010263 541010263 Blower Wheel 302214237 541214237 Bolt 20265002066 54165002066 Heat Shield Rivet Nut Bolt 20265002105 54165002105 Reinforcement Plate Bolt 20265002065 54165002065 Heat Shield 20265002106 54165002106 Bushing 302201881 541201881 Insulation Pad 20265002102...
- Page 30 USER MANUAL MAIN GAS PIPE ASSEMBLY - PARTS DIAGRAM Main Street Equipment...
- Page 31 USER MANUAL MAIN GAS PIPE ASSEMBLY - PARTS LIST Part Code Our Item # Description 302140080 541140080 302140079 541140079 Hoop 302140077 541140077 Connector 20265002085 54165002085 Fixed Plate (Valve) 302220079 54122079 Gas Safety Valve 302220098 54122098 Gas Safety Valve 302060152 541060152 Elbow 302050076 541050076...
- Page 32 USER MANUAL INLET GAS PIPE - PARTS DIAGRAM & LIST Part Code Our Item # Description 302150177 541150177 Orifice - No Hole 302180512 541180512 Manifold 302200620 541200620 Test Plug 302190014 541190014 Straight Pipe 302140077 541140077 Straight Connector 302140079 541140079 Compression Ring 302140080 541140080 Compression Nut...
- Page 33 USER MANUAL BURNER ASSEMBLY - PARTS DIAGRAM & LIST Part Code Our Item # Description 302220004 541220004 Flame Sensor 20265002071 54165002071 Burner 20265002073 54165002073 Fixed Plate (Probe) 20265002072 54165002072 Pressing Plate (Burner) 20265002068 54165002068 Flame Spreading Plate 20265002069 54165002069 Fixer (Igniter) 302170039 5411170039 Surface Igniter...
