Page 2: Table Of Contents
Table of Contents Table of Contents ......................1 Package content ..........................2 Front view ............................2 Rear view ............................3 DAB/DAB+ mode ....................... 5 Power on ..........................5 Shift to another DAB/DAB+ station ..................5 View station information......................5 Display signal strength ......................6 Full Scan (Automatic station search) .................. -
Page 3: Package Content

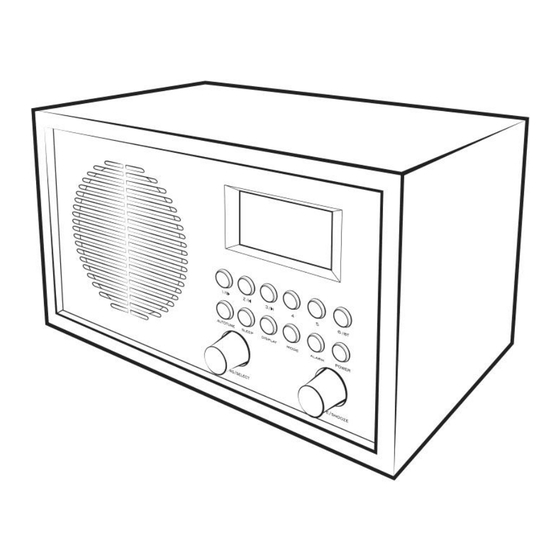

Package content Main unit Power adapter User Manual Front view 1. SPEAKER 9. POWER 2. LCD Display 10. ALARM 11. VOLUME/SNOOZE Dial 12. MODE 13. DISPLAY 14. SLEEP 15. TUNING/SELECT Dial 16. AUTOTUNE... -
Page 4: Rear View
Rear view 17. Antenna 18. Headphone 19. Line out 20. Auxiliary input 21. DC power supply (DC 12V/1.5A Control buttons Mode DAB/DAB+ and FM mode: When a radio station is broadcasting, long press this button to store the station to preset 1. Bluetooth Mode: IN Bluetooth Mode, press this button to control the playback or pause of the playlist. - Page 5 DAB/DAB+ and FM mode: When a radio station is broadcasting, long press this button to store the station to preset 6. Bluetooth Mode: Press this Button to skip to the re-search for device. AUTOTUNE DAB/DAB+ and FM mode: Press this button to automatically scan Stations. When playing, cycle through delay-time values for switching to stand by.
-
Page 6: Dab/Dab+ Mode
DAB/DAB+ mode Power on Elongate the antenna on the back of radio, and then press the “POWER” button on the front panel turn on the radio power. For first time use, the radio will automatically conduct a complete frequency scan and store detected stations into memory. If no DAB radio station is found, the device will automatically enter the system menu. -
Page 7: Display Signal Strength
Display signal strength While playing a DAB/DAB+ program, press the “INFO” button until the LCD screen displays a signal bar showing the signal strength of the current station. ● NOTE: Stations with signal strength below the minimum signal level may not provide a stable audio stream. -
Page 8: Fm Mode
FM mode Tune in FM mode 1. Turn on the radio power, and press “MODE → FM” on the front panel to automatically enter this mode. 2. For first time use, the radio starts from FM 87.50MHz. Long press “SELECT” dial to automatically search the next or previous station. -
Page 9: Preset Recall (Dab/Dab+ And Fm Modes)
(Bluetooth settings on general mobile phone) In the menu, find “Settings" button, click "Settings" → turn on “ Bluetooth”→ find “Available Device “→ press “Available Device (device name: echoDAB2)”. (Other players with Bluetooth systems) Please refer to the instructions for Bluetooth pairing of the player. -
Page 10: System Settings
System settings Method to enter system settings 1. In any mode (DAB/FM/Bluetooth/Auxiliary Input), press and hold the “DISPLAY” button → System settings” on the front panel control. 2. Turn “SELECT” dial to switch among the options in the System Settings menu: “Equaliser→Time→Backlight→InactiveStandby→Language→FactoryReset→... -
Page 11: Set Equalizer
Set equalizer ● NOTE: Select the appropriate equalizer can help to improve the sound quality of music: 1. In any mode, Press and hold the “DISPLAY” button → System settings → Equalizer” on the front panel control. 2. Press “TURN “SELECT” dial to select the desired option (My EQ) (Normal / Classic / Jazz / Pop / Rock / Speech). -
Page 12: Set Backlight
The date values follow and are set in the same way. • NOTE: The date displays as dd-mm-yyyy or mm-dd-yyyy depending on your choice of date format (see above). Set Backlight • NOTE: High-brightness backlight provides you a clear view of your radio screen. Low-brightness backlight is for energy saving purpose. -
Page 13: Set Sleep Timer
Set Sleep Timer • NOTE: Your radio is smart; it can put itself into sleep mode after receiving your command. 1. In any mode, press “SLEEP” button on the front panel to display “Set Sleep Timer” on the screen. 2. Press continuously “SLEEP” button to adjust sleep duration “Sleep Timer Off / 15 / 30 / 45 / 60 / 90 minutes“. -
Page 14: Specifications
Specifications Items Specifications Function description DAB / DAB+ / FM / Bluetooth / AUX In / Alarm / Sleep / Clock Amplifier rated output power 7 watts RMS@1%THD Speaker Full-range 3-inch x 1, 4 Ohm FM: 87.5-108MHz Frequency range DAB / DAB+: 174.928–239.200MHz (5A~13F) Black background and white characters,128 x 64 dots LCD LCD display display.
