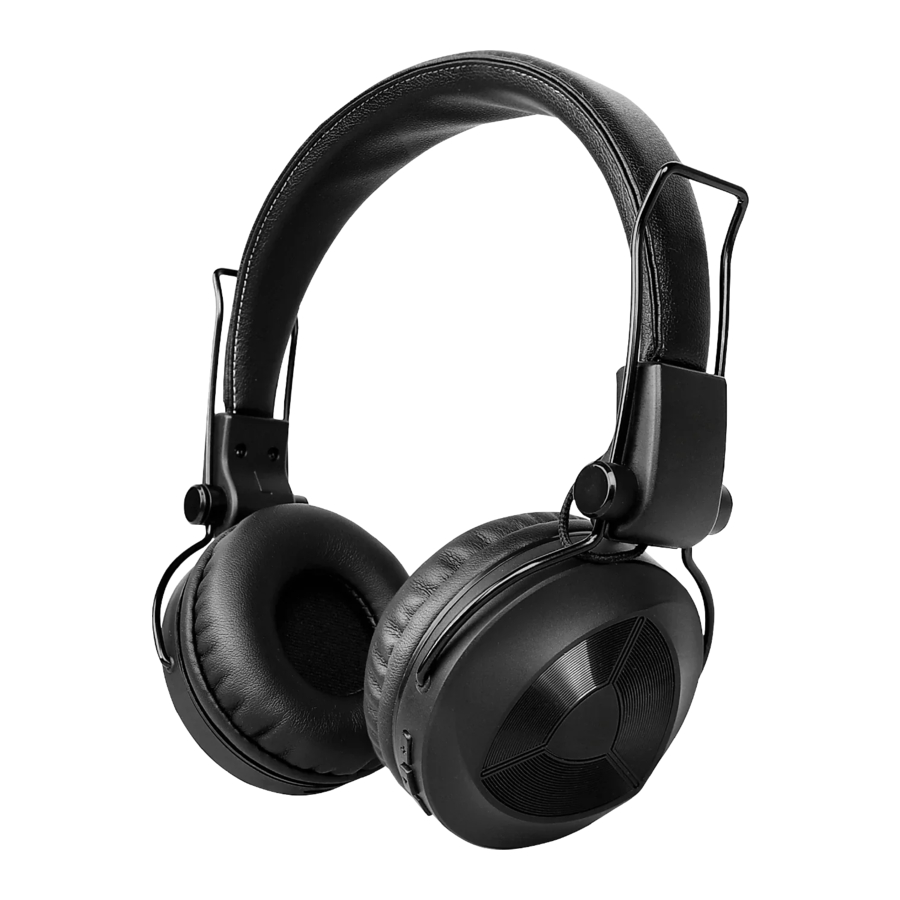

Blaupunkt BH-O1 EQz - Wireless HeadPhone Manual

Table of Contents

Contents

1 SPECIFICATIONS
2 ACCESSORIES
3 Overview
4 CHARGING THE HEADPHONES
5 PAIRING
6 PLAYBACK / CONTROLS
7 CALLS
8 How to fold the headphone
9 Using headphones in Passive Mode (Wired)
10 Use Responsibly
11 Documents / Resources
- 11.1 Download manual

SPECIFICATIONS

Bluetooth version:	Bluetooth V 5.0
Effective transmission range:	10m
Battery:	300mAh Li polymer battery
Charging time:	2 hours (maximum)
Playing time:	10 hours
Stand-by time:	up to 100 hours
LED indicator status:	Blue LED for power and BT pairing indicator; Red LED for charging in indicator
Diameter of driver unit:	40mm
Frequency range:	20Hz ~ 20kHz
Sensitivity at 1KHz:	112+/- 3db 1kHZ
Impedance:	32+/-10% Ω
Distortion:	≤1% at 1KHz
Rated power output	10mW
Net Weight:	Approx. 118g

ACCESSORIES

Micro USB charging Cable
3.5mm audio cable
Instruction Manual

Overview

Multifunction button

On/Off

Play

Pause

Call/Answer/Hang Up
Volume Down / Track Back

Decrease the volume

Go to previous song
Micro USB charging port
3.5mm audio jack
VolumeUp / Track Forward

Increase the volume

Go to next song
Microphone
LED indicator
EQ button

POWER ON
Press and hold the Multifunction button (1) to turn the headphones on. The LED indicator will flash BLUE when headphones are on.

POWER OFF
Press and hold the Multifunction button (1) to turn the headphones off. The LED indicator will stop flashing when off.

CHARGING THE HEADPHONES

Use the Micro USB cable and connect headphones to your computer or adaptor device made for USB charging. A red LED indicator will turn on when the headphones are charging. The red LED light will turn off when headphones are fully charged.

PAIRING

Make sure your phone, computer or music device is turned on and within 1 meter of each other.
Hold down Multifunction On/Off button (1) for about 3 seconds until you see the red and blue lights flashing alternately to enter pairing mode.
Activate the Bluetooth feature on your phone or device and set it to search for Bluetooth devices (Discoverable).
Select 'BLAUPUNKT-BHO1' from the list of found devices.
lf necessary, enter pass code '0000' to pair and connect the headphones to your device.
Once successfully paired, the LED light will flash BLUE once every few seconds

PLAYBACK / CONTROLS

Press Multifunction button Play/Pause (1) to start and pause audio.
Press (button 5) to skip forward to next track. Press and hold down button to increase volume.
Pres s (button 2) to go back to previous track. Press and hold down button to decrease volume.

Note: The controls will not function when charging.

CALLS

To answer an incoming call, press the Multifunction Play/Pause (button 1)
To reject press Multifunction button for 1second (button 1)
To end call, press the same button again
To decrease or increase the volume during the call, press and hold down button 2 or button 5

How to fold the headphone

Using headphones in Passive Mode (Wired)

You can use the headphones as a wired headphone to save battery. Simply connect one end of the 3.5mm cable to the bottom of the ear cushion and the other end to your phone or device.
Using headphones in Passive Mode
Note: Inserting an audio cable disables wireless functionality.

Use Responsibly

Do not use headphones when it's unsafe to do so — while operating a vehicle, crossing streets, or during any activity or in an environment where your full attention to your surroundings is required.
It's dangerous to drive while wearing headphones, and illegal because it decreases your chances of hearing life-saving sounds outside of your vehicle, such as another car's horn and emergency vehicle sirens. Please avoid wearing your headphones while driving.
