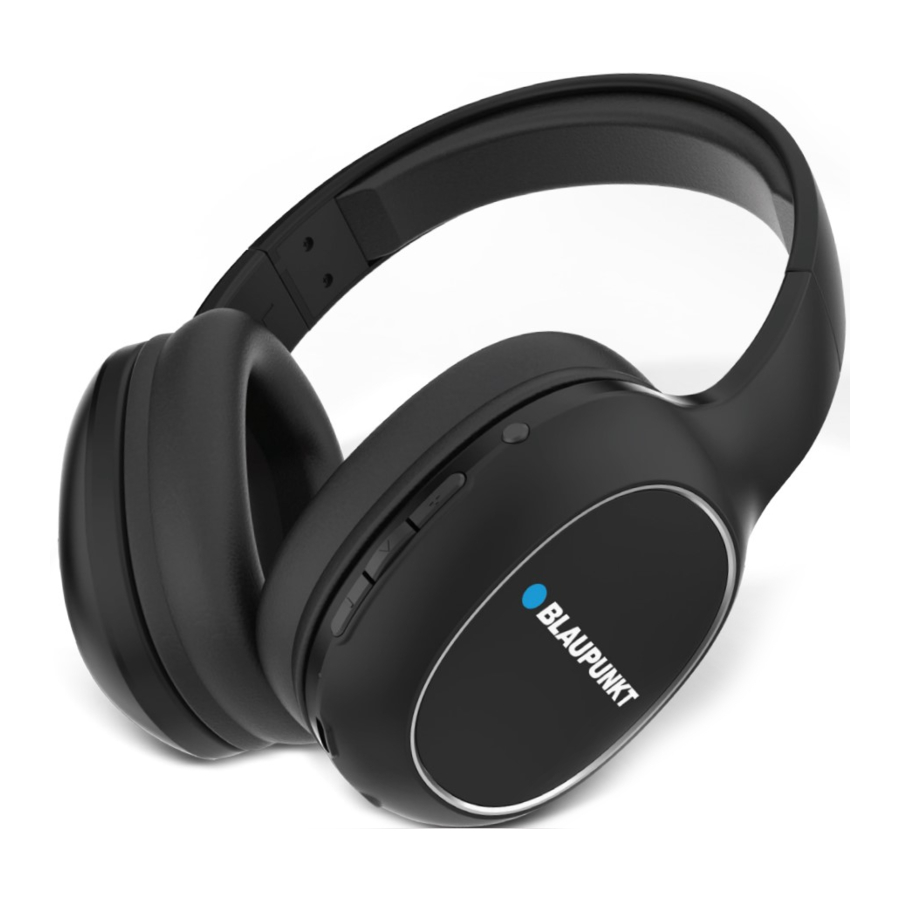

Blaupunkt BH-21 EQz - Wireless HeadPhone Manual

Overview

1. EQz Mode (Blaupunkt Music Mode / Turbo Bass Mode)
2. Multi-function button/ON/OFF
   Answer or end a call (Press once)
   Redial (Double press)
   Reject a call (Press and hold for 1 second)
   Play or pause (Press once)
3. Volume up (Short press)
   Track forward (Press and hold)
4. Volume down (Short press)
   Track back (Press and hold)
5. Bluetooth indicator
6. Charger connect
7. AUX-in
8. Microphone

Product specification

Using the headphones

This guide is provided to help you get started quickly with your wireless stereo headphones; please read it carefully and save it for future reference.

What's in the box

1. Bluetooth headphones
2. USB charging cable
3. Aux cable
4. Instruction Manual

Power Supply

We recommend that you fully charge the battery before using for the first time. Allow approximately for a full charge.

• Plug the Micro USB end of the supplied USB cable into the USB micro port charger connector under the right earcup of the headphones.
• Plug the other end into a USB port on your computer or another device used for USB charging.
• Allow about 2 hours for a full charge. The indicator light will be red while charging. Once fully charged, the indicator light will be blue.

Bluetooth Connection

To use Bluetooth headphones with a Bluetooth device (such as a smartphone, computer or tablet), you must first establish a wireless connection between the headphones and the device.

1. Press the ON/OFF button to power on, it will enter pairing mode automatically, the Blue LED starts blinking blue quickly.
2. Activate the Bluetooth feature function on your native device to begin set-up.
3. The "Search new device" screen will be displayed.
4. Place both devices no more than 3 feet away from each other.
5. As soon as the system detects the new device in your dialog box, select the icon that reads "BLAUPUNKT-BH21", i.e. the headset. The wireless connection will be established automatically with the remote device.
6. If the pairing is successful, the Blue LED will start blinking blue light slowly. If after 60 seconds the pairing process fails, please repeat steps 1 to 5 described above.
7. The headset will go automatically into standby mode after a short period of inactivity.
8. Decrease or increase the volume to your desired level by short pressing the button + or -.
9. Press multi function button to play or pause when playing music.
10. Switch to previous track or next track by long pressing the button + or -.
11. Long press + and - simultaneously to disconnect from the paired Bluetooth device.
12. Long press ON/OFF until the LED turn to solid red to turn off the Bluetooth headphones.

Phone Call

When there is an incoming call, the headphones will ring. Press the multi function button to answer an incoming call. You may also press the answer button on your mobile phone to receive the call on your headphones. Music playback pauses temporarily. To end a call simply presses the multi function button once again. Likewise, you may also end the call directly using your mobile phone. As soon as you hang up, music playback resumes automatically.

AUX Input Function

1. Connect your Headphones with an external device through the AUX cable provided. The Headphones will turn to AUX mode and the Bluetooth mode will be switched off automatically.
2. Start playing music on the device

Safety Introductions

• Please read, follow and keep these instructions.
• Heed all warnings on the product and in the instructions for use.
• Stop using this product immediately if it causes discomfort or pain. When using this product, it is recommended that you limit the volume to help avoid causing harm to your ears and danger resulting from being unable to hear what is going on around you.
• Keep the device out of extreme heat and humidity.
• Do not use the device near water, such as sinks, bathtubs, swimming pools, washing machines, tubs of water, etc.
• Observe all signs and instructions that require an electrical device or radio product to be switched off in designated areas, such as petrol/refueling stations, hospitals, blasting areas, potentially explosive atmospheres and aircraft.
• Using headphones while driving can distract you and increase the likelihood of an accident. If driving conditions demand it (such as bad weather, high traffic density, presence of children in the car, difficult road conditions), pull off the road and park before making or answering calls.
• Battery life may differ depending on personal habits.
• Please do not rotate the headset when the head band has been set/pushed to the lowest position.
• This appliance should be used in moderate climates.

• To prevent potential hearing damage, do not listen at high volume levels for long periods.
• Do not turn the volume up too high; doctors warn against prolonged exposure to high volumes.
• Stop using the product or lower the volume if you feel your ears ringing.
• Prolonged listening at high volumes could lead to hearing damage.
