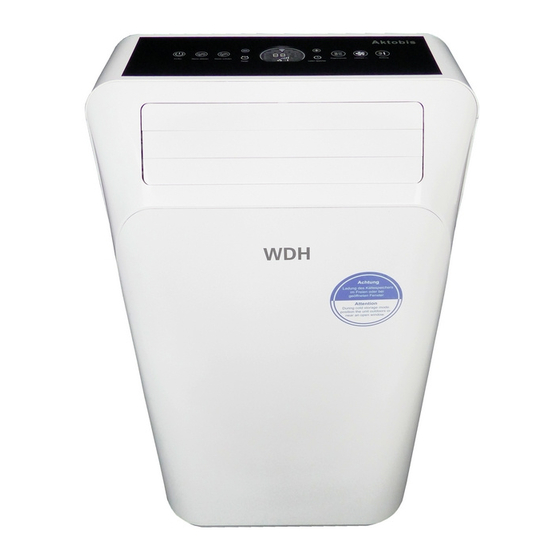

Aktobis WDH-9000K Installation Instructions

Download this manual

Installation instructions for the water hose

Before you can use your new air conditioner, it must be filled with water. To make filling as easy as possible, you will find 3

different hose connectors in the bag supplied. These instructions explain in detail how to connect the water hose to the tap.

The first step is always to connect the supplied water hose to the air conditioner.

Water

Water inlet

outlet

Once the water hose is connected to the air conditioner, there are 5 ways to connect the water hose to the tap. Care must

be taken to ensure that the connection is tight. The 3 different hose connectors are designed for different taps.

1. Connection with washing machine connection

1.1. Please use the hose connector shown in the picture, which was supplied with the air conditioner:

1.2. Connect the hose connector to the water hose of the air conditioner as shown in the illustration:

1.3. Then screw the hose connector onto the washing machine connection:

1.4. Now you can start filling the air conditioner with water. Please follow the instructions in the operating instructions.

Need help?

Do you have a question about the WDH-9000K and is the answer not in the manual?

Page 1 Installation instructions for the water hose Before you can use your new air conditioner, it must be filled with water. To make filling as easy as possible, you will find 3 different hose connectors in the bag supplied. These instructions explain in detail how to connect the water hose to the tap. The first step is always to connect the supplied water hose to the air conditioner.
Page 2 2. Connection with the garden hose 2.1. Please use the hose connector shown in the picture, which was supplied with the air conditioner: 2.2. Connect the hose connector to the water hose of the air conditioner as shown in the illustration: 2.3.
Page 3 3.1. Connect the hose connector to the water hose of the air conditioner as shown in the illustration: 3.2. Please pull the inner part of the hose connector over the selected tap: 3.3. Then pull the water hose with the outer hose connector over the inner hose connector and tighten well with the hose clamp: 3.4.
Page 4 Method 1: Remove the adapter from your tap. Screw in part A. Method 2: Remove the adapter from your tap. Attach part A to part B by twisting the parts together. Screw them into the tap.
