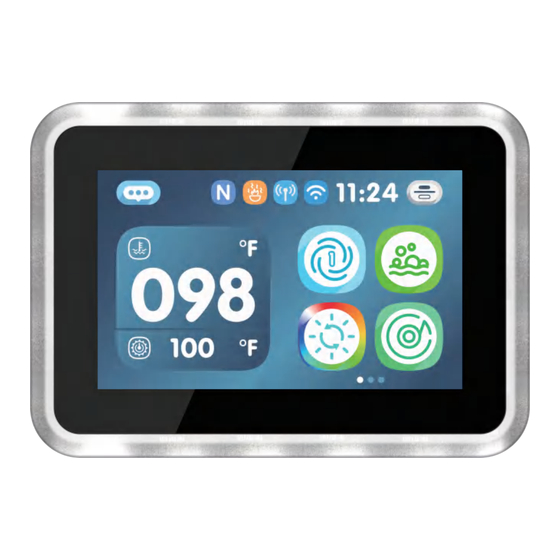

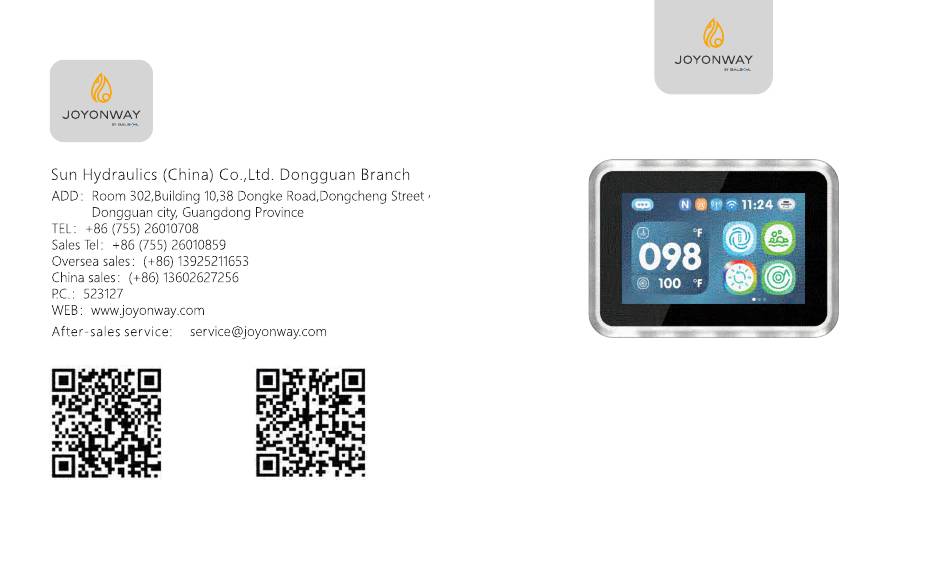

- Page 1 PB565 Operation instruction Android download iPhone download Depending on the system configuration, some of the content mentioned in this manual V0.2 English may not appear on your system.
-
Page 2: Table Of Contents
Contents Warning WIFI: 01-02 Warning Operating Frequency: 2012-2472MHz Output Power: Max 20dBm Control Panel Specifications and Installation Instructions 03-06 RF Hardware Version: xxx RF Software Version: xxx Main interface introduction 07-08 EMF： These devices comply with RF specifications when the device Music is used at 20 cm from your body. -
Page 3: Warning
PB565 control panel design communications. However, there is no guarantee that interference will not occur in a particular installation. - Page 4 Control Panel Specifications and Installation Instructions Control Panel Specifications and Installation Instructions [ 5.90" ] Control Panel Installation Instructions 150.00 mm 23.50 mm Front view [ 0.92" ] Left view Make a hole in the appropriate position of the hot tub according to the size of the control panel, and clean the surrounding area of the hole, especially burrs, debris, etc., to ensure that the control panel can stick on firmly.
-
Page 5: Main Interface Introduction
Control Panel Specifications and Installation Instructions Button description Warning Warning 1. Please connect power by strictly following the Please set the date and time SPA wiring diagram. before using the SPA control system. 2. Please do not power on the SPA until the water level reaches the water level line inside the tub. -
Page 6: Music
Button description Music Slide to find more functions in Function control Ozone working WIFI not connected area. Touch the function icon to change the function status or enters the function page. Heater working WIFI is connected The water pump will automatically shut down after working for 30 minutes. -
Page 7: Lights
Lights Lights Music connection steps: In the function control area of the Home screen, slide left and right to find the lights icon “ ”/” ”, and touch this icon to enter the lights interface. In the function control area of the Home screen, slide left and right to find the music icon , and touch this icon to enter the music interface. -
Page 8: Setting Instructions
Setting instructions Setting instructions 1.2 Settings GREEN BLUE Within +/- 2°F of the set Between 46°F and 2°F below temperature. the set temperature. Approximately within +/- 1℃ Approximately between 7.7℃ of the set temperature. and 1℃ below the set temperature. WHITE PURPLE Less than 45°F. -
Page 9: Settings / Heat&Cool
Setting instructions Setting instructions （2）Mode NOR: The heating/cooling is turned on all day long User Mode Wifi ECO: The heating/cooling is only turned on during Cycle Time. （3）Cycle Time 1/2 How to adjust the heating time period: Slide the screen Overview to select "Cycle Time 1"... -
Page 10: Settings / Filter
Setting instructions Setting instructions （1）Clim8zone Set the heat pump mode. Touch the "Clim8zone" function, 1.2.3 Settings / Filter then cycle through Disabled/Heat Only/Cool Only/Heat&Cool. Disabled: The heat pump does not operate in any Filter circumstances. Heat Only: The heat pump only operates the heating function. （1）Cycle Time Cool Only: The heat pump only operates the cooling function. -
Page 11: Settings / General
Setting instructions Setting instructions （3）Panel Lock Adjust the automatic screen lock time. Touch the "Panel 1.2.4 Settings / General Lock"funciton to cycle through /30S/1M/3M. ：Automatic screen lock turned off. General 30S： When it reaches 30 seconds without operating on the system, the screen will be locked. -
Page 12: Settings / User Mode
Setting instructions Setting instructions （6）Voltage Display Turn on or off the display of electrical parameters in the 1.2.5 Settings / User Mode Overview interface: press the "Voltage Display" to switch between User Mode ：Display electrical parameters on the Overview interface. Save and activate user mode: touch the "User Mode"... -
Page 13: Settings / Overview
Setting instructions WiFi connection steps: 1.2.8 Settings / Information Install the "JOYONWAY" app on your phone. Register and log on the APP. Please first enable your phone's location information, and then connect your phone to a 2.4G WiFi network; Information Connection record clearing: Find Wifi... -
Page 14: Panel Warning Information
Panel warning information Panel warning information F4:Water temperature When there are some states that require user attention in the control system, the control Water temperature too low panel will display warning information of the state on the control panel. If there are is too low The control system has detected that the several types of information that need to be displayed at the same time, these information... - Page 15 Panel warning information Panel warning information F12:Heater PT temperature Heat Pump ER03: Water flow failure Heating tube protection temperature too high Cause: is too high Water flow failure The control system has detected that the surface 1. The water flow switch fault temperature of the heating tube is too high.
- Page 16 Panel warning information Panel warning information Heat Pump ER06: Heat Pump ER12: Low Pressure Failure Exhaust too high protection Cause: Cause: Exhaust too high 1. Less refrigerant or leakage protection Action: 2. The system blocked 3. Compressor refrigerant oil is insufficient 4.
- Page 17 Panel warning information Panel warning information Heat Pump ER32: Heat Pump ER20: Heating outlet water high temperature protection Abnormal protection of frequency conversion module Cause: Cause: Heating outlet water Abnormal protection of IPM module internal fault, check related problems accor- high temperature frequency conversion Action:...
