Control panel operation instruction

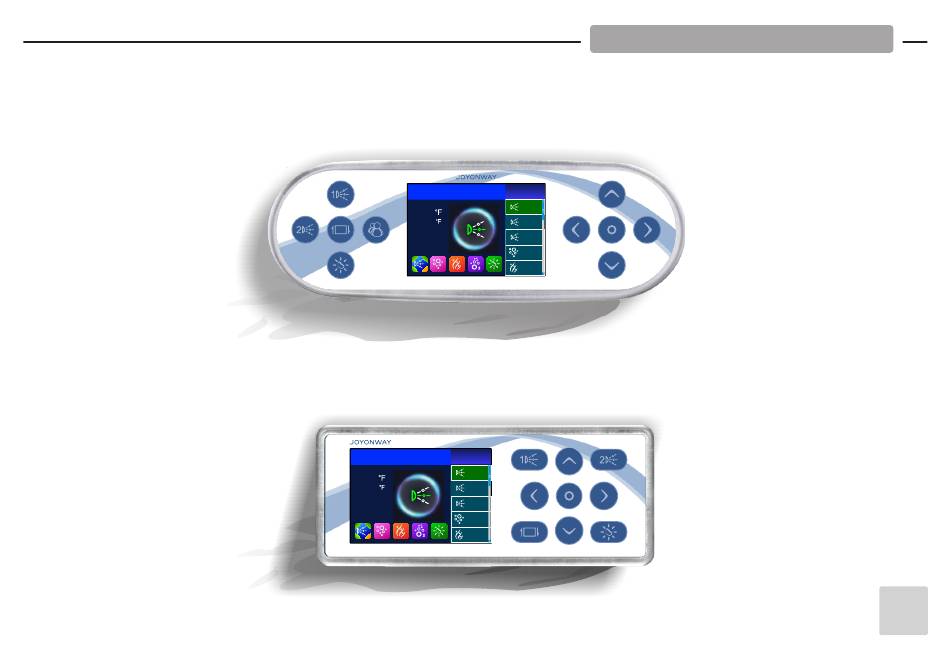

PB553 panel image
11:55
MON
MENU
09-Mar
Jets 1
1
32
set:
95
Jets 2
2
1
Jets 3
3
Mode:off
Cycle pump
on
Blower
1
3
Heat
4
2
PB555 panel image
11:55
MON
MENU
09-Mar
1
Jets 1
32
set:
95
Jets 2
2
1
3
Jets 3
Mode:off
Cycle pump
on
Blower
1
3
Heat
4
2
PB553/PB555control panel image
49

Advertisement

loading
Need help?

Need help?

Do you have a question about the PB553 and is the answer not in the manual?

Questions and answers

Related Manuals for Joyonway PB553

Summary of Contents for Joyonway PB553

  • Page 1 Control panel operation instruction PB553/PB555control panel image PB553 panel image 11:55 MENU 09-Mar Jets 1 set: Jets 2 Jets 3 Mode:off Cycle pump Blower Heat PB555 panel image 11:55 MENU 09-Mar Jets 1 set: Jets 2 Jets 3 Mode:off Cycle pump...
  • Page 2 Control panel operation instruction PB553/PB555control panel main interface 主界面介绍 Below are control panel interfaces of PB553 and PB555. Both control panel PB553 and PB555 can match P20B29, P23B32 and P25B37. And they will real time display the control system state.
  • Page 3 Control panel operation instruction PB553/PB555control panel main interface 主界面介绍 1) :The current water temperature and the value changes with the water temperature. Temperature unit can be set as（℉）or （℃） 2) :Temperature unit setting. According to user's need options of （℉）or （℃）are available.
  • Page 4 Control panel operation instruction PB553/PB555control panel main interface 主界面介绍 Menu displaying area: 10): Press up and down navigation key to move the cursor. The item chosen by cursor will have green background for words. Press OK to turn on/off or change the state of the chosen item.
  • Page 5 Control panel operation instruction PB553/PB555control panel keys description 主界面介绍 Keys functions description: Control panel PB553 has 10 keys and PB555 has 9 keys. They are navigation keys and shortcut keys. PB553 keys description PB555 keys description pump2 navigation key (right)
  • Page 6 Control panel operation instruction PB553/PB555 keys description PB553 and PB555 have the same navigation keys :" " " 、 " " 、 " " 、 " " 、 " Users can realize all the operation with navigation keys. In the display interface, the green background of words or icons is the choosing cursor.
  • Page 7 User can switch among these states. Mode selecting shortcut key:“ ”，It is only applicable for PB553. It has four different modes. Press the key in turn can select the different modes stored by the user.
  • Page 8 Control panel operation instruction PB553/PB555 keys description Move the cursor to the last item ”set” in the menu of the home interface, press “ ” and enter into setting interface. There are totally 11 items in the setting interface including auxiliary system function, time setting, user habit storage, system information, etc.
  • Page 9 Control panel operation instruction PB553/PB555 setting interface Heating time When the control system is set as timing heating mode, heater can operate automatically in two sets of the time periods. And the two time periods are independent from each other.
  • Page 10 Mode User can set and store the function state according to their preference which is defined as mode. PB553 and PB555 control panel have four different modes. They can be stored and selected with navigation keys.
  • Page 11 Control panel operation instruction PB553/PB555 setting interface How to store the setting: first, set each function according to personal need. In Set-> Mode of the menu, by pressing “ ”and “ ”to move the cursor to the items need to be saved then press “...
  • Page 12 Control panel operation instruction PB553/PB555 setting interface Temperature It refers to set the water temperature inside the bath tub. Water temperature range is 50 F- 104F (10C -40C). In Set-> Temperature of the menu, temperature value can be increased and decreased with “...
  • Page 13 Control panel operation instruction PB553/PB555 setting interface Auto lock To avoid unconscious touch of the keys, the panel is equipped with auto lock function. In the set of menu, pressing “ ”and “ ”to move the cursor to the item of “Auto Lock”.

  • Page 14: Date And Time

    ”. Wifi can be set as AP mode or Sta mode or Ozone >> Brightness “forgetting the connected Wifi”. When Wifi module is >> Date&Time Light working in AP mode, user can search Joyonway-xxxx with Wifi >> Function Mode cell phone APP to connect to the control system; >> About...
  • Page 15 Control panel operation instruction PB553/PB555 setting interface Function Function setting is used to set control system loads and Panel ID. When the control system is allowed to be set (please refer to the description in control system connection and setting), find the item “Function>>” in the Set of menu, press “...
  • Page 16 Control panel operation instruction PB553/PB555 setting interface To panel ID, it can be set as 1, 2, 3, or 4, these numbers are used to differ control panels and the control panel ID must be unique. To other loads, if the figure in “...
