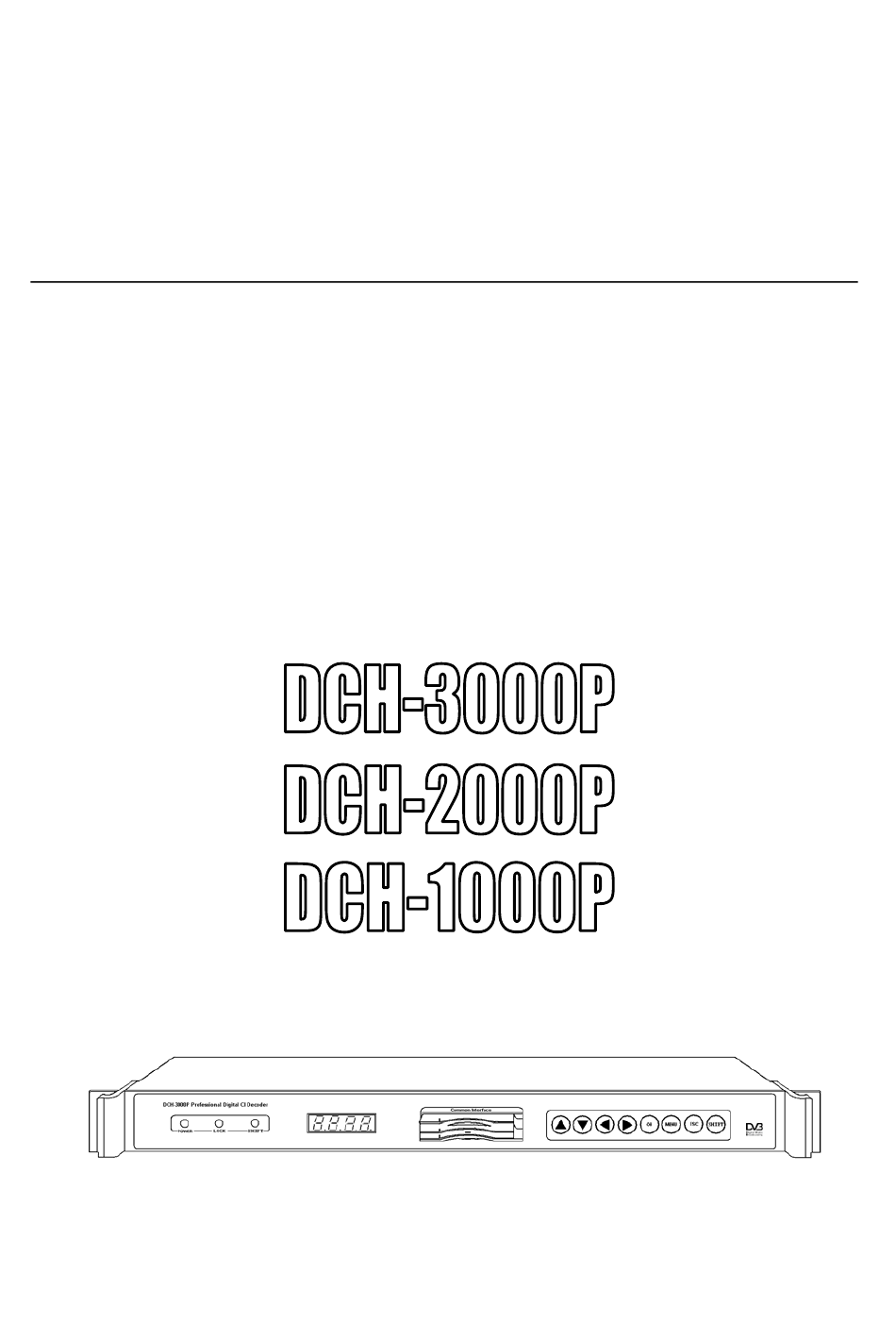

- Page 1 User’s Manual Professional Digital Satellite CI Decoder...
-
Page 2: Table Of Contents
Content Table 1. Overview......................2 1.1 Main Features .................... 2 1.2 For Your Safety..................2 1.3 Unpacking ....................2 2. Specification (Comply with DVB-S , ETSI 300421 standard)....... 3 3. Installation and Usage..................4 3.1 Front panel ....................4 3.2 Rear panel ....................6 3.3 Installation.................... - Page 4 DCH-1000P/2000P/3000P Caution Statements Please observe the following safety requirements before operating the equipment。 Electrical Shock Avoid Moisture Thoroughly check your electrical grounding and Do not use this equipment in connectors prior to high moisture environment. powering. Make sure all connectors are of the three- prong type to ensure proper No Heavy Stacking grounding.
-
Page 5: Overview
DCH-1000P/DCH-2000P/DCH-3000P is professional digital satellite receiver with CI interface, DCH-1000P could output decoded TV image; DCH-2000P could output decoded TV image and ASI stream; DCH-3000P has the same function with DCH-1000P/2000P, and DCH-3000P has ASI Input interface。 If you have any problem of operation, please refer to the related content of this manual. If the problem still exists, please contact the seller or you can directly contact us. -
Page 6: Specification (Comply With Dvb-S , Etsi 300421 Standard)
1pcs • ASI cable 1pcs（It is only available on DCH-2000P/3000P） • XLR connector 2pcs（It is only available on DCH-3000P） 2. Specification (Comply with DVB-S , ETSI 300421 standard) QPSK demodulation & FEC parameters Input Frequency Range: Ku & C-band 950MHz ~ 2150MHz... -
Page 7: Installation And Usage
DCH-1000P/2000P/3000P Dimension 44mm×255mm×483mm Operation Temperature 0-40℃ Storage Temperature -20~70℃ 3. Installation and Usage 3.1 Front panel POWER Power indicator，it is on when the power supply is work LOCK Satellite signal indicator, it is on when the satellite signal or ASI signal is locked SHIFT Shift indicator, when it is on, the keys of A6~A9 is of the second... - Page 8 DCH-1000P/2000P/3000P Confirmation Key，it is used to enter submenu or confirm the operation. MENU Menu key, it is used to display menu and command box Exit key, it is used to return to last menu or exit menu. SHIFT Second function key, press the SHIFT key for 2 seconds，SHIIFT will be on，then A6~A9 will be on second function mode, please refer to A6~A9 for detail.
-
Page 9: Rear Panel
AC90~260V 50Hz/60Hz AC power socket 3.3 Installation DCH-3000P/2000P/1000P is installed on the 19” rack, please refer to the user’s manual when you install DCH- 3000P/2000P/1000P. The following is the typical applications of DCH-3000P/2000P/1000P. 3.3.1 Used as signal resource of Multiplexer... - Page 10 DCH-1000P/2000P/3000P 3.3.3 The DCH-3000P receives the QPSK satellite signal and demodulate the signal, it will output ASI Baseband Transport Stream to a DVB-IP gateway to work as a source for internet. The DCH-3000P could provide Baseband Transport Stream to monitor and analyse the satellite signal.
-
Page 11: General Functions
DCH-1000P/2000P/3000P 4．General Functions The following describes the basic function of your DCH-1000P/2000P/3000P while watching digital TV broadcasts. 4.1 Select Channel To select channels, use the CH+/CH- or numeric keys on the RCU. In additional to the above normal function, the DCH- 1000P/2000P/3000P provides a more convenient channel change function. -
Page 12: Menu Information
DCH-1000P/2000P/3000P 5. Menu Information Apply or switch ON power once you have installed and connected the cables to the DCH- 1000P/2000P/3000P and other equipments. If it is first operation, the main menu will directly display after power on, otherwise, it will play the last watching channel after it power on, then press MENU key of RCU to entry the main menu. -
Page 13: Channel Setting
DCH-1000P/2000P/3000P When you move the CH+/CH- cursor from one channel to another, the PIG will change accordingly. In the TV Channel Manager, you can delete TV channels by using Delete Channel command. First select the TV channel which you want to delete using the keys. - Page 14 DCH-1000P/2000P/3000P 4. LNB Freq. ： when LNB type changed, the frequency of LNB is changed accordingly. You could input frequency using numeric keys. DCH- 3000P supports two LNB local frequency, if the channel couldn’t be searched with first local frequency, it will automatic search the channel with second local frequency.
- Page 15 DCH-1000P/2000P/3000P • Search TP ： Search all channels for one TP, which has been selected from the TP column. • Search Network: Search channels for the network related to the TP. You could use it to search new satellite channel. How to search：After setting parameters, move cursor to search column, choose desired search option, then press OK to begin searching.
-
Page 16: Option Menu
DCH-1000P/2000P/3000P 5.2.3 Factory Default If you want to bring DCH-3000P back to the factory default configuration, select “Factory Default” and press OK key. The warning message will be displayed. If you sure your operation, select OK and press OK key. - Page 17 DCH-1000P/2000P/3000P * The following function is only available for DCH-3000P： 6．Signal Source：Select the signal source between TUNER or ASI. 7．ASI In: Input clear transport stream or scrambled transport stream. 8．ASI Packet: Setting ASI stream data packet format between “188”or “Bypass”（for “Bypass”...
-
Page 18: Common Interface
DCH-1000P/2000P/3000P 5.4 Common Interface DCH-1000P/2000P/3000P have 2 CI slots, you should select the suitable CI module and Smart Card coresponding to the scrambled program. Note: Please pay attention to the interface direction of the CI Module and Smart Card, it should be inserted to slot with correct direction and it should not be pluged arbitrarily. -
Page 19: Asi Input / Output And Ci Descramble Function
DCH-1000P/2000P/3000P 6. ASI Input / Output and CI Descramble Function 6.1 ASI output and descramble / scramble setting This function is only available on DCH-2000P/3000P When you are viewing the Free-to-Air satellite program, the ASI stream of this program will be output at the same time, it could be as signal resource when it is connected to QAM Modulator or Multiplexer For scrambled programs, you should insert correspondent CI Module and CA Smart Card to... -
Page 20: Asi Input Function
6.3.ASI Input function This function is only available on DCH-3000P. DCH-3000P provide input interface as ASI input port, it could descramble the scrambled ASI stream, and output ASI stream and AV video signal. It could directly receive ASI stream from various stream output equipments. - Page 21 DCH-1000P/2000P/3000P ： Notify If you have tried all the actions suggested above, and couldn’t solve the problem, please contact your dealer or service provider.
