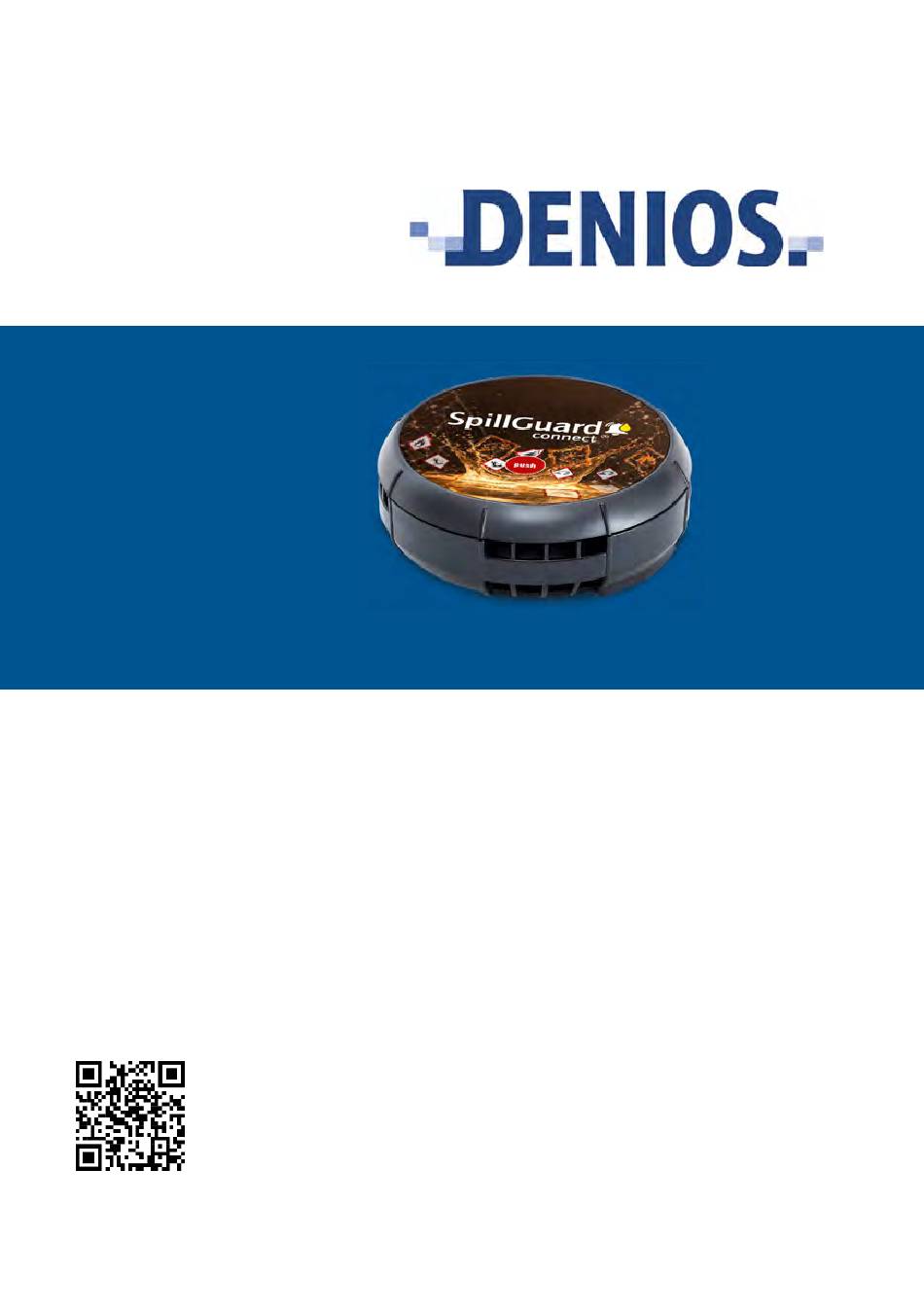

- Page 1 Technical changes reserved Operating instructions SpillGuard® connect Output 2023-11 Original instructions...
- Page 2 These instructions contain texts, images and drawings which need express written authorisation before they can be reproduced, distributed or otherwise shared, in part or in full. These instructions represent the legal situation in Germany. IMPORTANT Read carefully before commissioning Keep safe for later reference © Copyright DENIOS SE...
-
Page 3: Table Of Contents
4 Product description ....................16 Full view ......................16 Service life ......................18 Dimension sheet ....................19 Technical data ....................20 Explanation of the nameplate ..............21 5 DENIOS connect ......................22 Carrying out the registration ................22 3 / 46... - Page 4 Logging in online ....................23 Devices view ...................... 25 Table overview of the status notifications dashboard ....... 26 Activating and configuring the product ............27 Status history view .................... 30 User view ......................31 Creating a new user ..................31 6 Installation ........................
-
Page 5: Information Regarding The Operating Instructions
Information regarding the operating instructions Before you install and commission your product, ensure you read these operating instructions completely. Always observe the safety information and warnings. These operating instructions are intended for all persons who come into direct contact with the product. These operating instructions are a part of the product. - Page 6 Information regarding the operating instructions DANGER The symbol indicates the type of hazard. Symbol and signal word indicate a hazard which leads to serious injury or death. Measure. WARNING The symbol indicates the type of hazard. Symbol and signal word indicate a hazard which can lead to serious injury or death.
-
Page 7: Instructions For Action
The symbol indicates instructions for use and other useful information. Pictograms are used to warn of hazards: Pictogram Meaning General warning Instructions for action These operating instructions contain various instructions for action. Perform the following action This is a requirement. a. -
Page 8: Text Styles
Indicates that content is explained on another page Important information in the text, instructions NOTICE! Text. for action or tables CAUTION! Text. WARNING! Text. DANGER! Text. Important information on explosion protection Further information as download www.denios.com/spillguard 279530_SpillGuard- 8 / 46 connect_Operating-instr_002_en... -
Page 9: Additional Symbols
Additional symbols Symbol Meaning Disposal in normal household waste is prohibited Visual LED signal Acoustic signal Wireless signal 9 / 46... -
Page 10: Safety Information
Safety information Safety information This chapter provides important information regarding the safe use of the product. This information refers to the protection of persons and the safe, fault-free operation. You can find action-related warnings before the corresponding instructions for action. There may be hazards associated with the product if it is used, maintained or repaired in an incorrect manner, not in accordance with the intended use or by untrained personnel. -
Page 11: Misuse
(resistance test). Misuse DENIOS takes no responsibility for any damage caused by contravention of the intended use. All warranties and guarantees are excluded in the event of misuse. The party causing the misuse is solely responsible for any consequential damage. -
Page 12: Operator Obligations
Safety information Changing the batteries WARNING! Opening the housing in Ex atmospheres poses an explosion hazard. Do not open the housing. Operator obligations Before commissioning Check the product for damage. About inspection obligations of spill sumps SpillGuard® connect is an additional safety device, which indicates the occurrence of a leak both via a visual and acoustic signal, as well as a notification via SMS and/or email. -
Page 13: Training
Training Train the relevant personnel in a sufficient manner and in regular intervals, especially in case of modifications or adjustments. If the product is used in an Ex Zone 0, train personnel especially regarding the measures on the prevention of explosion hazards established in the risk assessment or in the explosion protection document. -
Page 14: Personnel Requirements
Safety information The explosion protection document produced by the operator specifies the conditions at the installation site. The operator must test in detail whether the product meets the requirements of the explosion protection document. When creating the explosion protection document, the product and measures contained therein must be incorporated. -
Page 15: Transport And Storage
Transport and storage The product is delivered in cardboard packaging including a quick guide and a cardboard insert. Keep the quick guide at hand and near the product. Store the product as follows: At room temperature NOT outdoors ... -
Page 16: Product Description

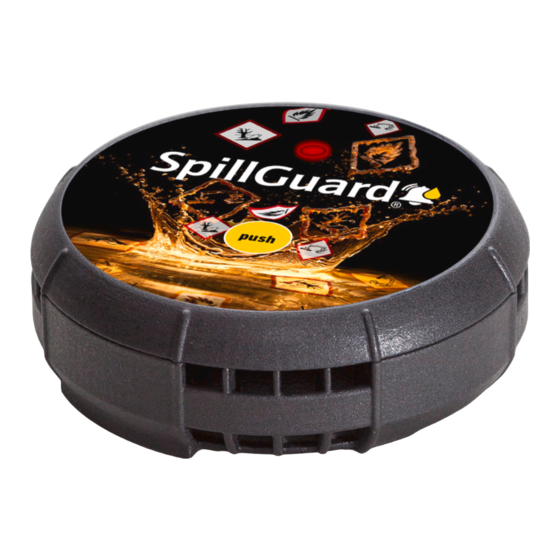

Product description Product description Full view Abb. 1: Top view 279530_SpillGuard- 16 / 46 connect_Operating-instr_002_en... - Page 17 Sensor leak and will emit an acoustic and visual signal. At the surface same time, the product emits a wireless signal (narrowband network NB-loT) to the DENIOS server, and the SMS recipients stored there and/or email recipients. 17 / 46...
-
Page 18: Service Life
Product description Secure stand: due to varying heights of the feet, the Foot leak is fed to the sensor surface without generating any bubbles Service life The contract term for using the NB-loT mobile network and therefore the service life of the SpillGuard®... -
Page 19: Dimension Sheet
Dimension sheet Abb. 3: Data in mm 19 / 46... -
Page 20: Technical Data
Product description Technical data Description Value Dimensions ∅ 110 mm, height 40 mm Operational temperature range 0 °C to a maximum of 40 °C Ignition protection types Intrinsically safe Encapsulation Marking in accordance with II 1G Ex ia ma IIB T4 Ga Directive 2014/34/EU Weight 215 g... -
Page 21: Explanation Of The Nameplate
Explanation of the nameplate ® Typ/type: SpillGuard connect TÜV 20 ATEX 8602 DENIOS AG IECEx TUR 20.0076 Dehmer Straße 58-66 0035 -10°C ≤ T ≤ 40°C D-32549 Bad Oeynhausen YOM: 2021 www.denios.com II 1G Ex ia ma IIB T4 Ga Abb. -
Page 22: Denios Connect
DENIOS connect DENIOS connect Carrying out the registration Your delivery includes a 12-digit registration code for registering your company account. For initial registration: Perform the following action A registration code is available. An Internet connection was established. 1. Start your web browser and enter the following address: http://connect.denios.com... -
Page 23: Logging In Online
3. Enter the following data: Email address (required field) Password (required field) Company name (optional) Address (optional) 4. Press SIGN UP. ☑ The login page opens after successful registration. Logging in online Registration is complete. 1. - Page 24 DENIOS connect The following areas are available: Abb. 5: Dashboard view Devices Click to open this view Status history Click to open this view Users Click to open this view 279530_SpillGuard- 24 / 46 connect_Operating-instr_002_en...
-
Page 25: Devices View
Devices view Abb. 6: Devices view Display of the last sent status Date and time of the last transmitting status Display of device name Display of plant Display of building Display of stored medium Display of remaining service life Display of battery capacity Display of signal strength 25 / 46... - Page 26 DENIOS connect The display for each device contains the following information: Menu item Description Activation Contains information on the time of the activation, the email address of the activating user, and the end of service life Details Contains information on the ID, device name, the stored...
-
Page 27: Activating And Configuring The Product
The product has detected a leak and is in alarm status, a notification was sent via SMS and/or email The product detected an error in signal transmission via NB-loT The maximum ambient temperature of > 70 °C was Temp. high exceeded The battery charge has fallen below the lowest threshold Battery empty... - Page 28 DENIOS connect 2. Enter device ID or Open camera and scan device ID using the QR code 3. Enter device name. 4. Enter stored medium. 5. Enter installation site/plant. 6. Enter building. 7. Enter free text (optional). 279530_SpillGuard- 28 / 46...
- Page 29 8. Enter location. 9. Enter alarm notification text. 10. Enter email address. 11. Enter phone number. 12. Save entries. ☑ After commissioning, a confirmation message will be sent to your stored phone number, as well as your stored email address. 29 / 46...
-
Page 30: Status History View
DENIOS connect Status history view Abb. 7: Devices view Display of sent status Date and time of the transmitting signal Display of device name Display of plant Display of building Display of stored medium Display of battery capacity Display of signal strength... -
Page 31: User View
User view This view is only available to users with administrator rights: Abb. 8: User view Creating a new user Perform the following action 1. Push the Users button. The Users view opens. 2. Push the Add user button. ... - Page 32 DENIOS connect 5. Select user rights: Customer Administrator Reading and editing rights Customer User Reading rights 6. Save entries. ☑ A new user has been successfully added. 279530_SpillGuard- 32 / 46 connect_Operating-instr_002_en...
-
Page 33: Installation
Installation Abb. 9: SpillGuard® connect inside the spill sump Leak sensor Grid Spill sump Spill sump base 33 / 46... -
Page 34: Requirements For The Installation Site
Installation Requirements for the installation site This chapter provides information and instructions for the safe installation. The installation site of the product is the base of a spill sump. The following prerequisites must be met: The base of the spill sump must be free of any type of contamination. ... -
Page 35: Operation
Operation Commissioning the product Perform the following action The product has been activated and configured. The product is correctly unpacked. The product is not damaged. 1. Position the product at the lowest point of the spill sump with the sensor surface towards the base. -
Page 36: Implementing Measures In Case Of An Alarm
Operation Perform the following action 1. Press the push button until the signal tone° sounds. The product is switched off. 2. Position the product in the new location. 3. Press the push button until the signal tone° sounds. LED flashes quickly. - Page 37 When handling hazardous substances, please observe the requirements listed in the safety data sheet for the leaked hazardous substance, see Compliance with the specifications of the safety data sheet [12]. CAUTION Irritation from direct contact with the hazardous substance. Injury possible to hands, eyes etc. Wear personal protective equipment (PPE).
-
Page 38: Fault And Malfunction
Fault and malfunction Fault and malfunction This chapter provides you with information on possible faults. In addition, it describes troubleshooting measures. Possible faults Fault Possible cause Remedy Status notification Alarm-like tone Battery charge is too low Replace product without leak: Signal tone sounds 2 times, 0.1 s pause between... - Page 39 Alarm triggered Under certain climatic 1. Press the push button without leak conditions condensation can (>1 s and <10 s) to turn off form on the sensor surface. the alarm. Display of status This can trigger a false 2. Clean the sensor surface Leakage alarm.
- Page 40 (> 1 s switched off while time interval und < 10 s) it is ready for operation Display of status Product was unable to send Contact DENIOS service weekly status request Error in the dashboard 279530_SpillGuard- 40 / 46 connect_Operating-instr_002_en...
- Page 41 Display of status The product's temperature Remove the cause for the sensor has exceeded the increase in temperature Temp. high threshold of 70 °C in the dashboard Display of status Product has detected a leak, Implement measures to battery charge is also too clean up the leak, then Leakage, Battery replace product...
-
Page 42: Maintenance
Maintenance Maintenance The product is maintenance-free. Due to the enclosed design, repair or replacement of components or spare parts is not possible. After the service life of 5 years, replace the product to ensure continuously faultless leak detection. 279530_SpillGuard- 42 / 46 connect_Operating-instr_002_en... -
Page 43: Decommissioning
Decommissioning When handling hazardous substances, please observe the requirements listed in the safety data sheet for the leaked hazardous substance, see Compliance with the specifications of the safety data sheet [12]. CAUTION Irritation from direct contact with the hazardous substance. Injury possible to hands, eyes etc. -
Page 44: Cleaning
☑ The product has been cleaned. Disposal Use the local collection points established for disposal, or return the product to DENIOS. Perform the following action The product has been cleaned. 1. Do not dispose of the product in a normal household waste bin;... -
Page 45: Eu Conformity
The product SpillGuard® connect conforms to the basic requirements on health protection, safety, and environmental protection of the following directives: 2014/34/EU (ATEX) 2014/53/EU (RED) 2011/65/EU (RoHS) The EU Declaration of Conformity can be found at the following address: www.denios.com/spillguard 45 / 46... - Page 46 279530...
