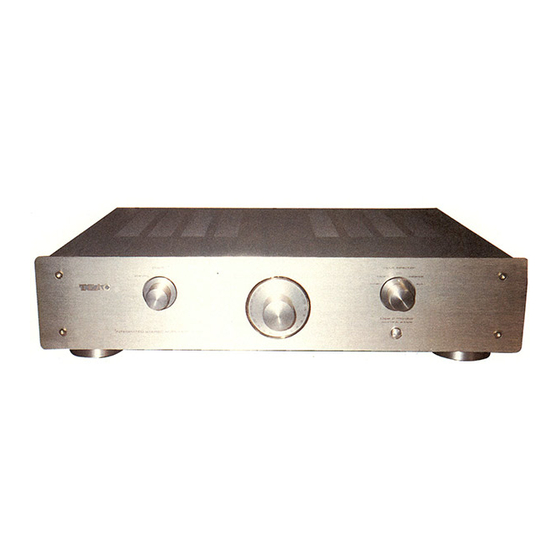

Teac A-BX10 Service Manual

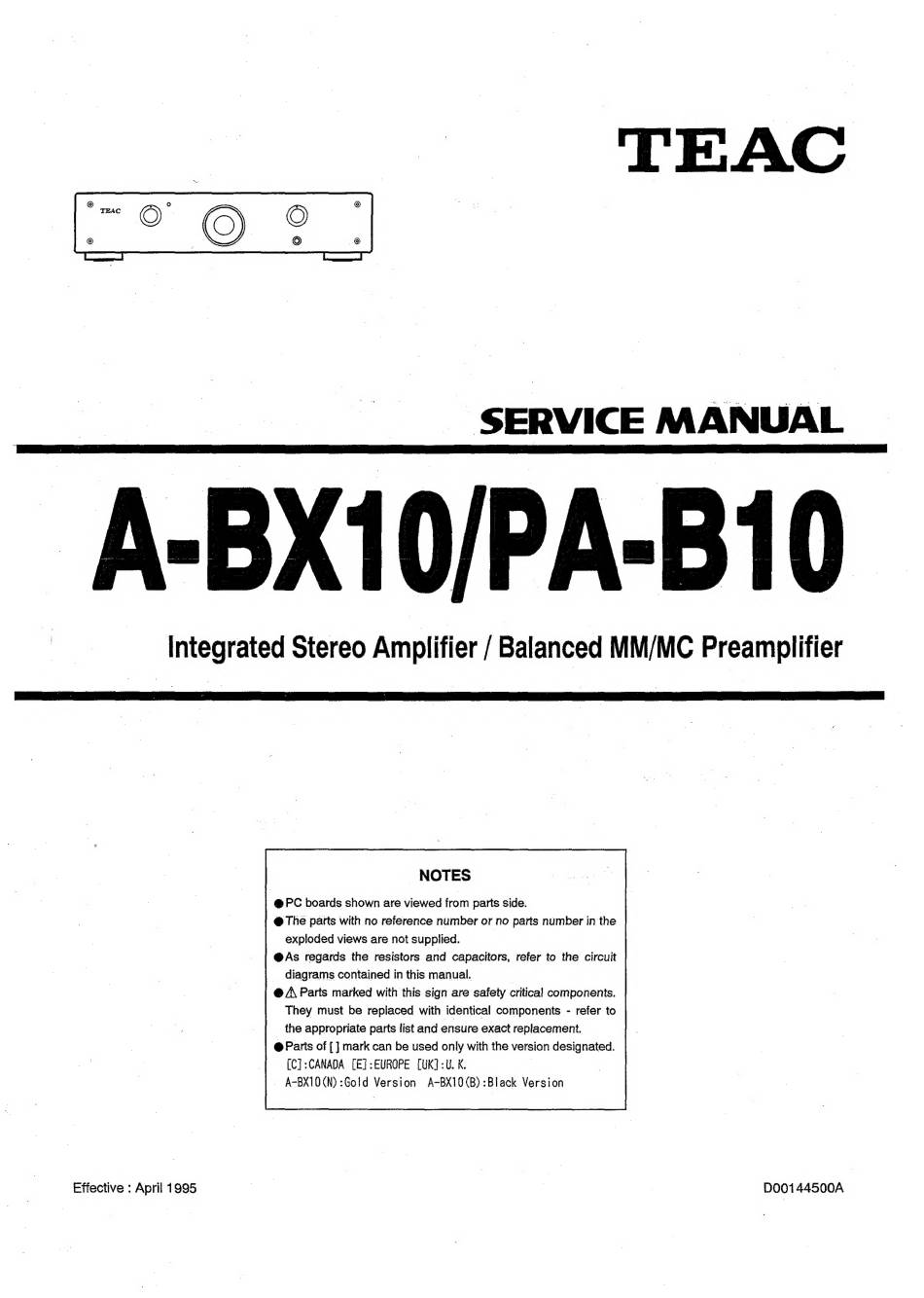

TEAC
SERVICE MANUAL
Integrated Stereo Amplifier / Balanced MM/MC Preamplifier
NOTES
@ PC boards shown are viewed from parts side.
@ The parts with no reference number or no parts number in the
exploded views are not supplied.
@As regards the resistors and capacitors, refer to the circuit
diagrams contained in this manual.
@ /\ Parts marked with this sign are safety critical components.
They must be replaced with identical components - refer to
_ the appropriate parts list and ensure exact replacement.
@ Paris of [ ] mark can be used only with the version designated.
(C]:CANADA [E]:EUROPE [UK]:U. K.
_ A-BX10(N):Gold Version A-BX10(B):Black Version
Effective : April 1995 | D00144500A
