- Page 1 Installation Manual The anti-theft for light commercial vehicles’ rear and side doors...
- Page 3 Attention: information given below are made available by the Services Department and are indicative. They always require a post installation verification. StarBlock disclaims all liabilities for any damage incurred to the vehicle for incorrect installation or for failure to follow Instructions.

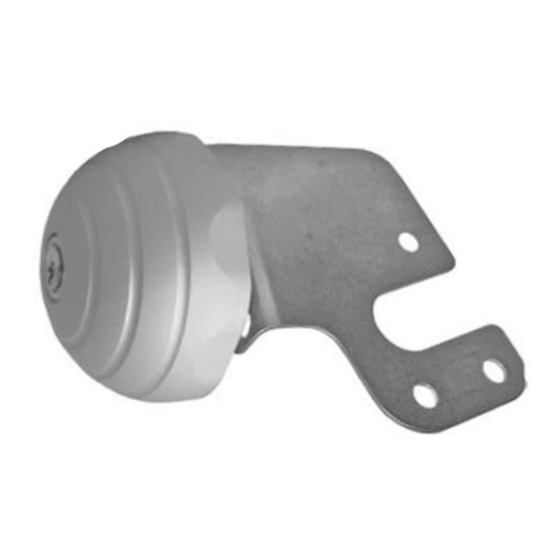

- Page 4 No holes and no changes are made on the doors. The device is installed on the lock studs. CargoBlock is equipped with StarBlock® lock with proprietary technology and non duplicable profile key. Patent n° 202016000071343 D – MAINTENANCE...
- Page 5 E - BOX CONTENTS Rear door plate, left side Rear door fixing plate, right side Side sliding door plate Side door fixing plate Accessory: stud diameter Stud M6X20...
- Page 6 F – INSTALLATION GUIDE 1 – Rear door, left side -Unscrew the torx screw securing the lock; -Tighten the 6mm diameter stud to prevent the lock from coming loose during installation, then unscrew the two torx screws (img. 1); -Position the rear door plate on the left side in correspondence with the lock fixing holes and screw the original screw in the lower part and the M6x2o screw supplied in the upper...
- Page 7 3 – Side sliding door plate -Unscrew the torx screw securing the lock and screw in the stud to prevent the lock from coming loose during installation; -Unscrew the other two torx screws (img. 6); -Position the side sliding door plate at the holes and tighten the two torx screws;...
- Page 8 ST AUTOMOTIVE SRL Ss 96 Strada Vicinale Lamarossa snc - 70026 Modugno (BA) T. +39 080 21 43503 - F. +39 080 9692317 info@starblock.it...
