Sleep Lab Bed™
User Manual
Rev. Date: 04/29/2024
Doc. #: IFU0000083
Rev.: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sleep Lab Bed and is the answer not in the manual?

Questions and answers

Related Manuals for agiliti Sleep Lab Bed

Summary of Contents for agiliti Sleep Lab Bed

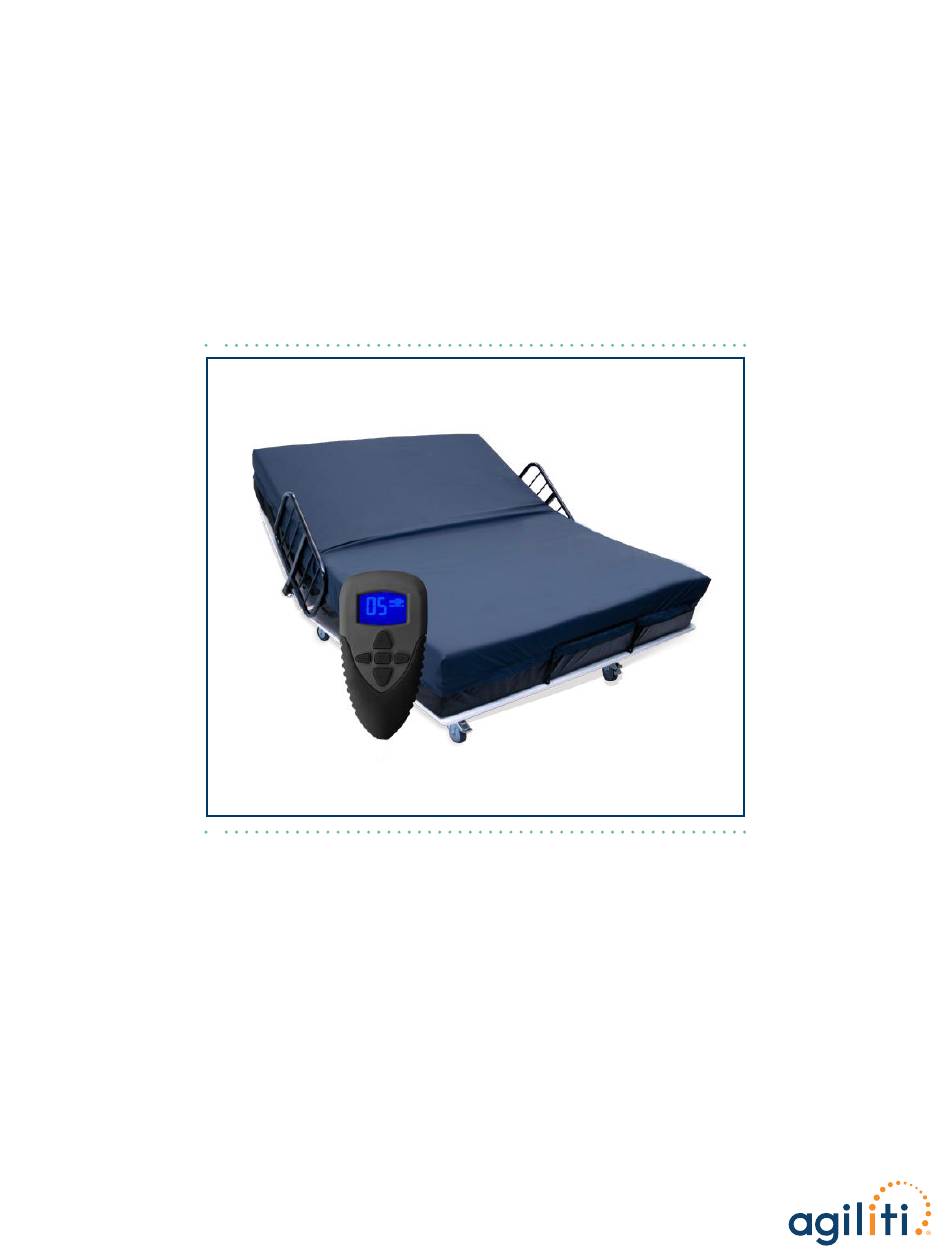

  • Page 1 Sleep Lab Bed™ User Manual Rev. Date: 04/29/2024 Doc. #: IFU0000083 Rev.: 1.0...

  • Page 2: Table Of Contents

    Table of Contents Introduction ..........3 Product at a Glance .

  • Page 3: Introduction

    Product Description Sleep Lab Bed™ is an air-adjustable mattress with 45 levels of soft/firm comfort settings. The mattress has a safe working load of 1,050 lb. and comes in Full XL or Queen sizes. The wired hand control provides the ability to adjust comfort settings and saves a preferred comfort level.

  • Page 4: Product At A Glance

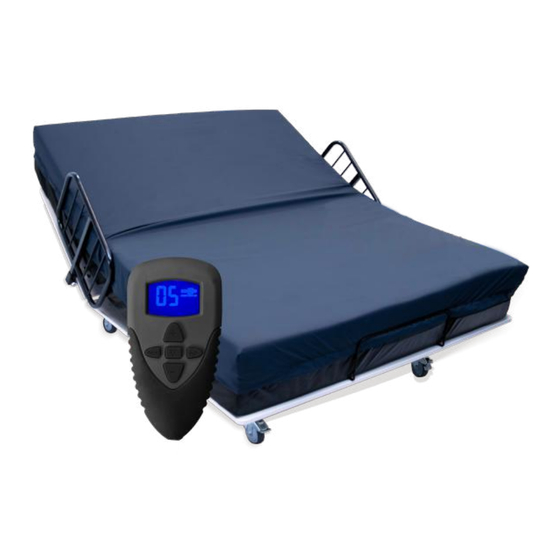

    Product at a Glance Sleep Lab Bed™ Mattress and hand control (Adjustable Base™ sold separately)
  • Page 5 Sleep Lab Bed™ Pump Pump Pump detail: Plugs for wired hand control and power supply Wired Hand Control “Y” Adapter...

  • Page 6: Symbols

    Symbols Symbol Description Certification: Indicates that the device has been independently tested and meets the published safety standard(s). Electrical Equipment Designation: Indicates Class II double insulated. Follow User Manual: Indicates mandatory action to read and fully understand these instructions before use.

  • Page 7: Labels

    Labels Manufacturer’s Pump Label 00-IRU2100 - 2 Port Pump Ap40, NEMA 5-15P, MB5, GenRAS 2000mA PATENT 8707488, 8769747, 8832886, 9737154, 9913547, 10849436, Other patents pending This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 8 Label Description Law Label Technical Bulletin 117-2013 Compliance Label Flammability Test Label...

  • Page 9: Safety Instructions

    If the patient would have any clinical conditions that could result in risk of falling or improperly lying in bed, the bed should be left at its lowest setting and in flat position when not attended. Agiliti recommends the use of bed rails if they are available.
  • Page 10 Only authorized users should operate the Sleep Lab Bed™. A thorough understanding of the product’s user manual is required before use. Follow the instructions contained in this manual carefully. Use product only if it is in proper working order. The terms “Warning” and “Caution” are used frequently throughout this manual. A clear and concise understanding of these two terms is required.
  • Page 11 WARNING: Bed rail entrapment is a serious health risk that can result in serious injury or even death. Agiliti recommends the care provider be mindful of the FDA guidelines relevant to bed rail entrapment, as serious injury can result. These guidelines can be found on the FDA website.

  • Page 12: Specifications

    26.7 cm Safe Working Load 1,050 lb. 476.3 kg Weight Capacity 1,000 lb. 453.6 kg Mattress Weight 41 lb. 18.6 kg Sleep Lab Bed: Full XL Width 54 in. 137.2 cm Length 80 in. 203.2 cm Height 10.5 in. 26.7 cm Safe Working Load 1,050 lb.
  • Page 13 Electrical Requirements 120V Unit 230V Unit 16 CFR 1632, 16 CFR 1633, California TB 129, Conforms to Standards UL 62368 (power supply) FCC ID T9JRN4020 2ALPH-E18 Rated Input Voltage 24V DC 24V DC Rated Input Current Rated Output Current Environmental Conditions: Use 120V Unit 14°...

  • Page 14: Fcc Statement

    FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 15: Unpacking Instructions

    (or buyer). b. If delivered by an Agiliti employee: Please contact your local contact to initiate the process. 2. If replacement parts are needed, contact Agiliti Customer Service: 800-814-9389.

  • Page 16: Setup Instructions

    1. Remove the standard mattress from the base (if applicable). 2. Replace with the Sleep Lab Bed, ensuring the air hose is at the head end of the bed. 3. Connect the Y adapter to both ports exiting the pump.

  • Page 17: Operating Instructions

    Operating Instructions ELECTRICAL SHOCK HAZARD WARNING : Ensure the power cord is plugged into a properly grounded 100 – 240 VAC outlet. Initial Inflation 1. Press the “Full” button for quick inflation. Depending on the amount of air currently inside the mattress, it may take 5 to 7 minutes to inflate fully.

  • Page 18: Cleaning Instructions

    Cleaning Instructions ELECTRICAL SHOCK HAZARD WARNING: Before cleaning and disinfection procedures are performed, unplug the power cord from the outlet to eliminate the possibility of electrical shock. CAUTION: It is recommended that gloves and protective clothing be worn during cleaning and disinfecting.
  • Page 19 — Rinse after using a cleaning agent: When you wipe across a surface with a cleaner/chemical strong enough to kill bacteria, you must rinse afterward. Leaving the cleaner to dry on the surface will shorten the lifespan of the top cover. NOTE: If additional cleaning is necessary, the top cover may be removed and laundered using standard hospital disinfectant/detergent.

  • Page 20: Storage And Disposal

    3. Store the pump and mattress in air temperatures from 14°F to 109°F (-10°C to 43°C). DO NOT expose the pump to humidity greater than 93 percent. 4. End-of-life Agiliti products must be disposed of properly according to local laws and regulations. If your product contains a battery and/or electronics components, disposal of those components must be completed separately from standard waste disposal.

  • Page 21: Troubleshooting

    CAUTION: Only authorized personnel should engage in the troubleshooting process. Troubleshooting by unauthorized persons could result in personal injury or equipment damage. NOTE: If troubleshooting does not solve the problem, please contact an Agiliti representative for further assistance. Symptom(s) Troubleshooting Procedure 1.

  • Page 22: Limited Product Warranty

    Agiliti user manual in effect at the time of sale of the product, including without limitation the safety instructions and if applicable the safe working load and weight limitations set forth therein.
  • Page 23 — Damage or malfunctions resulting from work performed by service providers not authorized by Sizewise Manufacturing. — Repairs performed on an Agiliti product or parts missing a serial number or with a serial tag that has been altered, tampered with, or defaced in any manner.
  • Page 24 Exclusive Remedies For any product described above that Sizewise Manufacturing determines to have failed to conform to this limited warranty, Sizewise Manufacturing will provide, at its option, one of the following: 1. Repair. 2. Replacement; or 3. Refund of the purchase price. Sizewise Manufacturing Limited Product Warranty service may be obtained by contacting Sizewise Manufacturing or the authorized dealer from whom Buyer purchased the item.
  • Page 25 All specifications, equipment, and prices are subject to change without notice. Photos and drawings are representative of the products and may vary slightly from actual production models. All content Copyright Agiliti Health, Inc. Raye’s, Inc., d/b/a Sizewise Manufacturing (f/k/a Wheelchairs of Kansas and Sunflower Medical), is a wholly owned subsidiary of Sizewise Rentals, LLC.
