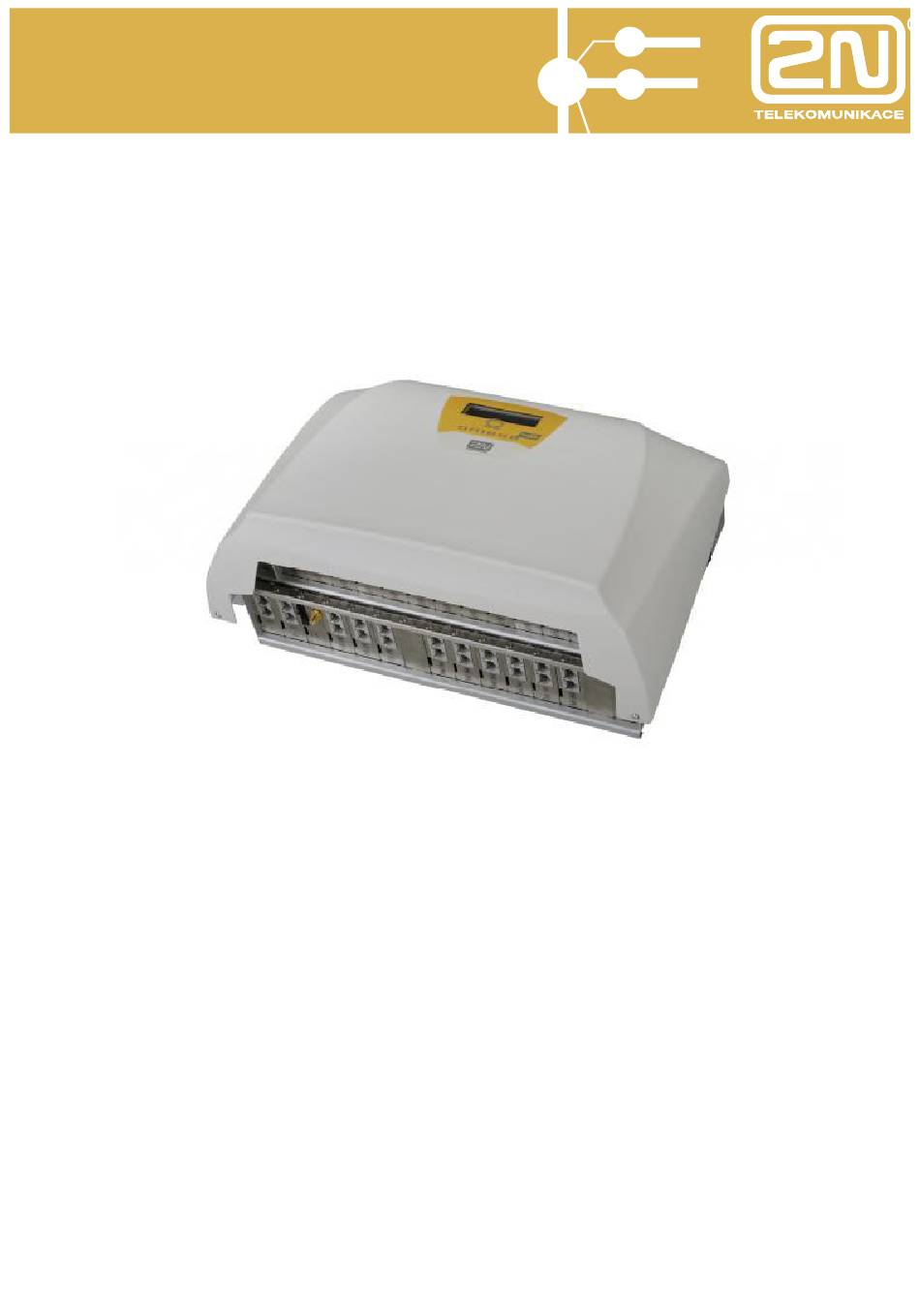

- Page 1 ® - OMEGA 48 Installation manual INSTALLATION MANUAL Installation manual version 1.0...
- Page 2 Congratulations on the purchase of the product 2N OMEGA 48. This new product was developed and manufactured with an emphasis on maximum user value, quality ® and reliability. It is our desire that the 2N OMEGA 48 should give you complete and long satisfaction.
-
Page 3: Table Of Contents
® - OMEGA 48 Installation manual CONTENT 1. Basic module ......................... 5 Description of parts of basic module ..................7 2. Description of mechanical parts ..................7 2.1. Base (chassis) ........................7 2.2. PBX cover ..........................8 3. Description of electrical components................9 3.1. - Page 4 ® - OMEGA 48 Installation manual Installation manual www.2n.cz...
-
Page 5: Basic Module
® - OMEGA 48 Installation manual 1. Basic module Types of basic modules 1880002 - basic module without modem for RemoteSupervision up to 48 lines 1880003 - basic module with modem for RemoteSupervision up to 48 lines Installation manual www.2n.cz... - Page 6 ® - OMEGA 48 Installation manual In its assembled state, each basic module contains these parts: • chassis (metal part of mechanism) with power source • display • plastic cover • motherboard with or without modem for remote supervision (RS) •...
-
Page 7: Description Of Parts Of Basic Module
® - OMEGA 48 Installation manual Description of parts of basic module 2. Description of mechanical parts 2.1. Base (chassis) The base carries the other parts. The power supply (plug 110 - 230V/AC + power switch) is mounted in the upper right part. The upper left + lower left part is intended for fitting the extender. -
Page 8: Pbx Cover
® - OMEGA 48 Installation manual 2.2. PBX cover The plastic cover bears a sticker with a transparent window for the display. The cover is fitted on the chassis by fitting into two holes in the upper part of the plastic and is secured by two extendable “pegs” into the lower part of the plastic. -
Page 9: Description Of Electrical Components
® - OMEGA 48 Installation manual 3. Description of electrical components 3.1. Motherboard Installation manual www.2n.cz... - Page 10 ® - OMEGA 48 Installation manual - Lithium battery holder. We recommend replacement when the voltage is lower than 2.5 V, or at least once every three years. We recommend the batteries be replaced with the PBX off. Before replacement we recommend saving the program of the PBX and the accounting data in a PC.
- Page 11 J18 – the connector is intended for connecting the PBX with a PC. It thus allows the programming of the PBX using the program OMEGA 48 - PROGRAM, detailed display of operation using program OMEGA 48 - PANEL, for connection of XAPI Server, etc.
-
Page 12: Power Supply
® - OMEGA 48 Installation manual 3.2. Power supply As the Power supply a power supply module with open construction and with output voltage of +24VDC/2.7A (connector J2) is used. One integral part of the supply is the cooler, which is designed for an upright working position of the PBX. It is not allowed to operate the PBX in a horizontal position (lying on a table etc). - Page 13 ® - OMEGA 48 Installation manual The lever switch located on the right side of the chassis serves for switching the power on and off. The mains part is protected against contact with live parts by a cover which also covers the actual power source.
-
Page 14: Display
® - OMEGA 48 Installation manual 3.4. Display The LCD display is fitted on an independent holder and connected by means of a flat cable to the motherboard. It displays the current version of the PBX firmware, the date, time and data about state of line. -
Page 15: Other Separate Components
® - OMEGA 48 Installation manual Other separate components 4. Extender module up to 12 ports (order No 1880010) The extender module is intended for mounting in the basic PBX module. It enables the extension of the PBX by 12 lines (6 modules with interfaces) + insert 1 module AUDIO IN/OUT intended for example for the system IVR, automatic operator, recording of calls,…... -
Page 16: Extender Module Up To 24 Ports (Order No. 1880011)
® - OMEGA 48 Installation manual 5. Extender module up to 24 ports (order No. 1880011) Extender module is mounted in the basic module of a PbX. It enables to extend PBX for other 24 ports It is mounted to second level chassis by seven screws M3 (are include in package). -
Page 17: Interface Modules
® - OMEGA 48 Installation manual 6. Interface modules Total number Order No Name of module Internal designation 2N 1880030 Module 2x internal line OL2VL Module 2x system digital 1880038 OL2SYSD telephone 1880039 Module 2x system telephone OL2SYS module 1x external line / 1x... -
Page 18: Module 2X Internal Line (Order No 1880030)
® - OMEGA 48 Installation manual 6.1. Module 2x internal line (order No 1880030) The internal line interface works with a line voltage of 24V and line current of approximately 30 mA. It is symmetrical, which guarantees good resilience against The nominal impedance is 600 Ω. -
Page 19: Module 2X System Telephone (Order No 1880039)
® - OMEGA 48 Installation manual 6.2. Module 2x system telephone (order No 1880039) This is a four-wire interface, which must be respected for designing circuits around the building. The conductors A-B used for call transmission are without DC potential. The conductors C-D serve for data transmission and also supply the system telephone with voltage -24V. - Page 20 ® - OMEGA 48 Installation manual Notes: • In no case may system telephones be connected in parallel. • LEDs (D1,D2) on the module signal by flashing ongoing communication between the PBX and system telephone. • If the C and D connectors are confused in the system cabling, the system telephone will not work but will not be damaged.
-
Page 21: Module 2X System Telephone - Digital (Order No. 1880038)
® - OMEGA 48 Installation manual 6.3. Module 2x system telephone – digital (order No. 1880038) Module for the connection of two digital system telephones 2N StarPoint. When connecting to the RJ-45 connector, pins 4, 5 are used and the order of the conductors in the pair is not emphasized. -
Page 22: Module 1X External Line / 1X Internal Line (Order No 1880031)
® - OMEGA 48 Installation manual 6.4. Module 1x external line / 1x internal line (order No 1880031) Combined module for connecting one analogue external (J2) and one analogue internal line (J3). The module allows the receipt of caller identification (Caller ID –... -
Page 23: Module 1X External Line/1Xinternal Line With 16 Khz Tariff Pulse Receivers (Order No1880032)
® - OMEGA 48 Installation manual 6.5. Module 1x external line/1xinternal line with 16 kHz tariff pulse receivers (order No1880032) This module is completely identical with the previous one but also contains a 16 kHz tariff pulse receiver (T2). The frequency and sensitivity of the receivers are set precisely and optimally by the manufacturer. -
Page 24: Module Gsm 900/1800/1900 Mhz Pro 1-2 Gsm
® - OMEGA 48 Installation manual 6.6. Module GSM 900/1800/1900 Mhz pro 1-2 GSM Order No 1880041 – for 1 GSM connection MC55/MC55i Order No 1880042 – for 2 GSM connection MC55/MC55i Order No 1880043 – for 1 GSM connection MC56/MC55i Order No 1880044 –... -
Page 25: Module Isdn S (Order No 1880020)
® - OMEGA 48 Installation manual The GSM module makes it possible to: • automatically make calls to the GSM network and thus significant reduction in telephone bill of your firm. • receive incoming calls and, in connection with the DISA code distribute them to the branches (analogue internal lines, system lines). - Page 26 ® - OMEGA 48 Installation manual - connector for connecting to motherboard (or extender module) (connector is secured against incorrect connection by the blanking off of PIN 5,6,7,8). - connector for connecting ISDN line from equipment ISDN NT (end point).
-
Page 27: Module Voip (Order No 1880021)
6.10. Module VoIP (Order No 1880021) ® The VoIP Module is designed exclusively for 2N OMEGA 48 PBXs as a VoIP module for LAN and Internet voice services. The VoIP Module is to be installed to the left from the power supply unit, above the main board. -
Page 28: Detailed Installation
® - OMEGA 48 Installation manual - connector for the connection of adapter for an external USB device (USB FLASH disk)*. J5-J7 - connector for maintenance use - connector for connection of a functional floor* SW2 - RESET button. Pressing this button will RESET the CPU board. -
Page 29: Unpacking And Checking
® - OMEGA 48 Installation manual Note: In places with a poor level of GSM signal it is possible to use an independent (external) GSM gateway which can be installed at a distance of up to 500 m from the PBX (!) in a place with a good GSM signal (on high building, hill etc.) and ensure both cheap access... -
Page 30: Installation Of Extender Module Up To 24 Lines
® - OMEGA 48 Installation manual 7.4. Installation of extender module up to 24 lines As the first an extender module fix with seven screws to basic chassis, then connect DATA and power supplying cable between main board (connectors J19, J27) and extender bard (connectors J1, J2, J3). -
Page 31: Installation Of Voip Module
® - OMEGA 48 Installation manual 7.6. Installation of VoIP module Remove the display holder by unscrewing 2 screws on the chassis. Remove by turning the end cap on the left-hand side of the chassis for J1 and J2 connectors. - Page 32 ® - OMEGA 48 Installation manual Remove 2 JUMPERs, J8/J9, from the main board. Unscrew 2 M3 screws from the left and right corner of the main board (these will be used for fixing of the VoIP module) and replace them with the spacers attached.
- Page 33 ® - OMEGA 48 Installation manual Installation manual www.2n.cz...
- Page 34 ® - OMEGA 48 Installation manual Installation manual www.2n.cz...
- Page 35 ® - OMEGA 48 Installation manual Insert the two connectors attached into the J26 and J15 connectors on the main board. Installation manual www.2n.cz...
- Page 36 ® - OMEGA 48 Installation manual Place the VoIP module onto the connectors inserted and fix it with two screws. Place the module onto the connectors carefully to avoid shifting of the individual PINS. Installation manual www.2n.cz...
- Page 37 ® - OMEGA 48 Installation manual Installation manual www.2n.cz...
- Page 38 ® - OMEGA 48 Installation manual Installation manual www.2n.cz...
- Page 39 Connect the USB cable inserted (into J2 connector) and connect it with your When connecting for the first time it is necessary to install USB-COM driver (on the “data/2N OMEGA 48/VoIP/DriverUSB/” CD attached). A new COM PORT is added after installation. After this you may connect by hyper-terminal and perform the necessary settings.
- Page 40 ® - OMEGA 48 Installation manual Serves for network parameter setup (IP address/network mask,.). After the network parameters have been set up you may disconnect. Always RESET the module using the SW1 button after disconnecting the USB cable. Connect a standard direct Ethernet cable into the J1 connector.
-
Page 41: Mounting Pbx On Wall
® - OMEGA 48 Installation manual 8. Mounting PBX on wall Using the drilling template (on scale 1:1), mark two holes on the wall (for requirements for location see above, paragraph Selection of location for PBX). Using an 8 mm masonry bit, drill holes and put rawlplugs in them. Screw the hanging element of the PBX into the upper holes using two screws (it is fixed to the chassis on delivery). -
Page 42: Connection To Mains Network
® - OMEGA 48 Installation manual all other lines!), and the principle applies that earthing should be as good as possible. The ideal solution is thus a yellow-green copper wire with a cross section of at least 4 mm , leading for example from an earthing strip in the main switchbox. -
Page 43: Minor Servicing Tasks
® - OMEGA 48 Installation manual 9. Minor servicing tasks 9.1. Replacement of lithium battery The battery must be replaced if its voltage drops below 2.5 V. But we recommend that the battery be replaced at least once every three years, even if its voltage is correct. -
Page 44: Expanding Pbx
® - OMEGA 48 Installation manual 10. Expanding PBX The PBX can be expanded as desired by buying further modules up to the maximum configuration (48 lines). But it is necessary to be aware that every expansion constitutes intervention in the installation, and if done inexpertly it could threaten the functioning of the whole. -
Page 45: Technical Parameters
® - OMEGA 48 Installation manual 12. Technical parameters Nominal mains voltage 110 - 230 V Tolerance of mains voltage +/- 10 % Nominal frequency 50 Hz Input max. 90 VA Fuse F4A/250V Climatic conditions Temperature range +15…+45 °C. Relative air humidity Max. - Page 46 ® - OMEGA 48 Installation manual External line parameters 600 Ω +/- 20 % / ETSI Analogue input impendence Number of connected wires Type of connector RJ-45 (PIN 4,5) 16 kHz pulse receiver parameters Impedance of external line with 16 kHz tariff /Z/ = 200 Ω...
- Page 47 ® - OMEGA 48 Installation manual DTMF dialling receive parameters Receiver sensitivity -27 dB DTMF dialling send parameters: Frequencies According to Q23 Send level of lower frequency group -10 dB to -6 dB Send level of higher frequency group -8 dB to -4 dB...
- Page 48 ® - OMEGA 48 Installation manual Notes: Notes: Installation manual www.2n.cz...
