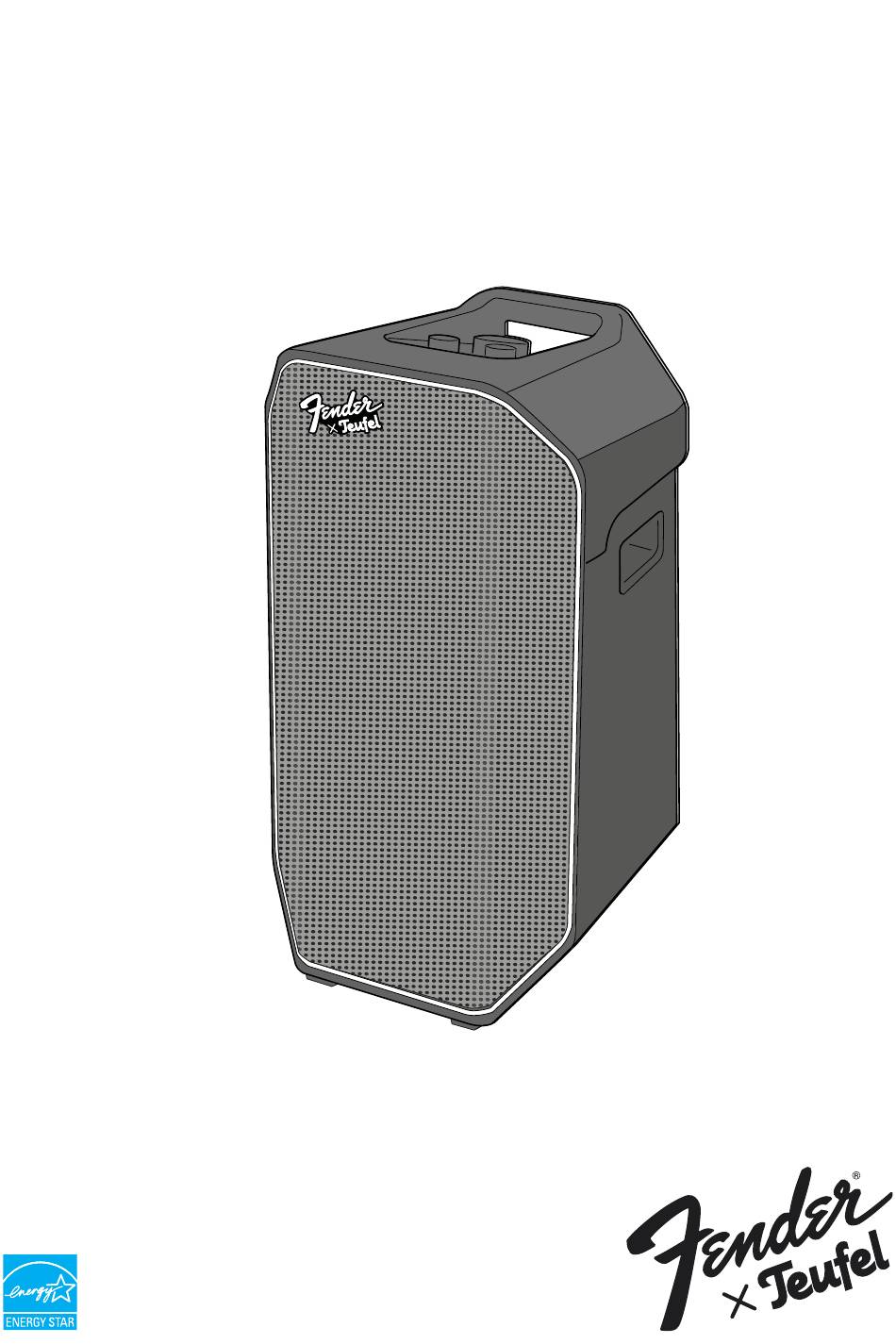

  • Page 1 Technical description and user manual FENDER x TEUFEL ® ROCKSTER AIR 2 ® Bluetooth® speaker...
  • Page 2: Table Of Contents

    Troubleshooting ........31 Pausing and starting playback ..15 Perform a hardware reset ....32 Playback next track (Bluetooth®mode) ......15 Technical data ........33 Adjusting the bass level ..... 16 Adjusting the Treble level ....16 FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 3: Basic Notes And Information

    Qualcomm® aptX™ HD are products from Qualcomm Technologies International, © Lautsprecher Teufel GmbH Ltd. FENDER® x ROCKSTER® AIR 2 UM US V1.0 PD Qualcomm® is a trademark of Qualcomm Incorporated, registered in the USA and Applicability of the user other countries.
  • Page 4: Fcc Statement

    End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 5: Data Protection And Advertising Declaration

    Please refer to the proof of purchase us.teufelaudio.com/support (enclosed with the loudspeaker), teufelaudio.com/support or the order confirmation that you teufel.de/support received as a PDF document. 2. Serial number Contact: ► Refer to the rear of the loudspeaker. us.teufelaudio.com/contact teufelaudio.com/contact teufel.de/kontakt FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 6: Safety

    Before starting up the loudspeaker: NOTE ► Read the user manual and Additional information and tips. safety booklet carefully. ► Keep the instructions in a safe place so that they can be passed on to third parties. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 7: Scope Of Supply

    ® ® (2) mains cable (C13 / 1.2 m) ► Check the scope of supply for completeness. ► Check the scope of supply for damage. ► Keep the original packaging during the warranty period. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 8: Operating And Display Elements

    Displays an active source. AUX playback (analog) – p. 17  Source LEDs INSTRUMENT INSTRUMENT IN – p. 18  LINE IN PARTY LINK – p. 20  MICROPHONE MIC . LINE IN – p. 19  FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 9 Playback next track (Bluetooth mode) ® (11) Treble controller Adjusting the Treble level – p. 16 (12) Bass controller Adjusting the bass level – p. 16 Master volume (13) Adjusting the volume – p. 15 controller FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 10: Connections

    INPUT VOLUME USB OUT BLUETOOTH AUX IN INSTRUMENT IN MIC LINE IN LINE IN EXT BATTERY DC IN COMPANION IN COMPANION OUT AUTO POWER POWER 100 240V AC 50/60Hz 100W Connections on the back FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 11 (Connection for external devices) (28) INSTRUMENT IN Plug in INSTRUMENT IN – p. 18 (29) COMPANION IN Plug in PARTY LINK – p. 20 (30) COMPANION OUT Plug in (31) Power Plug in Connection – p. 12 FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 12: Startup

    2. Connect the mains cable (2) to a mains ☑ The loudspeaker is set up. socket. ☑ The loudspeaker is connected. NOTE The loudspeaker has an opening at the bottom for mounting on a PA stand with 1.4 in pins. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 13: Operation

    1. Press Power button (8) and hold it for 2 seconds, until an LED animation runs and sequence of tones sounds. 2. Wait until the loudspeaker is fully started and the LEDs light up continuously. ☑ The loudspeaker is switched on. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 14: Bluetooth

    Deleting the Bluetooth® list AUTO POWER ON LOW ► Press the Bluetooth® button (9) and ON HIGH keep it pressed for 8 seconds. ☑ The Bluetooth® list is deleted and a signal tone sounds. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 15: Adjusting The Volume

    ► Press the Play/Pause button (10) again. counterclockwise. ☑ Playback is started/unmuted ☑ The volume is lowered. (depending on the source). Playback next track (Bluetooth®mode) Press the Play/Pause button (10) 2 x . ► FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 16: Adjusting The Bass Level

    The treble level is gradually increased (up to +10 dB). (up to +10 dB). NOTE NOTE The Bass level LEDs (5) indicate the Bass The Treble level LEDs (4) indicate the level. treble level. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 17: Playback Sources (Source)

    AUX IN Any external player that has an AUX connection can be connected. INPUT VOLUME BLUETOOTH AUX IN INSTRUMENT IN MIC LINE IN LINE IN COMPANION IN COMPANION OUT AUTO POWER ON LOW ON HIGH FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 18: Instrument In

    (22) so that the signal sounds clear and clean (not distorted) even during loud passages. INPUT VOLUME BLUETOOTH AUX IN INSTRUMENT IN MIC LINE IN LINE IN COMPANION IN COMPANION OUT AUTO POWER ON LOW ON HIGH FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 19: Mic . Line In

    The volume is set and the microphone can be used. MIC LINE IN INPUT VOLUME BLUETOOTH AUX IN INSTRUMENT IN MIC LINE IN LINE IN COMPANION IN COMPANION OUT AUTO POWER ON LOW ON HIGH FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 20: Party Link

    Bluetooth® signal from the player can be PARTY LINK PARTY LINK CONFIGURATION SETUP used as a source. MONO MASTER LEFT COMPANION RIGHT MONO MASTER LEFT COMPANION RIGHT ► Switch on the loudspeakers to be connected. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 21: Party Link Via Cable Connection

    Suitable XLR cables for connecting the setting (MONO, LEFT, RIGHT). ☑ loudspeaker are available in our web shop The LED of the selected setting lights ("Accessories" section). up blue. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 22 1. The MASTER LED must light up. If MASTER MONO  COMPANION MONO necessary press CONFIGURATION MASTER LEFT  COMPANION RIGHT button (17) and set as MASTER. MASTER RIGHT  COMPANION LEFT ☑ The MASTER LED lights up. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 23: Battery

    Only use the mains cable provided. The fully charged battery allows an operating time of approx. 56 hours at The integrated rechargeable battery starts medium volume. charging as soon as the loudspeaker is connected to a mains socket. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 24: Displaying The Charge Level

    2. Unlock Teufel battery pack (38) on the top of the battery (39) and pull it off in the direction of the center of the battery. ☑ The battery has been removed. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 25 If the battery contacts are too bent or place. Make sure that the cable is not broken, do not use the battery! trapped. ► The battery cover (37) must lock noticeably and audibly. ☑ The battery is correctly inserted. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 26: Eco Mode

    5 seconds. switch-off (standby mode) is reduced. ☑ A signal tone sounds and the signal Auto Power / Network Standby mode – p.  tones are activated. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 27: Connecting External Batteries

    BATTERY socket (25) . ☑ The external battery is connected, the LED (40) lights up. NOTE A special connection cable is required to connect an external battery. The connection cable is not included in the delivery scope. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 28: Using A Power Bank

    The power bank function continues even when the loudspeaker is in standby mode. The charging voltage is 5 V at a maximum of 2 amps. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 29: Auto Power / Network Standby Mode

    NOTE NOTE When ECO mode is activated, the time for The Auto Power ON function is not Standby mode is reduced to 5 minutes. available for INSTRUMENT IN and MIC . LINE IN. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 30: Cleaning And Care

    3. Then rub damp surfaces dry with a dry, soft cloth without applying pressure. NOTE ☑ The loudspeaker has been cleaned. Fully charge the battery at least once a month if stored for a long time without use. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 31: Troubleshooting

    ► Observe the manufacturer's quiet active. documentation for the external (Android systems only) player. ► Loudspeaker does not A system error has Perform a hardware reset – p. 32 respond occurred FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 32: Perform A Hardware Reset

    ■ Disconnect power supply and restart loudspeaker. ► Press the Power button (8) and Play/ Pause button (10) at the same time and hold for 5 seconds. ☑ A hardware reset is carried out. FENDER® x TEUFEL ROCKSTER® AIR 2...
  • Page 33: Technical Data

    2400–2483.5 MHz <13 dBm/20 mW Lautsprecher Teufel GmbH hereby declares that the type of radio equipment FENDER® x ROCKSTER® AIR 2 complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: teufel.de/konformitaetserklaerungen...
