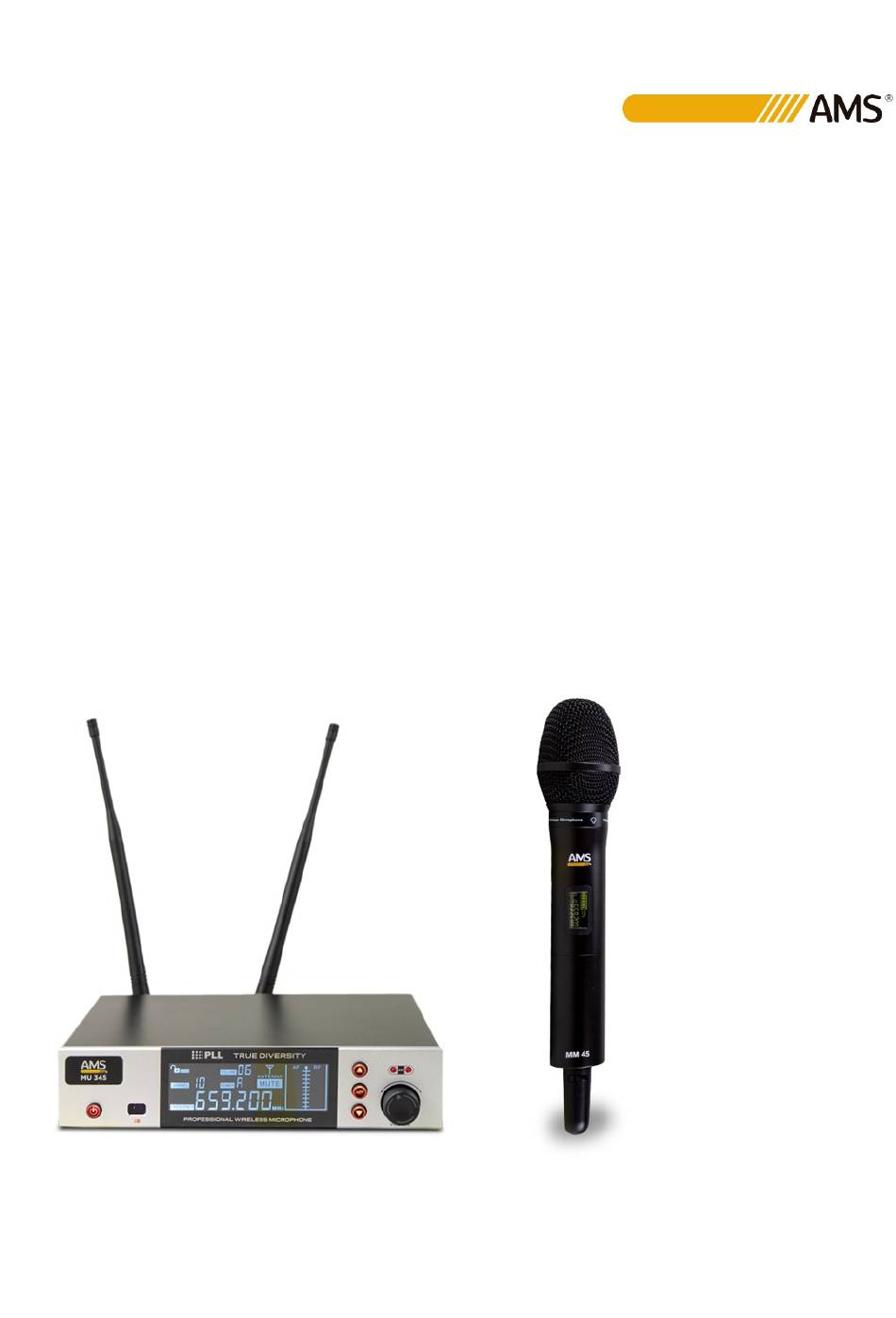

  • Page 1 MU 345+MM 45 User Manual - Version 1.0...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS 1. Read the instructions of this manual. 2. Keep these instructions in a safe place. 3. Heed all warnings. 4. Follow all instructions. 5. Please, respect your country safety regulations. 6. Don’t use this device close to the water or high humidity places. Clean only with dry cloth. 7.
  • Page 3 OVERVIEW MU 345+MM 45 is a professional 1-channel wireless system in UHF band. Its PLL system allows a great signal stability, making it very suitable for live appliances, touring or even conference rooms. The receiver offers up to 44 different channels (according to the bandwidth). The synchronism is easy, it is only necessary to press the SCAN button twice in the receiver and both elements (receiver and microphone) will pair through IR.

  • Page 4: Front Panel

    IR synchronism between receiver and microphone. LCD display with AF, RF, gain and frequency information. Manual adjustment, volume control. Balanced and mix unbalanced outputs. FUNCTIONS MU 345 (RECEIVER) FRONT PANEL 1. Power switch 2. IR port 3. LCD screen DISPLAY 4.

  • Page 5: Rear Panel

    REAR PANEL 1. DC power input (external main supply) 2. Unbalanced output (Jack ¼”) 3. Balanced output (XLR 3) 4. BNC type antenna connectors (A/B) MM 45 (Handheld microphone transmitter) 1. Cartridge 2. LCD screen display 3. Battery socket inside (screw it an replace with AA type batteries) 4.

  • Page 6: Installation

    INSTALLATION SETTINGS Manual channel and frequency selection Press the UP or DOWN buttons to change the channel that will affect the frequency showed on the display. Manual channel and frequency selection 1. Turn on the power for receiver and handheld/bodypack transmitter, then press SCAN on the receiver, frequency will blink.

  • Page 7: Indicaciones De Seguridad

    INDICACIONES DE SEGURIDAD 1. Lea las instrucciones de este manual. 2. Guarde estas instrucciones en un lugar seguro. 3. Respete todas las advertencias. 4. Siga todas las instrucciones. 5. Por favor, respete las normas de seguridad de su país. 6. No utilice este dispositivo cerca del agua o lugares con alta humedad. Límpielo sólo con un paño seco.

  • Page 8: Descripción General

    DESCRIPCIÓN GENERAL MU 345+MM 45 es un sistema inalámbrico profesional de 1 canal en la banda UHF. Su sistema PLL permite una gran estabilidad de la señal, por lo que es muy adecuado para aplicaciones en vivo, touring o incluso salas de conferencias.

  • Page 9: Panel Frontal

    Sincronismo por IR entre receptor y micrófono. Pantalla LCD con información de AF, RF, ganancia y frecuencia. Ajuste manual y control de volumen Salidas balanceada y desbalanceada. FUNCIONES MU 345 (RECEPTOR) PANEL FRONTAL 1. Intrerruptor de encendido 2. Puerto IR 3. Pantalla LCD 4.

  • Page 10: Panel Trasero

    PANEL TRASERO 5. Entrada alimentación DC (alimentador externo) 6. Salida desbalanceada (Jack ¼”) 7. Salida balanceada (XLR 3) 8. Conectores de antena tipo BNC (A/B) MM 45 (Micrófono de mano) 1. Cápsula 2. Pantalla LCD 3. Compartimento para pilas (desenrosque y utilice 2 pilas tipo AA) 4.

  • Page 11: Instalación

    INSTALACIÓN AJUSTES Selección manual de canales y frecuencias 1. Encienda el receptor y el micrófono de mano, entonces presione ACT en el receptor, la frecuencia parpadeará. 2. Seleccione la frecuencia deseada con los botones UP/DOWN. 3. Ponga el micrófono de mano frente al puerto IR, a una distancia de 30cm. 4.
