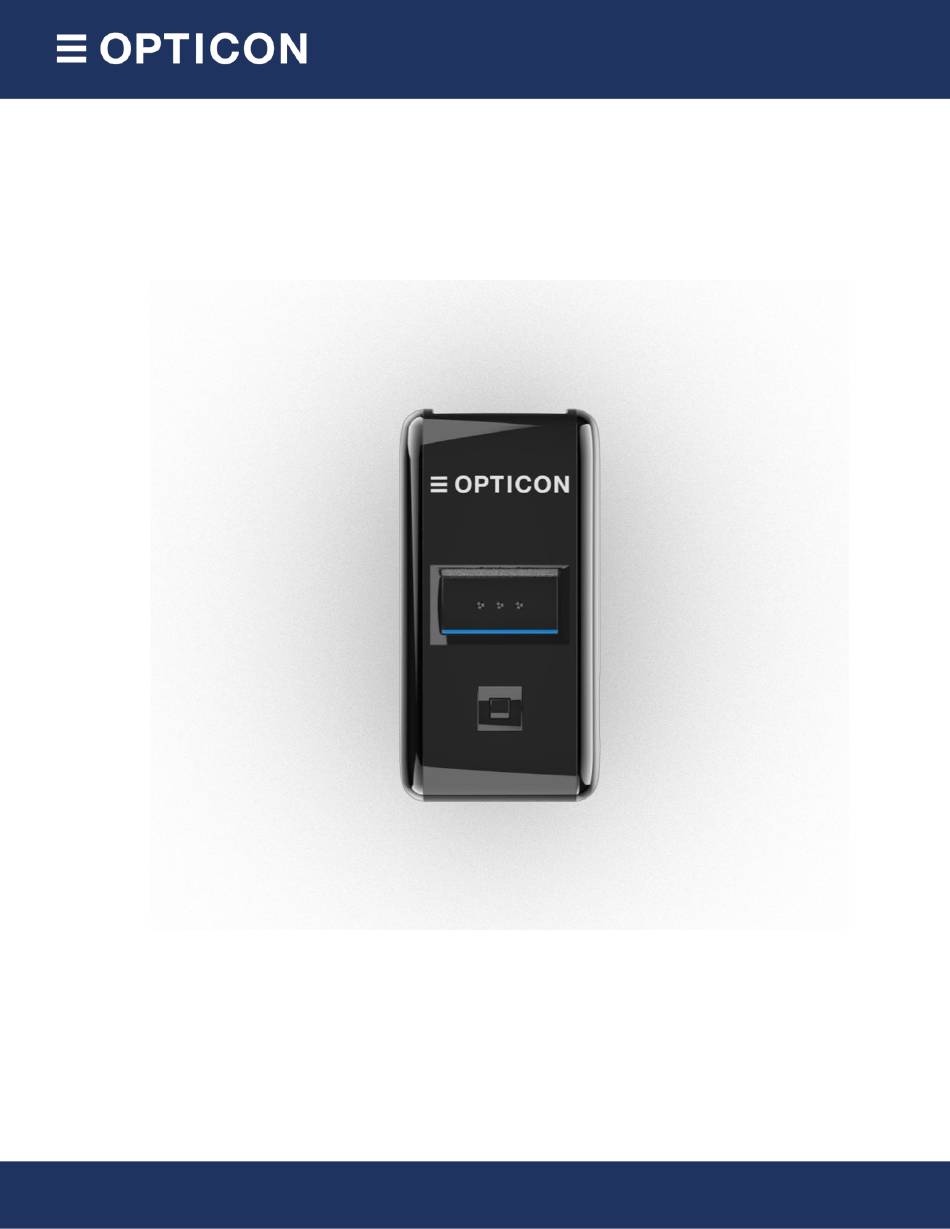

- Page 1 User manual - OPN-2500 - Rev 1.0 OPN-2500 User manual rev 1.0 Page 1 of 30...
- Page 2 In such cases, standard repair charges will apply. If a product is returned under warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect, consequential, or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages.
- Page 3 User manual - OPN-2500 - Rev 1.0 Revision History Product Name : User manual OPN-2500 Revision Date Page Section Description of Changes 21/05/2024 First official release Page 3 of 30...
-
Page 4: Table Of Contents
User manual - OPN-2500 - Rev 1.0 Table of Content INTRODUCTION ................................5 OVERVIEW ................................... 6 ................................6 EATURES ................................. 7 PPLICATIONS GETTING STARTED ............................... 8 OPN-2500 ............................8 NBOXING OPN-2500............................8 HARGING OPN-2500............................8 OWERING ..............................8 ONNECTING TO EVICES SCAN PROCEDURE ............................... -
Page 5: Introduction
In this manual, you will find detailed instructions on how to set up your OPN-2500, connect it to different devices, and perform barcode scanning tasks efficiently. We will cover everything from basic operations to advanced features, ensuring that you can maximize the capabilities of your scanner. -
Page 6: Overview
2 Overview The OPN-2500 barcode companion scanner is an innovative device designed to streamline barcode scanning tasks with ease and efficiency. In this chapter, we will provide you with an overview of the OPN-2500, highlighting its key features and capabilities. -
Page 7: Applications
User manual - OPN-2500 - Rev 1.0 2.2 Applications The versatility of the OPN-2500 makes it suitable for a wide range of applications, including: • Bluetooth BLE HID mode (Keyboard) • Bluetooth BLE mode (for OptiConnect) • OptiConnect for iOS, Mac OS, Android and Windows... -
Page 8: Getting Started
3.2 Charging Your OPN-2500 Before using your OPN-2500 for the first time, it is important to note that the scanner will arrive with a less than full battery out of the box. While it is not mandatory to fully charge the battery before initial use, ensuring that the battery is adequately charged is still recommended for optimal performance. -
Page 9: Scan Procedure
5. Repeat the scanning process as needed for additional barcodes. * If the OPN-2500 is currently not connected by Bluetooth or USB or is in data collector mode, the good-read indication is generally shorter, to indicate the barcode is stored in memory instead of being transmitted. -
Page 10: How To Connect To Bluetooth
2. Ensure that Bluetooth is enabled on the device you wish to connect to, such as a smartphone or tablet. 3. Press and hold the Function key on the OPN-2500 scanner for 3 seconds. The LED starts blinking blue indicating that the scanner is in pairing mode. -
Page 11: Using Opticonnect With Usb
USB-CDC (OptiConnect) 6 How to connect to USB The OPN-2500 scanner can also connect directly to computers and other devices via USB for wired data transmission and charging. The following USB operating modes are available, which will be described in the following chapters: •... -
Page 12: Usb Serial (Com) Barcode Scanner
User manual - OPN-2500 - Rev 1.0 6.1 USB Serial (COM) barcode scanner The OPN-2500 can be used like a standard USB serial barcode scanner by reading the label below: USB-VCP (C01) Follow these steps to connect your OPN-2500 scanner via USB in Serial mode: 1. -
Page 13: Batch Modes (Usb-Msd / Osecomm)
*Note that the use of the “quantity field” is not supported in OPN-2001 mode”. 6.4 Batch modes (USB-MSD / OseComm) The batch modes allow the OPN-2500 to save scanned barcode data into a file on the device, and for the devices to deliver the scanned barcode data file to a local PC. -
Page 14: Usb Mass Storage Device (Msd)
User manual - OPN-2500 - Rev 1.0 6.4.2 USB Mass Storage Device (MSD) To set the scanner into USB-MSD mode please scan this configuration label: MSD mode (C04) When the scanner is connected to a Laptop/PC/MAC in MSD mode a file called 'SCANNED.TXT' is automatically generated using the data from the database file. - Page 15 User manual - OPN-2500 - Rev 1.0 Important notes: • Since the file system is read-only by default, use the +-FORMAT-+ label on chapter 6.4.1 Deleting the barcode to erase the data after all barcodes have been copied from the disk.
-
Page 16: Data Collector Mode (Osecomm)
User manual - OPN-2500 - Rev 1.0 6.4.4 Data Collector mode (OseComm) Like USB-MSD mode, the scanner can be configured as OseComm compatible data collector and output the barcode data as file by its USB serial port. Scan the configuration label below to enter Data collector mode: Data collector Mode (OPND) When the scanner is connected to a PC in data collector mode (OseComm) a file called 'SCANNED.TXT' is... - Page 17 User manual - OPN-2500 - Rev 1.0 Next, go to ‘Protocol Tasks’, select ‘Receive File(s)’ under ‘Task Group’ and press ‘Add task’. In the Receive Files(s) Dialog the task can be configured as shown in the following image. Page 17 of 30...
-
Page 18: Barcode Database Files
User manual - OPN-2500 - Rev 1.0 Make sure the OseComm application has permission to write files on the selected locations folder. Finally, select ‘Options’ > ‘Start Protocol’. The file will now automatically be downloaded to the PC and deleted from the scanner when the scanner is connected to the correct comport. -
Page 19: Manually Enter Firmware Update Mode
5. Select the alternative USB driver (USB-CDC) as described in the following section If there are some issues using the Opticon driver it is possible to use the alternative USB-CDC driver (also used by most Opticon 2D barcode readers). This can be helpful for Linux and MAC compatibility. Also, if you have a driver issue but need to update the firmware, it is possible to use this CDC driver. -
Page 20: Bluetooth Connection Issues
5. If you’ve previously connected in Keyboard/HID mode and switched to OptiConnect mode, delete the existing pair on the host device. If reconnecting keeps failing, it’s most likely that either the OPN-2500 or the host device has lost its pairing / bonding information. -
Page 21: Function-Key Behavior
User manual - OPN-2500 - Rev 1.0 A.2 Function-key behavior By default, the function key can be used to remove a previously read barcode Enable/disable from the database or reduce its quantity by one. By disabling the delete key this delete key option can be disabled. -
Page 22: Appendix B: Database Output Formatting
User manual - OPN-2500 - Rev 1.0 Appendix B: Database output formatting In batch mode, the default output format of each record in the database file (SCANNED.TXT) is: [Barcode],[serial #],[hh:mm:ss],[dd/mm/yyyy] However, batch mode allows you to customize this format to make it suitable for your own application. The following aspects of the output format are configurable. - Page 23 User manual - OPN-2500 - Rev 1.0 Page 23 of 30...
- Page 24 User manual - OPN-2500 - Rev 1.0 Page 24 of 30...
- Page 25 User manual - OPN-2500 - Rev 1.0 Page 25 of 30...
- Page 26 User manual - OPN-2500 - Rev 1.0 Page 26 of 30...
-
Page 27: Field Output Sequence
User manual - OPN-2500 - Rev 1.0 B.1 Field Output Sequence To change the output sequence of the various fields in the output file, use the labels below. Page 27 of 30... - Page 28 User manual - OPN-2500 - Rev 1.0 Page 28 of 30...
-
Page 29: Appendix C: Maintenance And Safety
Appendix C: Maintenance and safety Proper maintenance and adherence to safety precautions are essential for ensuring the optimal performance and longevity of your OPN-2500 barcode scanner. This chapter provides guidelines for maintaining your device and ensuring safe usage. C.1 Maintenance Guidelines Follow these maintenance guidelines to keep your OPN-25000 scanner in optimal condition: 1. -
Page 30: Appendix D: Firmware Version History
User manual - OPN-2500 - Rev 1.0 Appendix D: Firmware Version history Version Changes Date FBNV0110 First beta release Mar 28, 2024 FBNV0114 - Fixed various issues with BLE HID (mostly under Windows) May 1, 2024 - Improved connection stability and range...
