QK-A037
LED Indicator
The A037 is equipped with three LEDs that indicate power, WiFi and Data status respectively.
The status LEDs on the panel provide information about port activity and system status:
— Data: This LED flashes when any data is output to the NMEA 2000 bus.
— WiFi: The LED flashes for each valid NMEA message sent to the WiFi output.

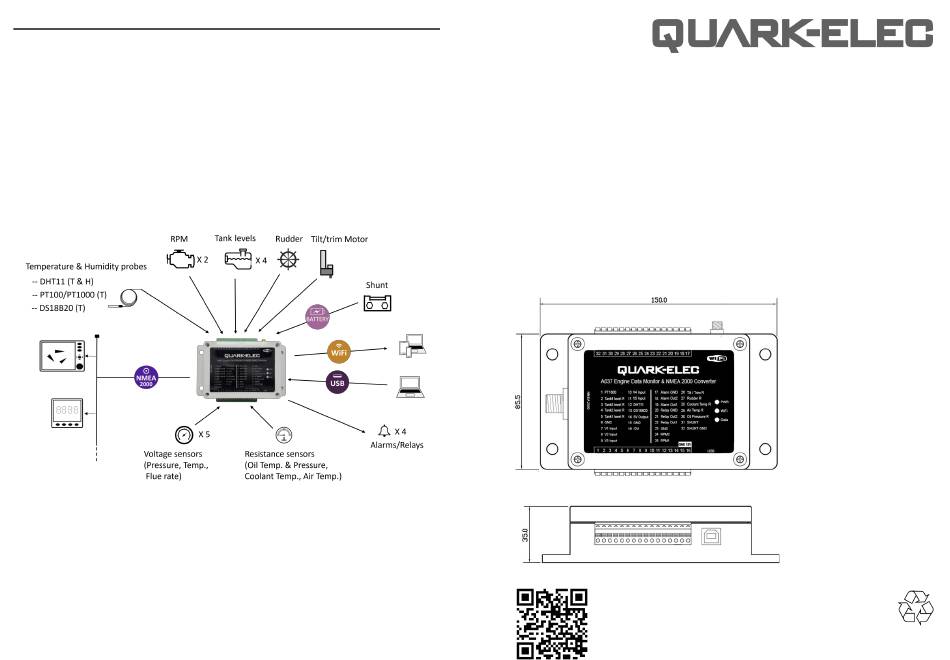

Connection Overview
The following is an example of an A037 setup. This gives an idea of the connections that need
to be made to install A037. All these connections must be taken into consideration when
locating a suitable mounting location for the A037.
All sensor inputs operate independently and do not interfere with one another. Simply
connect the sensors you need and leave the others unconnected.
Disclaimer: This product is designed to aid navigation and should be used to augment normal navigational
procedures and practices. It is the user's responsibility to use this product prudently. Neither Quark-elec, nor
their distributors or dealers accept responsibility or liability either to the product user or their estate for any
accident, loss, injury or damage whatsoever arising out of the use or of liability to use this product.
Email: info@quark-elec.com
V1.0 (05/24)
A037
Engine Data Monitor & NMEA 2000
Converter
Enable Analogue Signal Conversion to NMEA 2000 Messages
Engine Data Monitoring and Tank Level Observation
Pressure, Temperature, and Humidity Measurement
Tilt/Trim and Rudder Position Observation
Scan here for this Device's User Manual.
Set-Up guide
RPM Tracking for Engine Speed
Alarm Status Observation
Battery Status Check
Please recycle your packaging
All products are CE, RoHS certified
More information at www.quark-elec.com
