Operating Instruction Manual

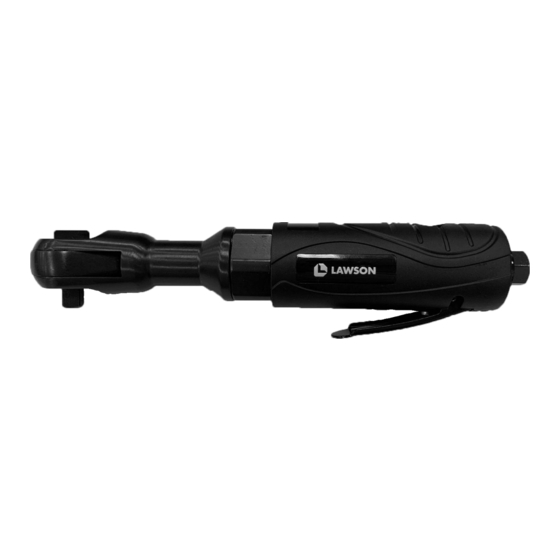

Pneumatic Ratchet Wrench 3/8"
1638956
Read through this operating instructions manual before using the product. Protecting yourself and
others by applying the safety information listed in the manual. Failure to comply with the instructions
could result in personal injury and/or damage to the product or property. Please retain instructions for
future references
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lawson 1638956
Summary of Contents for Lawson 1638956
- Page 1 Operating Instruction Manual Pneumatic Ratchet Wrench 3/8” 1638956 Read through this operating instructions manual before using the product. Protecting yourself and others by applying the safety information listed in the manual. Failure to comply with the instructions could result in personal injury and/or damage to the product or property. Please retain instructions for...
-
Page 2: Specifications
SPECIFICATIONS: Air Inlet Pressure (PSI) …………………………………………………… 90 Free Speed (RPM) ………………………………………………………... 180 Torque (Ft-lb) ……………………………………………………………… Avg. Air Consumption (cfm) ………..…………….……………………… Air Inlet (NPT) …………………………..………….……………………... 1/4” Air Hose ID ………………………………………………………………… 3/8” Length (Inch) ………………………………..………….…………………. 11.42 Weight (Lbs) …………………………………..………….……………….. 3.15 AIR SUPPLY: Tools of this class operate on a wide range of pressures. -
Page 3: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST Part Name Part Name Part Name Motor Housing w/ Bushing Rear End Plate Drive Bushing Throttle Lever Steel Ball Ratchet Yoke Cylinder Reverse Button O-Ring Rotor Spring O-Ring Rotor Blade Lock Pin Throttle Pin Front End Plate Washer Spring Ball Bearing... - Page 4 8770 W. Bryn Mawr, Suite 900 Chicago, IL 60631 (773) 304-5050...
- Page 5 Mode d’emploi Clé à cliquet pneumatique de 3/8 po (9,5 mm) 1638956 Lisez le présent mode d'emploi avant d'utiliser le produit. Protégez-vous et protégez les autres en appliquant les consignes de sécurité mentionnées dans le mode d'emploi. Le non-respect des consignes peut entraî...
-
Page 6: Spécifications
SPÉ CIFICATIONS : Pression de la prise d'air (PSI) ............Vitesse de rotation à vide (tr/min) ............Couple (pi-lb) ..................Moy. Consommation d'air (pcm) ............Prise d'air (NPT) ................1/4 po ID de tuyau à air ................3/8 po Longueur (pouces) ................11,42 Poids (lb) ................... - Page 7 VUE É CLATÉ E ET LISTE DES PIÈ CES Nom de pièce Qté Nom de pièce Qté Nom de pièce Qté Boî tier du moteur avec Bague Plaque d'extrémité arrière bague d'entraînement Levier d'étranglement Bille en acier Fourche de cliquet Bouton d’inversion Goupille Vérin...
- Page 8 8770 W. Bryn Mawr, Suite 900 Chicago, IL 60631 (773) 304-5050...
