Operating Instruction Manual

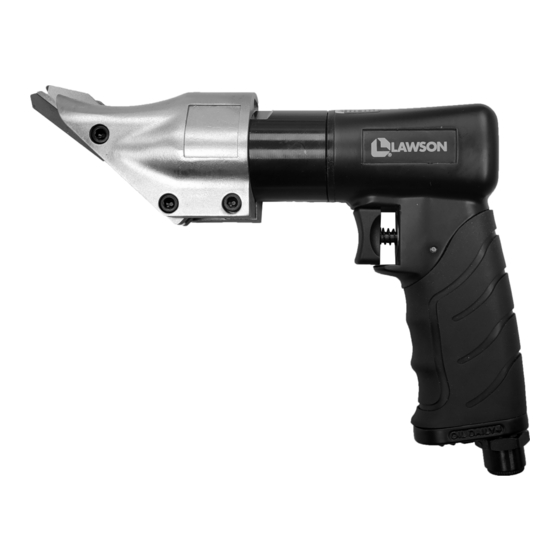

Air Metal Shear
1638974
Read through this operating instructions manual before using the product. Protecting yourself and
others by applying the safety information listed in the manual. Failure to comply with the instructions
could result in personal injury and/or damage to the product or property. Please retain instructions for
future references
Advertisement
Table of Contents
Related Manuals for Lawson 1638974
Summary of Contents for Lawson 1638974
- Page 1 Operating Instruction Manual Air Metal Shear 1638974 Read through this operating instructions manual before using the product. Protecting yourself and others by applying the safety information listed in the manual. Failure to comply with the instructions could result in personal injury and/or damage to the product or property. Please retain instructions for...
-
Page 2: Specifications
SPECIFICATIONS: Air Inlet Pressure (PSI) …………………………………………………… 90 Free Speed (RPM) ………………………………………………………... 2,500 Avg. Air Consumption (cfm) ………..…………….……………………… Air Inlet (NPT) …………………………..………….……………………... 1/4” Air Hose ID ………………………………………………………………… 3/8” Length (Inch) ………………………………..………….…………………. 8.46 Weight (Lbs) …………………………………..………….……………….. 2.64 AIR SUPPLY: Tools of this class operate on a wide range of pressures. It is recommended that the dynamic air pressure be maintained at 90P.S.I., higher pressure raises the performance of the tool, which will also shorten tool life and could cause injury. -
Page 3: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST... - Page 4 Part Name Part Name Washer Valve Body Gear Housing O-Ring Bearing Throttle Valve Planet Carrier Steel Ball Muffler Planet Gear Taping Screw Internal Gear Air Inlet Bearing Wave Washer Front Plate Exhaust Diffuser Rotor Blade O-Ring(Φ10.8x2.4) Rotor Pin(Φ3x22.5) Cylinder Cover Left Shear Blade Rear End Plate Center Blade...
- Page 5 Mode d’emploi Cisailles à métaux pneumatiques 1638974 Lisez le présent mode d'emploi avant d'utiliser le produit. Protégez-vous et protégez les autres en appliquant les consignes de sécurité mentionnées dans le mode d'emploi. Le non-respect des consignes peut entraîner des blessures et/ou des dommages au produit ou à la propriété. Conservez le...
-
Page 6: Spécifications
SPÉCIFICATIONS : Pression de la prise d'air (PSI) ............Vitesse de rotation à vide (tr/min) ............2 500 Moy. Consommation d'air (pcm) ............Prise d'air (NPT) ................1/4 po ID de tuyau à air ................3/8 po Longueur (pouces) ................8,46 Poids (lb) .................... -
Page 7: Vue Éclatée Et Liste Des Pièces
VUE ÉCLATÉE ET LISTE DES PIÈCES... - Page 8 Nom de pièce Qté Nom de pièce Qté Rondelle Corps de vanne Boîtier d'engrenage Joint torique Robinet Roulement d'étranglement Porte-planète Bille en acier Goupille Échappement Engrenage planétaire Vis de taraudage Engrenage interne Prise d'air Roulement Rondelle ondulée Diffuseur Plaque frontale d'échappement Joint torique Lame de rotor...
