Operating Instruction Manual

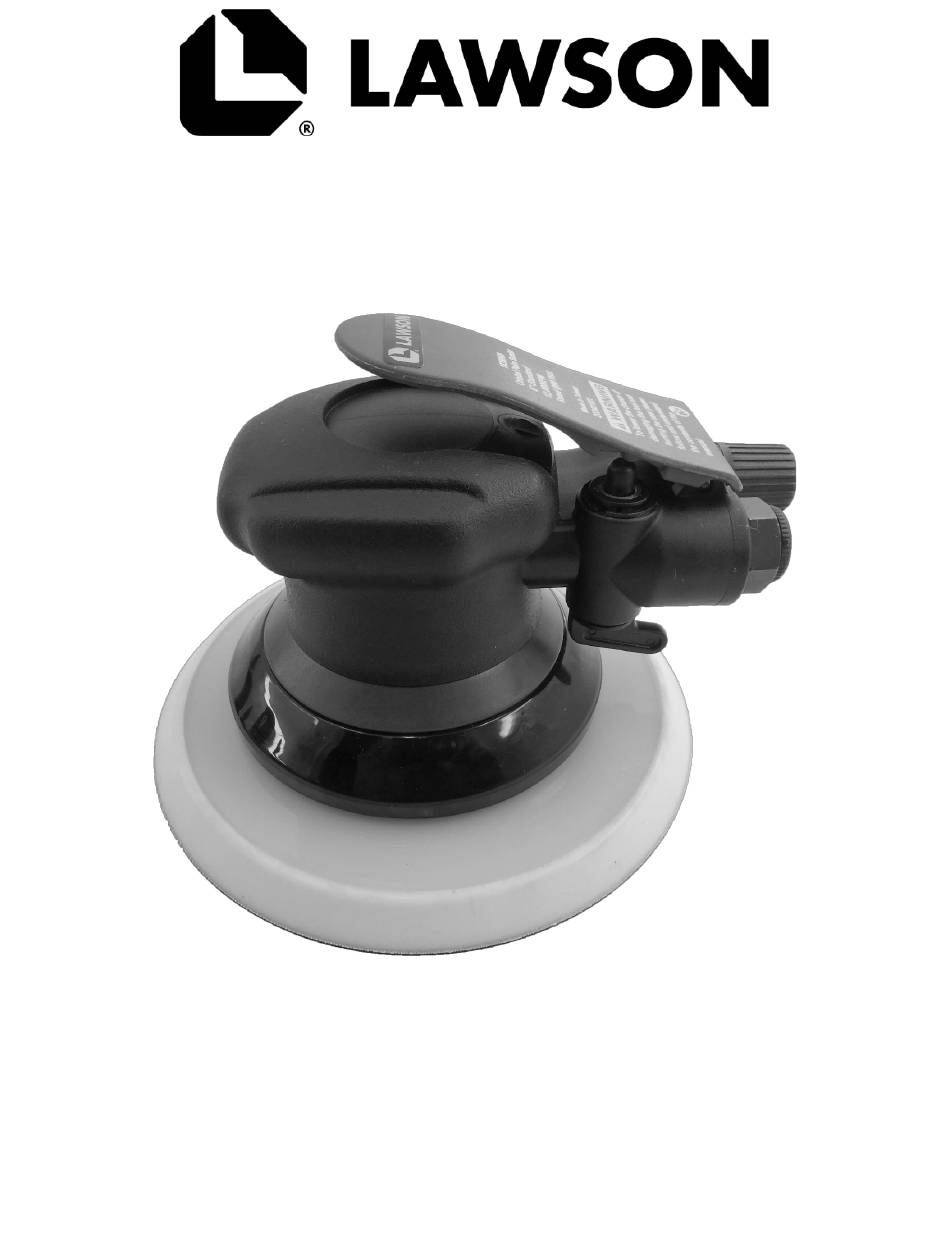

Orbital Palm Sander 6" - Standard
1638968
Read through this operating instructions manual before using the product. Protecting yourself and
others by applying the safety information listed in the manual. Failure to comply with the instructions
could result in personal injury and/or damage to the product or property. Please retain instructions for
future references
Advertisement
Table of Contents
Related Manuals for Lawson 1638968
Summary of Contents for Lawson 1638968
- Page 1 Operating Instruction Manual Orbital Palm Sander 6” - Standard 1638968 Read through this operating instructions manual before using the product. Protecting yourself and others by applying the safety information listed in the manual. Failure to comply with the instructions could result in personal injury and/or damage to the product or property. Please retain instructions for...
-
Page 2: Specifications
SPECIFICATIONS: Air Inlet Pressure (PSI) …………………………………………………… 90 Rotation Speed (RPM) …………………………………………………..12,000 Pad Diameter (Inch) ………..…………………………………………….. 6” Diameter Orbit (mm)………………………………..……………………... 5mm Avg. Air Consumption (cfm) ………..…………….……………………… Air Inlet (NPT) …………………………..………….……………………... Air Hose ID ………………………………………………………………… Weight (Lbs) ………………………………..………….………………….. Noise Level (dbA) ...…………………………..………….……………….. 80 AIR SUPPLY: Tools of this class operate on a wide range of pressures. -
Page 3: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST Part Name Part Name Snap Ring Cylinder Set Valve Stem Set Bushing Regulator Set Front Plate Bearing (6002Zz) Valve Set Washer Air Inlet Washer Sleeve Set Rotor Key Lever Motor Shaft Balancer (6") Housing Shaft Set Rubber Bushing Snap Ring Snap Ring... - Page 4 8770 W. Bryn Mawr, Suite 900 Chicago, IL 60631 (773) 304-5050...
- Page 5 Mode d’emploi Ponceuse orbitale à paume de 6 po (152 mm) - standard 1638968 Lisez le présent mode d'emploi avant d'utiliser le produit. Protégez-vous et protégez les autres en appliquant les consignes de sécurité mentionnées dans le mode d'emploi. Le non-respect des consignes peut entraîner des blessures et/ou des dommages au produit ou à...
-
Page 6: Spécifications
SPÉCIFICATIONS : Pression de la prise d'air (PSI)............90 Vitesse de rotation (tr/min) ..............12 000 Diamètre du tampon (pouces) ............6 po Diamètre de l'orbite (mm) ..............5 mm Moy. Consommation d'air (pcm) ............3,0 Prise d'air (NPT) ................1/4 ID de tuyau à... -
Page 7: Vue Éclatée Et Liste Des Pièces
VUE ÉCLATÉE ET LISTE DES PIÈCES Nom de pièce Qté Nom de pièce Qté Anneau d'arrêt Jeu de vérins Jeu de tiges de soupapes Bague Jeu de régulateurs Plaque frontale Goupille Roulement (6002Zz) Jeu de soupapes Rondelle Prise d'air Rondelle Jeu de manchons Clé... - Page 8 8770 W. Bryn Mawr, Suite 900 Chicago, IL 60631 (773) 304-5050...
