Operating Instruction Manual

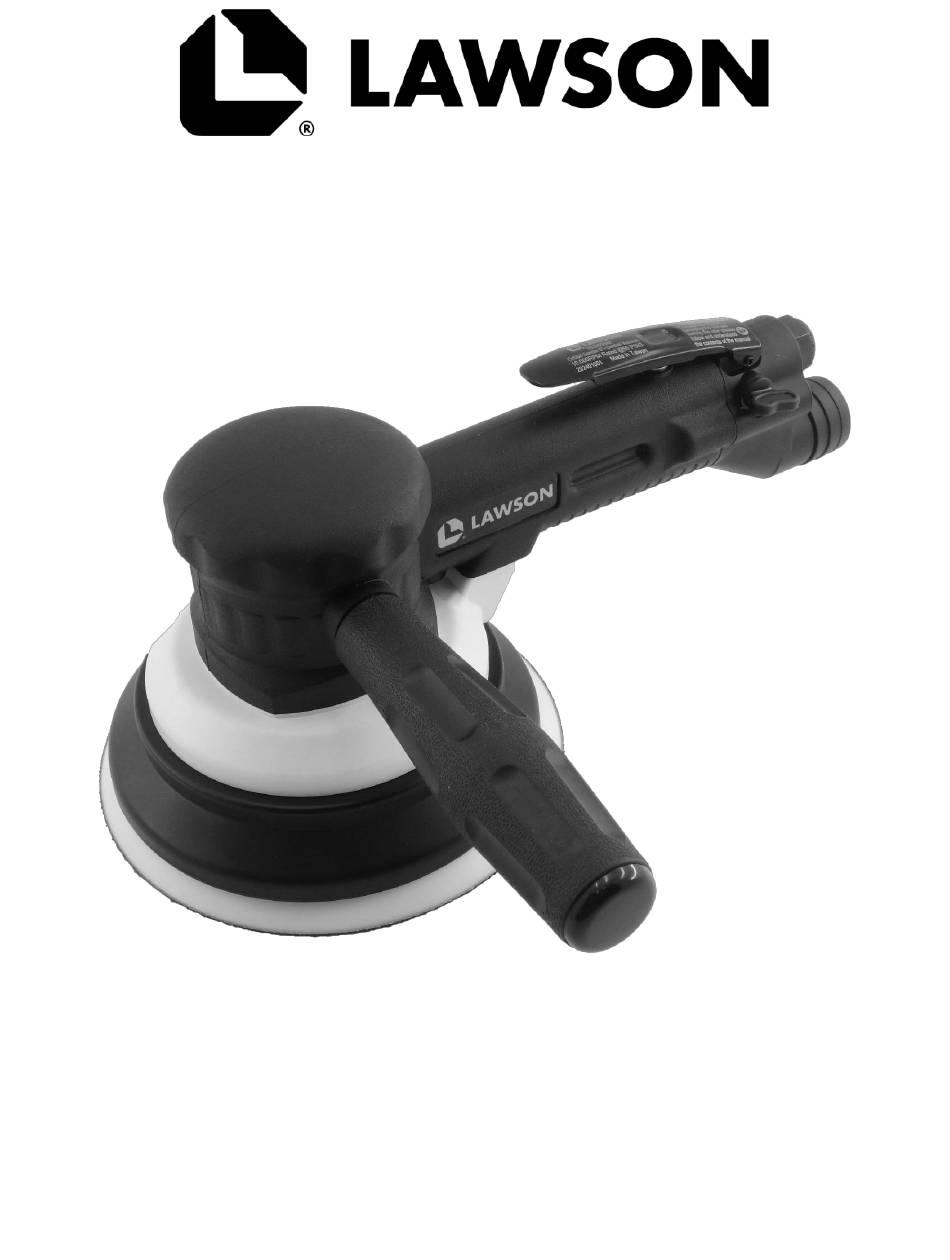

Orbital Sander 6" – Central Vacuum
1638966
Read through this operating instructions manual before using the product. Protecting yourself and
others by applying the safety information listed in the manual. Failure to comply with the instructions
could result in personal injury and/or damage to the product or property. Please retain instructions for
future references
Advertisement
Table of Contents
Related Manuals for Lawson 1638966
Summary of Contents for Lawson 1638966
- Page 1 Operating Instruction Manual Orbital Sander 6” – Central Vacuum 1638966 Read through this operating instructions manual before using the product. Protecting yourself and others by applying the safety information listed in the manual. Failure to comply with the instructions could result in personal injury and/or damage to the product or property. Please retain instructions for...
-
Page 2: Specifications
SPECIFICATIONS: Air Inlet Pressure (PSI) …………………………………………………… 90 Rotation Speed (RPM) …………………………………………………..10,000 Pad Diameter (Inch) ………..…………………………………………….. 6” Diameter Orbit (mm)………………………………..……………………... 5mm Avg. Air Consumption (cfm) ………..…………….……………………… Air Inlet (NPT) …………………………..………….……………………... Air Hose ID ………………………………………………………………… Weight (Lbs) ………………………………..………….………………….. Noise Level (dbA) ...…………………………..………….……………….. 80 AIR SUPPLY: Tools of this class operate on a wide range of pressures. -
Page 3: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST Part Name Part Name Housing Rotor Blade Muffler Body Rotor Screw (M4*8) Cylinder Set Valve Stem Set Front Plate Bushing Bearing (6002Zz) Valve Set Washer Packing Washer Housing Back Seat Motor Shaft Balancer (6") Air Inlet Rotor Key Regulator Set Shaft Set... - Page 4 8770 W. Bryn Mawr, Suite 900 Chicago, IL 60631 (773) 304-5050...
- Page 5 Mode d’emploi Ponceuse orbitale de 6 po (152 mm) - Aspiration centrale 1638966 Lisez le présent mode d'emploi avant d'utiliser le produit. Protégez-vous et protégez les autres en appliquant les consignes de sécurité mentionnées dans le mode d'emploi. Le non-respect des consignes peut entraîner des blessures et/ou des dommages au produit ou à...
-
Page 6: Spécifications
SPÉCIFICATIONS : Pression de la prise d'air (PSI)............90 Vitesse de rotation (tr/min) ..............10 000 Diamètre du tampon (pouces) ............6 po Diamètre de l'orbite (mm) ..............5 mm Moy. Consommation d'air (pcm) ............3,0 Prise d'air (NPT) ................1/4 ID de tuyau à... -
Page 7: Vue Éclatée Et Liste Des Pièces
VUE ÉCLATÉE ET LISTE DES PIÈCES Nom de pièce Qté Nom de pièce Qté Gaine Lame de rotor Corps de silencieux Rotor Vis (M4*8) Jeu de vérins Jeu de tiges de soupapes Plaque frontale Bague Roulement (6002Zz) Jeu de soupapes Rondelle Graissage Rondelle... - Page 8 8770 W. Bryn Mawr, Suite 900 Chicago, IL 60631 (773) 304-5050...
