Aveo Mira Connect Integration Manual

For ashly mxa-1502; aqm-1208
Hide thumbs Also See for Mira Connect:

Advertisement

Table of Contents

S Y S T E M S
Integrating an Ashly mXa/AQM DSP with Mira Connect™
Ashly mXa/AQM DSPs can be controlled with Mira Connect™, Aveo Systems'® smart control appliance.
This integration guide provides detailed steps for configuring Mira Connect (using
DSP.
Mira Connect communicates and controls the Ashly mXa/AQM DSP over Ethernet (http). Mira Connect supports mute and
volume adjustment of inputs, processing blocks, mixers, and outputs.

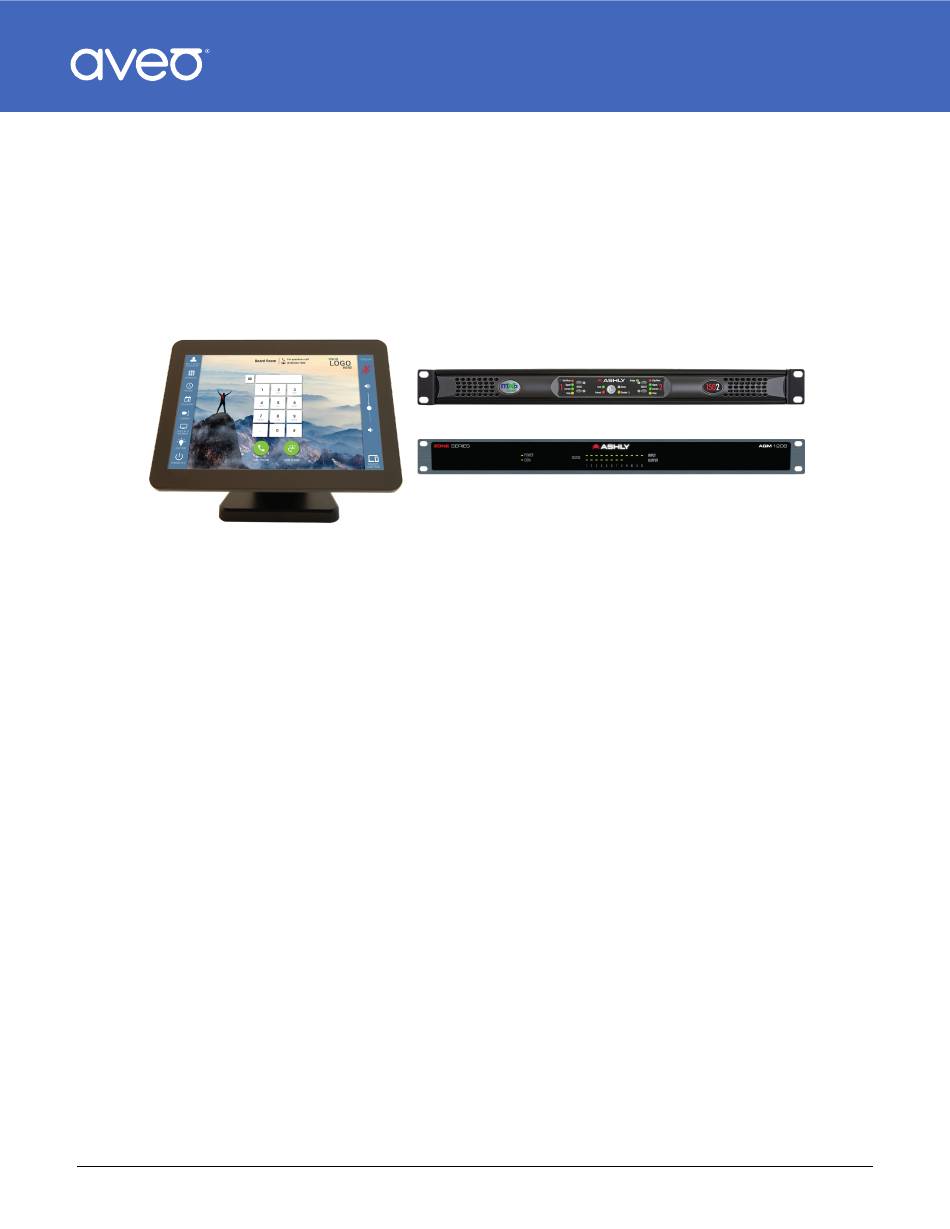

Figure 1:
The Mira Connect AV control system controls thousands of devices, including Ashly mXa/AQM DSPs.
Integration Steps
To integrate an Ashly mXa/AQM DSP with Mira Connect, follow these steps as detailed in the following sections:
1.
Configure the Ashly DSP
2.
Add a room to Mira Portal
3.
Pair Mira Connect to the room
4.
Add the Ashly DSP to the room
5.
Enter the Control Points
6.
Add other Equipment to Room
Step 1. Configure the Ashly DSP
To integrate an Ashly mXa/AQM DSP system with Mira Connect, first create or upload a design file to the Ashly mXa/AQM DSP.
A design typically includes customizing the input and output labels, adding in the desired processing blocks, identifying the
mutes and gain points for Mira Connect to control, and possibly adding presets that Mira Connect can recall. See the
mXa/AQM DSP documentation
If you change the configuration of the Ashly DSP after Mira Connect has connected to the device, and would like Mira Connect to
rediscover the channel names and processing blocks, simply edit the device and choose to simulate, click 'Update Equipment',
Aveo Systems, Inc. • 4455 Lower Roswell Road • #681593 • Marietta, GA 30068
Phone: +1.678.653.7090 • Email: sales@aveosystems.com •
for more information on how to configure the system.
aveosystems.com
Ashly mXa‑1502 or AQM‑1208
Mira
Portal) to control the Ashly mXa/AQM
1
Copyright © Aveo Systems, Inc. All rights reserved.
Mira Connect Integration Guide for
Ashly
