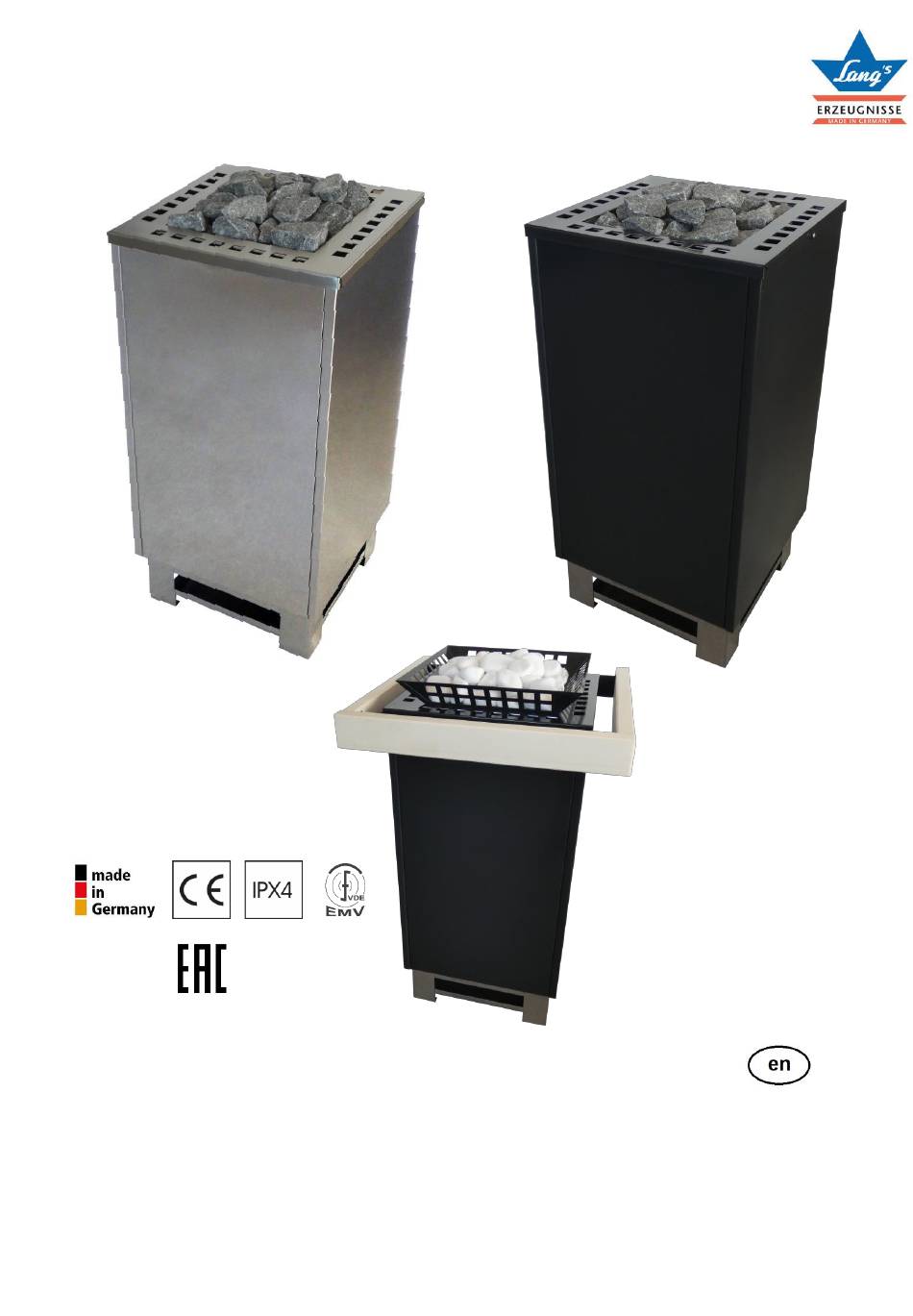

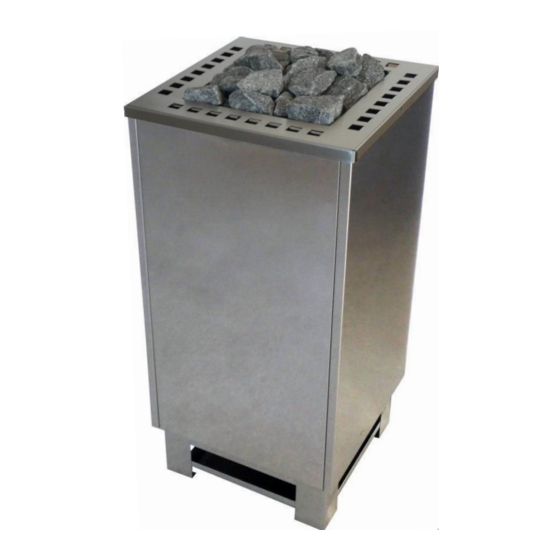

Saunaheater standing model "KUBO-therm"
KUBO-inox K38i | KUBO-noir K38n
Installation and Operating Instruction
Dear customer,
with this product you have acquired a high-quality technical device „Made in Germany".
These installation and operating instructions have been prepared for your information.
Pay special attention to the „Important notes".
We wish you relaxed and refreshing sauna bathing.
Print No. K38/2405(en)
Advertisement
Table of Contents
Related Manuals for Lang KUBO-inox K38i
Summary of Contents for Lang KUBO-inox K38i
- Page 1 Saunaheater standing model “KUBO-therm” KUBO-inox K38i | KUBO-noir K38n Installation and Operating Instruction Dear customer, with this product you have acquired a high-quality technical device „Made in Germany“. These installation and operating instructions have been prepared for your information. Pay special attention to the „Important notes“.
-
Page 2: Table Of Contents
Content o Intended use ……………………….…………………………………………………………………………… 3 o General notes ……..……………………………………………………………………………………………. 3 o Other notes ……..………………………………………………………………………………………………. 3 o Important notes ...…………………………………………………………………………………………. 3 + 4 o Maintenance ……………………………………………………………………………………………………. 4 Saunaheater – Sauna stones o Mounting of Saunaheater …………………………………………………………………………………….. 5 o Electrical connection ………………………………………………………………………………………….. 6 o Technical Data ..………………………………………………………………………………………………. -
Page 3: Intended Use
Important notes Intended use This sauna heater is only intended for the heating of Incorrect installation may cause the danger of fire! sauna cabins in combination with an appropriate control unit. Please read these installation and operating instructions Any other use over and above the intended purpose is carefully. -
Page 4: Maintenance
• For sauna infusion water there has to be use only water Maintenance that meets the characteristics of a normal household water The sauna infusion-stone is a natural product. (Tap- and rainwater). Due to the high temperatures and large temperature •... -
Page 5: Mounting Of Saunaheater
Insert the bigger stones first, and then the little stones. Do not stack the stones into a tall pile. With equipment including the original Lang’s oven railing the minimum distance between the Saunaheater and the cabin wall is determined by the 3-sided oven-... -
Page 6: Electrical Connection
Electrical connection The sauna equipment (heater, control unit, lighting, etc.) with a fixed mains power connection, may be installed only by a certified electrician, taking into account the applicable regulations, protective rules, and according to the installation instruction of the sauna heater and control unit manufacturer! Only certified control units may be used to connect the sauna heater. -
Page 7: Technical Data
Technical Data: Type Dimensions Heating- Heater weight Voltage Stone filling W x D x H (in cm) capacities KUBO 6,0 – 12,0 kW 38 x 38 x 78 400V 3N AC ca. 20 kg ca. 22 kg K38i | K38n - All Saunaheaters are splash-water protected. -
Page 8: Finnish Sauna Bath
In the event of deviation or disregard of our installation and operating instructions and any damage attributable to it, any liability is excluded and our guarantee obligation expires. Please always observe the operating and installation instructions of the sauna control unit manufacturer. Manufacturer: EWALD LANG GmbH & Co. KG, D-91595 Burgoberbach/Germany | www.saunaofen.com...
