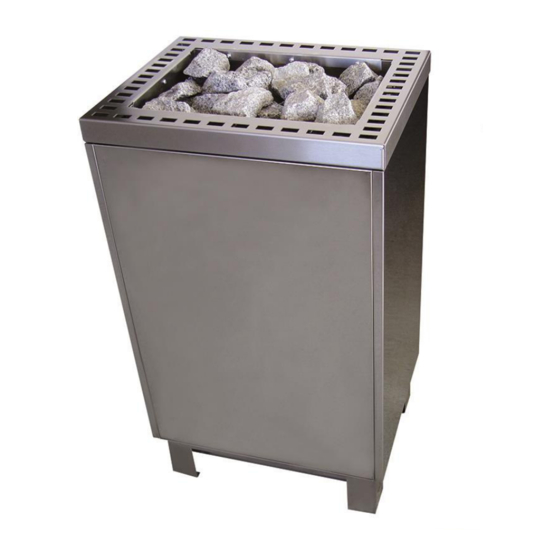

Premium-Saunaheater standing model
„THERMOS" TM48(S) │ „THERMOS-vapo" TM48-V(S)
Basic and "Superior"-finish
Installation and Operating Instruction
Dear customer,
with this product you have acquired a high-quality technical device „Made in Germany".
These installation and operating instructions have been prepared for your information.
Pay special attention to the „Important notes".
We wish you relaxed and refreshing sauna bathing.
Print No. TM48/2405(en)
Advertisement
Table of Contents
Summary of Contents for Lang THERMOS TM48(S)

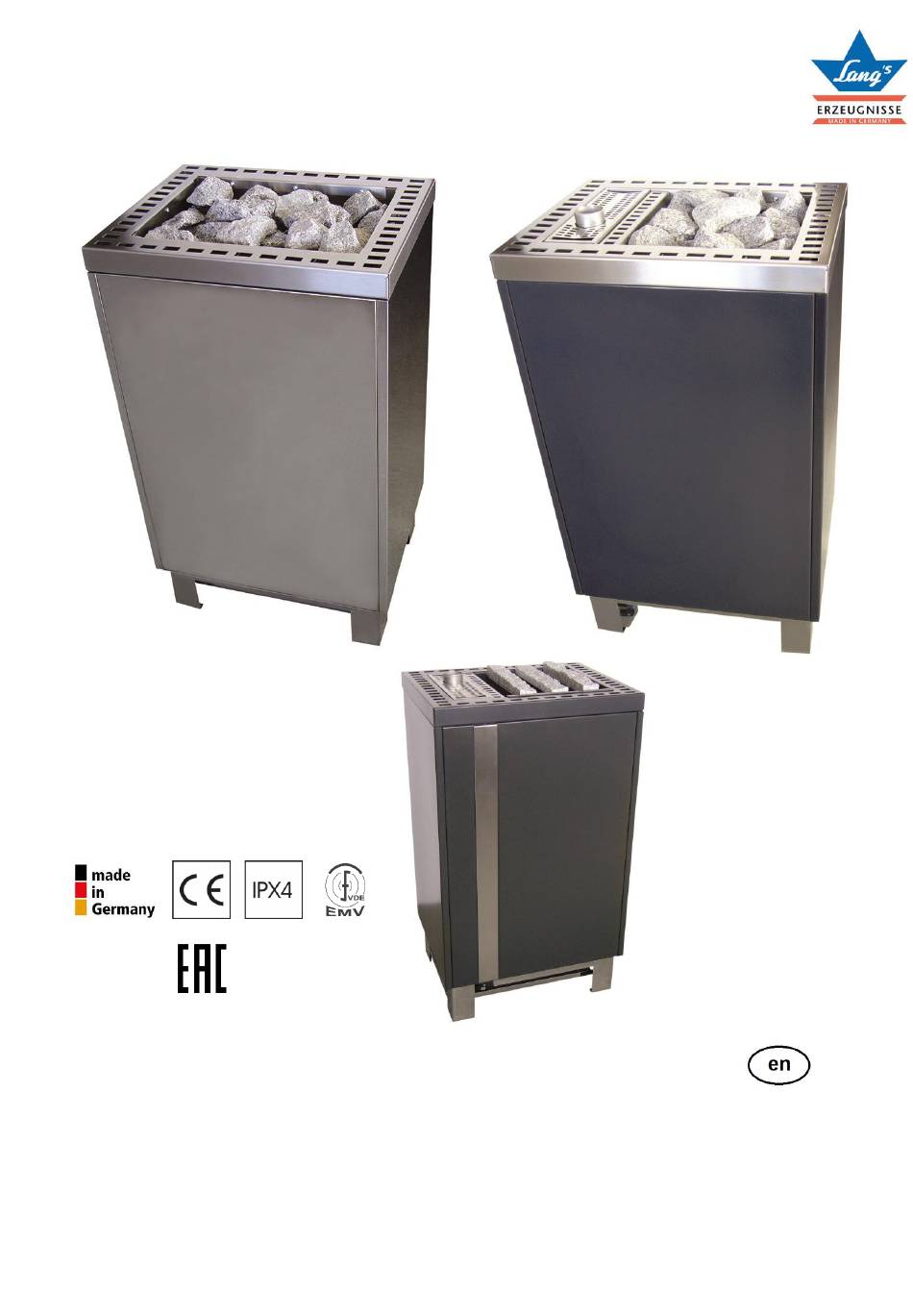

- Page 1 Premium-Saunaheater standing model „THERMOS“ TM48(S) │ „THERMOS-vapo“ TM48-V(S) Basic and “Superior”-finish Installation and Operating Instruction Dear customer, with this product you have acquired a high-quality technical device „Made in Germany“. These installation and operating instructions have been prepared for your information. Pay special attention to the „Important notes“.
-
Page 2: Table Of Contents
Content o Intended use ……………………….…………………………………………………………………………… 3 o General notes ……..……………………………………………………………………………………………. 3 o Other notes ……..………………………………………………………………………………………………. 3 o Important notes ...…………………………………………………………………………………………. 3 + 4 Saunaheater with integrated vaporizer ..…………………………………………………………… 4 o Maintenance ……………………………………………………………………………………………………. 4 Saunaheater – Sauna stones Cleaning/Descaling of the vaporizer tank o Mounting of Saunaheater …………………………………………………………………………………….. -
Page 3: Intended Use
Important notes Intended use This sauna heater is only intended for the heating of Incorrect installation may cause the danger of fire! sauna cabins in combination with an appropriate control unit. Please read these installation and operating instructions Any other use over and above the intended purpose is carefully. -
Page 4: Saunaheater With Integrated Vaporizer
Maintenance • For sauna infusion water there has to be use only water The sauna infusion-stone is a natural product. that meets the characteristics of a normal household water Due to the high temperatures and large temperature (Tap- and rainwater). changes, the sauna stones getting brittle and crumbling. -
Page 5: Mounting Of Saunaheater
M o u n t i n g o f S a u n a h e a t e r Unbox the Saunaheater and remove any protective foil still on the heater. Place the Saunaheater in front of the air intake opening. The minimum distance between the Saunaheater and the cabin wall is 7 cm - up to 10.5 kW and 10 cm –... -
Page 6: Electrical Connection
Electrical connection The sauna equipment (heater, control unit, lighting, etc.) with a fixed mains power connection, may be installed only by a certified electrician, taking into account the applicable regulations, protective rules, and according to the installation instruction of the sauna heater and control unit manufacturer! Only certified control units may be used to connect the sauna heater. -
Page 7: Technical Data
Technical Data Rated power Dimensions Type Heating capacities Vaporizer Stone filling W x D x H (in cm) 400V 3N AC 230V 1N AC ̷ TM48 48 x 38 x 82 6,0 to 15,0 kW ca. 35 kg TM48-V 48 x 38 x 82 6,0 to 12,0 kW 1,5 kW ca. -
Page 8: Finnish Sauna Bath
In the event of deviation or disregard of our installation and operating instructions and any damage attributable to it, any liability is excluded and our guarantee obligation expires. Please always observe the operating and installation instructions of the sauna control unit manufacturer. Manufacturer: EWALD LANG GmbH & Co. KG, D-91595 Burgoberbach/Germany | www.saunaofen.com...
