USER'S MANUAL OF ELECTRONIC
DIGITAL THICKNESS GAGE

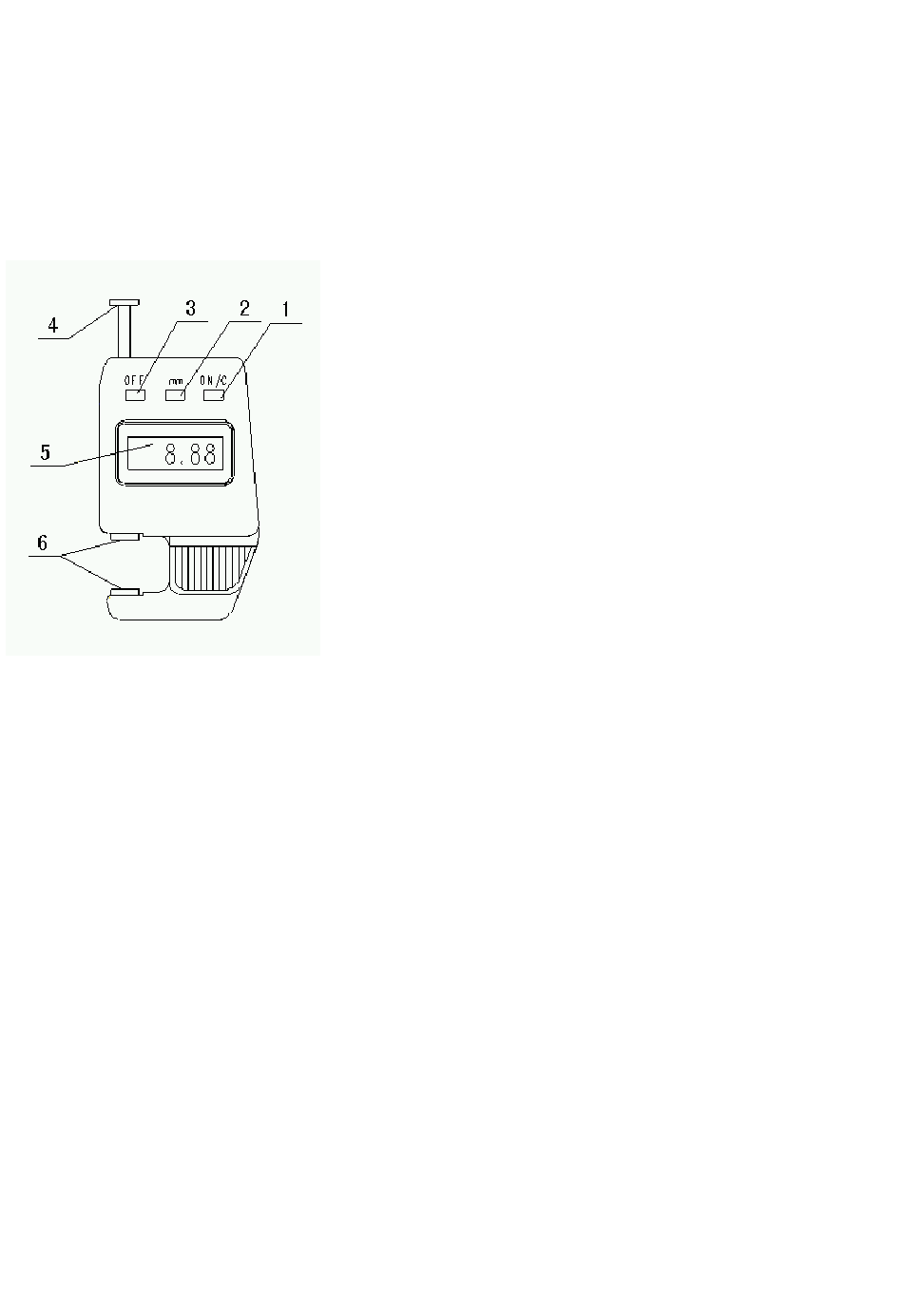

FIGURE OF OUTLOOK OF DIGITAL THICKNESS GAGE.
Three-button digital thickness gage
1. ZERO button for zero setting
3. OFF/ON button OFF/ON
6. Upper measuring face/Lower measuring face
TECHNICAL SPECIFICATIONS:
Resolution: 0.01mm
Power: One 1.55V cell button
Working temperature: 0~+40℃
Storage temperature: -10℃~+60℃
Relative humidity: ≤80%
FUNCTIONS:
1. mm/in conversion at any position.
2. Zero setting at any position.
OPERATION:
2. mm button for mm/in conversion
4. Cap
5. LCD
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LIMIT 22940100
Summary of Contents for LIMIT 22940100
- Page 1 USER’S MANUAL OF ELECTRONIC DIGITAL THICKNESS GAGE FIGURE OF OUTLOOK OF DIGITAL THICKNESS GAGE. Three-button digital thickness gage 1. ZERO button for zero setting 2. mm button for mm/in conversion 3. OFF/ON button OFF/ON 4. Cap 5. LCD 6. Upper measuring face/Lower measuring face ...
- Page 2 Preparation: Clean measuring faces of a digital thickness gage with dry and soft cloth. Operation: Press ON/OFF button to switch on power; press mm button to select mm or inch. Press Cap and press ZERO button when upper measuring face contacts with lower measuring faces. Then it is able to take regular measurement.
