Clarion NVS613 Service Manual

Clarion Co., Ltd.
5-35-2, Hakusan, Bunkyouku, Tokyo, 112-8608 Japan
Service Dept - 50 kamitoda, Toda-sh:. Saitama 3 3 5 - 8 5 7 1 Japan
Published by Service Dept.
298-5944-00 Nov.2001P
Tel: 048-443-1111 FAX:048-433-6996 | Printed in Japan
Service Manual
M

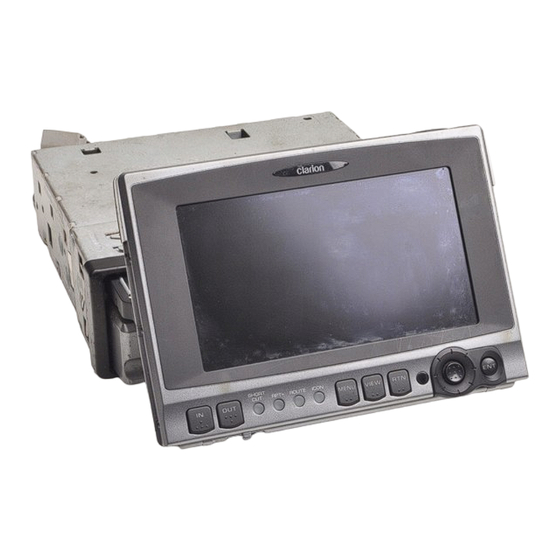

DIN-Size Navigation System Built-in
onitor
woai NVS 613
(QX-4010E)
(Maximum output for 8Q load)
Monitor section
Screen size(mm): 5.8-inch wide
127.2(W)x71.8(H)
Display method: Transmission type TN LCD
Drive method: TFT active matrix driving
Pixels: 280,800pixels(1,200Hx234V)
GPS antenna
Type: Micro strip planar antenna
External dimensions: 34(W)X13(H)X38(D)(mm)
Weight: 95q(including cord)
* Specifications and design are subject to change without
notice for further improvement.
M@ COMPONENTS
QX-~4010E-A
pairing the pick-up.
The pattern of the pick-up is short-circuiting for preven-
tion.
Remove the soldering with a solder iron whose insula-
tion resistance is larger than 10MQ(DC500V) afier com-
plete connection to the main PWB
For repair table shall use copper or conductive sheet
(with impedance is lower than 1GQ)such as a seet.
Be sure to put on a wrist-strap for prevent electric
static's.(with impedance lower than 100MQ ) The strap
works to drain away the static electricity build-up on the
human body.
And as static electricity build-up on clothes is not # rained
away, be careful and not your clothes to touch the pick-
up.
Position of short soldering for pick-up protectios posi-
tion is different by model.
Some units have two short soldering points.
Always short LD circuit to open the short circuit amd re-
moves by soldering iron.
