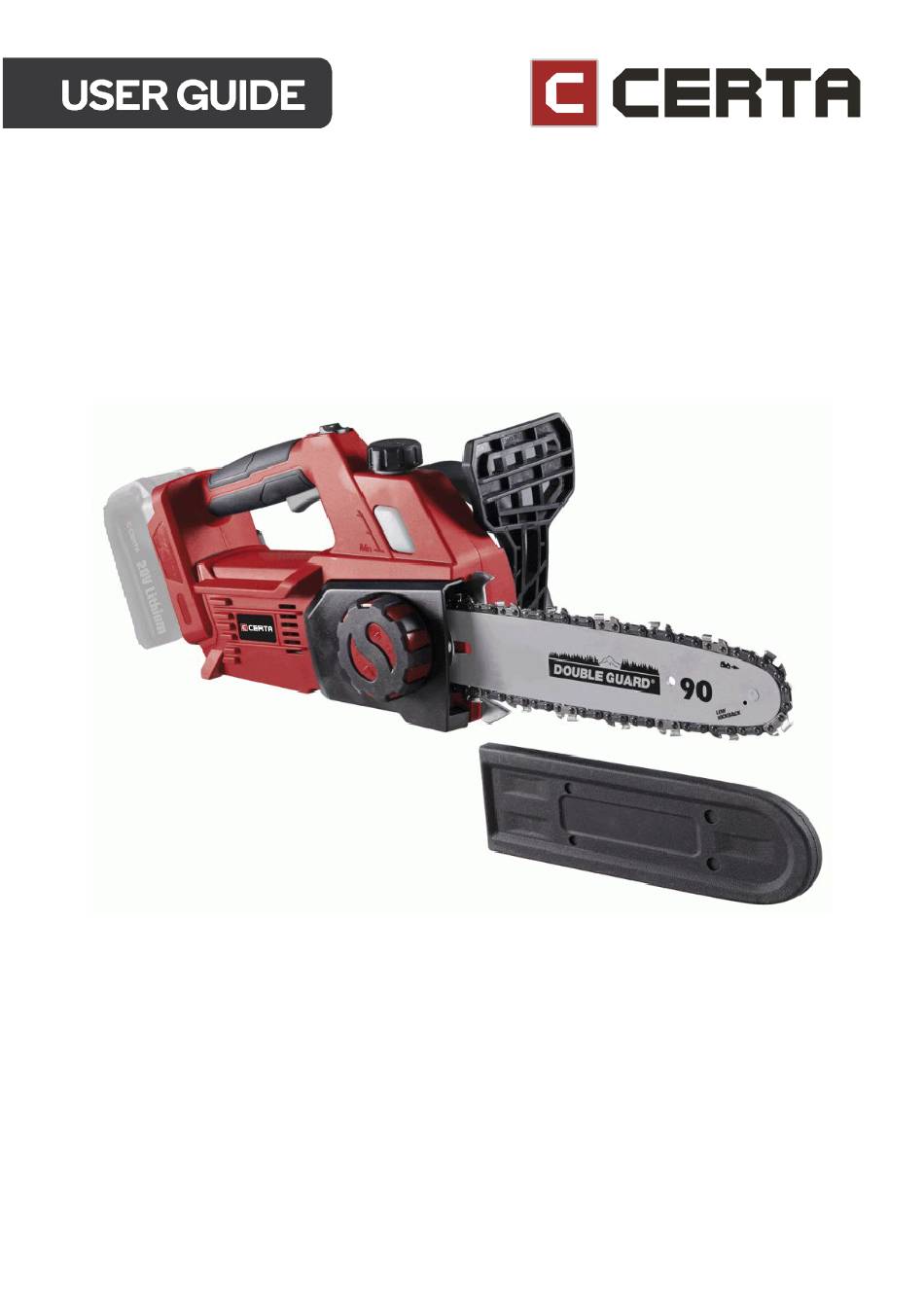

- Page 1 POWERPLUS 20V BRUSHLESS CHAIN SAW (SKIN ONLY) CTPCHANSAWA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Assembly Operation Cleaning & Care Specification Troubleshooting... -
Page 3: Safety & Warnings
SAFETY & WARNINGS General Safety • Important! The illustrated chain saw is for pruning and must be used by operators trained to maintain trees. • WARNING! Before using this tool, carefully read and follow the instructions in this manual that refer to the diagrams and technical data contained in the enclosed sheet to ensure that commissioning, starting, use, stopping, and maintenance are carried out properly. - Page 4 • Do not use the chainsaw in wet conditions to avoid electrical shock. Ensure that the chainsaw is connected to a power supply with a ground fault circuit interrupter (GFCI) to prevent electrical accidents. Regularly check the condition of the power cord. •...
- Page 5 • Maintain tools with care: Keep tools sharp and clean for better and safer performance. Periodically inspect tool cords and have damaged cords repaired at an authorised service facility. • Disconnect the tool when not in use, before servicing, and when changing accessories such as blades, bits, and cutters.
- Page 6 • Avoid using an extension cord unless necessary. If required, ensure it is suitable: The extension cord must have an adequate wire size, measured in square millimetres (mm²), to prevent power loss and overheating. In Australia, wire sizes are specified by the cross-sectional area rather than the gauge number. Ensure each extension used meets or exceeds the required capacity for the intended load.
-
Page 7: Overview
OVERVIEW Rear handgrip Rear hand guard Oil tank cap Oil gauge Chain bar Blade cover Chain Spike bumper Bar fixing pin (inside machine) Tension adjustment wheel and housing Machine housing Sprocket (inside machine) Oil hole (inside machine) - Page 8 Battery compartment ON/OFF trigger Power safety switch Front hand grip Chain brake/hand guard Motor cooling vents Battery release button (on battery) direction of the chain rotation Chain Oil hole Chain tensioner plate Attachment hook...
- Page 9 Bar fixing pin (inside machine) Sprocket (inside machine) Chain stay Tension adjustment wheel and housing Machine housing...
-
Page 10: Assembly
ASSEMBLY Fitting and Removing the Battery (Sold Separately) Note: This product is designed to be used with CT20VBAT20A - Certa PowerPlus 20V 2.0Ah Lithium Battery, and CT20VHTLBCHB - Certa PowerPlus 20V Rapid Charger (65W) (sold separately). The battery should always be removed whenever you are not using the tool and especially when you are adjusting or transporting the tool to avoid accidental operation. - Page 11 Assembly of the Bar, Chain, and Housing WARNING: • Do not use the machine before tensioning the chain. • The chain may become loose during use. Follow the instructions in in this section to tension the chain. • Always use protective gloves when handling the chain. •...
- Page 12 Tensioning the Chain Loosen the tension adjustment wheel (17) by a few turns and then retighten it; the chain should now be correctly tensioned. If the chain is overly tight, loosen the tension adjustment wheel (17) slightly and adjust again. WARNING •...
-
Page 13: Operation
OPERATION Transport To transport the chainsaw, always use its original packaging to protect it from impacts, dust, and humidity, which can affect its regular operation. During transport, disconnect the battery. Handling Hold the chainsaw by the handle and carry it to the side without dragging it on the ground. After use, place it down gently. - Page 14 Charging the Battery Pack (Sold Separately) Note: This product is designed to be used with CT20VBAT20A - Certa PowerPlus 20V 2.0Ah Lithium Battery, and CT20VHTLBCHB - Certa PowerPlus 20V Rapid Charger (65W) (sold separately). Remove the battery pack from the handle by pressing the push lock buttons downwards.
- Page 15 Troubleshooting Charging Issues: Verify power supply by plugging another appliance into the outlet. Ensure the outlet is not controlled by a switch that cuts power when lights are turned off. If issues persist, relocate the charger and tool to an area within the acceptable temperature range (4.5°C to 40.5°C).
- Page 16 Stopping the Electric Chainsaw The chainsaw will stop automatically when the ON/OFF trigger (4) is released. Checking the Automatic Oiler Ensure the oil tank is full. Test the oiler by running the chainsaw over a piece of cardboard, holding the blade about 4cm away.
-
Page 17: Cleaning & Care
CLEANING & CARE Maintenance IMPORTANT! Before carrying out any operation on the chain saw, disconnect the battery. • Tension the chain when necessary. • Bring the chain to a specialised workshop for maintenance and sharpening as needed. • Lubricate or grease the ball bearings on the nose of the bar regularly. •... -
Page 18: Specification
100 dB(A) Procedure for evaluating conformity enclosed (2005/88/EC) Front handle: 3.87 m/s K=1.5 m/s Vibration ah Rear handle: 3.02 m/s K=1.5 m/s Rechargeable battery (LI-Ion) Nominal voltage Capacity CERTA 2.0Ah/4.0Ah Charger Rated power input Input voltage 220-240V-50/60Hz Output voltage 21V, 1.5A... -
Page 19: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Battery is flat. Recharge the battery. The chain saw does Leave the battery in a not start. Battery is too cold or hot. temperate environment of 18- 24°C. Contact help.Kogan.com for Defective on/off switch. The chain saw works support. - Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
