Document no.: 400-0001
Version: R1.0 - 26 October 2023
Page 1 of 25

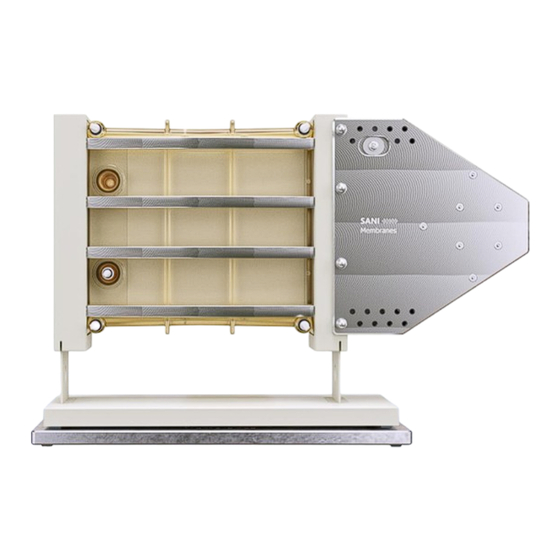

Vibro-Lab3500
User Manual
Please be sure to read this entire user manual prior to use of the equipment.
Please read all safety instructions carefully.
This user manual is part of the product. Keep it in a safe place for future reference.
Replacement manuals can be downloaded from our webpage at
:
www.sanimembranes.com
SANI Membranes A/S
www.sanimembranes.com
Ryttermarken 8 | DK-3520 Farum | Denmark
Advertisement
Table of Contents
Related Manuals for SANI Membranes Vibro-Lab3500
Summary of Contents for SANI Membranes Vibro-Lab3500
- Page 1 Please read all safety instructions carefully. This user manual is part of the product. Keep it in a safe place for future reference. Replacement manuals can be downloaded from our webpage at www.sanimembranes.com SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark...
-
Page 2: Table Of Contents
Introduction to microfiltration setup using a permeate pump..................... 16 5.4. Introduction to ultrafiltration setup ............................18 5.5. General guidelines – process ..............................19 5.6. CIP operation ..................................... 20 5.7. Storage of membranes ................................20 SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark... - Page 3 Continuous single-pass membrane filtration using standard feed pump ................21 Continuous membrane filtration using standard feed pump and a mix flow pump ............22 7. Technical Data ......................................23 8. Conformity ........................................24 SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark...
-
Page 4: Description
• Vibro-Lab3500 Drive (EU) (001-0021). • Vibro-Lab3500 Drive (US) (001-0018). • This manual applies to the Vibro-Lab3500 products in combination with the following accessories: Standard feed pump from SANI Membranes. • SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark... -
Page 5: Symbols
This symbol denotes a possible danger with a low risk that moderate or minor injury may result if it is not avoided. ATTENTION This symbol denotes a danger with low risk of damage to property if not avoided. SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark... -
Page 6: System
Each side plate of the Vibro-Lab3500 Adaptor has a cavity that makes up the air cushion volume when the cartridge is mounted in the adaptor. At the bottom of each of the Vibro-Lab3500 Adaptor side plates there is a slit for placing the adaptor on the leaf springs of the base plate. -
Page 7: Safety
The Vibro-Lab3500 is designed to operate at maximum 3 bar(g) at room temperature. The feed system could be the standard feed pump from SANI Membranes. Other feed systems can be used but if capable of providing more than 3 bar(g) a CE approved safety valve of maximum 3 bar(g) must be used for protecting the Vibro-Lab3500. -
Page 8: Media
WARNING The operator should always make sure that the media to be filtered is compatible with the materials in fluid connection in the Vibro-Lab3500 and the feed system used. ATTENTION 3.4. Pressurized components If the pressure needed for the membrane assembly is generated by an external feed system (not included), then the membrane assembly, the external feed system and the tubing and fittings between the external feed system and the membrane assembly are one pressurized system. -
Page 9: Moving Parts
3.9. Accessories and spare parts The Vibro-Lab3500 can only be used together with a feed system that provides a maximum pressure of 3 bar(g). If the feed system is capable of providing more than 3 bar(g) a CE approved safety valve set to maximum 3 bar(g) must be used. -
Page 10: Assembly
Vibro-Lab3500 User Manual 4. Assembly 4.1. Tools Needed Tools needed for assembly: Tools Size Hex-Key 3 mm Hex-Key 6 mm Tools needed for maintenance: Tools Size 2 x Spanner SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark... -
Page 11: Assembly Of Drive
Page 11 of 25 Vibro-Lab3500 User Manual 4.2. Assembly of drive The Vibro-lab3500 comes assembled with the Lab3500 Cartridge installed. Prior to use, the Vibro-Lab3500 only needs to be securely attached to the baseplate & Vibro-Base to avoid damage. Parts list: 1. Vibro-Base 2. -
Page 12: Replacement Of Lab3500 Cartridge
Secure the cartridge with 8 x M8x45 screws and make sure to cross tighten. For gentle and uniform tightening use the scheme shown to the right. SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark... -
Page 13: Removal Of Vibro-Lab Drive
Secure the Vibro-Lab Drive in place with 4 x 121 mm rods with the 8 x M6 cap nuts and washers. Tighten the cap nuts with approx. 4Nm. Make sure to crosstighten the cap nuts. SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark... -
Page 14: Operation
10. Drain Valve (Optional) Introduction of feed solution: Start with a fully assembled and drained Vibro-Lab3500 unit as shown above. Tip: To avoid dilution of the feed solution the system can be drained from water just before introducing the product media. - Page 15 Peristaltic Retentate Pump to clean the permeate side too. See separate section for more information about CIP. Finish the CIP by a clean water rinse. For storage in between use, please see separate section on storage of membranes. SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark...
-
Page 16: Introduction To Microfiltration Setup Using A Permeate Pump
11. Manometer (0 – 1 bar) Introduction of feed solution: Start with a fully assembled and drained Vibro-Lab3500 unit as shown above. Tip: To avoid dilution of the feed solution the system can be drained from water just before introducing the product media. - Page 17 Turn on the Vibro-Lab Drive when recirculating CIP liquid. Make sure to run the Peristaltic Permeate Pump to clean the permeate side too. Finish the CIP by a clean water rinse. For storage until next use see separate section on storage of membranes. SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark...
-
Page 18: Introduction To Ultrafiltration Setup
10. Drain Valve (optional) Introduction of feed solution: Start with a fully assembled and drained Vibro-Lab3500 unit as shown above. Tip: To avoid dilution of the feed solution the system can be drained from water just before introducing the product media. -
Page 19: General Guidelines - Process
For microfiltration a very low trans membrane pressure often gives the best long-term results. During microfiltration the initial flux can be very high and easily result in severely fouled areas in the Vibro-Lab3500. It is recommended to use two pumps to control and limit the permeate flow to prevent this initial fouling from taking place. -
Page 20: Cip Operation
5.7. Storage of membranes The membrane should never be allowed to dry out. When idle the Vibro-Lab3500 should be filled with water or a suitable aqueous solution. For short term storage (hours) it can be left in water. For longer periods it is recommended to add a suitable solution to keep the membranes wet, and to prevent bacterial growth during storage. -
Page 21: Examples Of Process Configurations
To achieve the concentration factor, the retentate flow rate • is adjusted relative to the permeate flow rate. Note: • Risk of severe fouling for some high fouling applications. SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark... -
Page 22: Continuous Membrane Filtration Using Standard Feed Pump And A Mix Flow Pump
To achieve the concentration factor, the retentate flow rate • is adjusted relative to the permeate flow rate. Note: • Risk for severe fouling for some high fouling applications. SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark... -
Page 23: Technical Data
Version: R1.0 - 26 October 2023 Page 23 of 25 Vibro-Lab3500 User Manual 7. Technical Data Vibro-Lab3500 Data Weight 12.7 kg + damper steel base 8.4 kg Dimensions (L x W x H) 532 mm x 180 mm x 390 mm... -
Page 24: Conformity
PES & PVDF The Lab3500 Cartridge can be equipped with your membrane of choice. SANI Membranes have a line of standard MF and UF membranes on stock. Most commercially available membranes can however also be used with the Lab3500 Cartridge. Please, do not hesitate to contact us if you have specific membrane wishes. - Page 25 2014/35/EU – Low voltage equipment. 2014/68/EU – Pressure Equipment. 8.2 US version Vibro-Lab3500 Drive incorporates electronic components that comply with UR approval to ensure that these components have all undergone rigorous testing, meeting industry safety and performance standards. SANI Membranes A/S www.sanimembranes.com...
