Document no.: 400-0003
Version: R1.1 – 21 March 2024
Page 1 of 18
Vibro-Lab35P
User Manual
Please be sure to read this entire user manual prior to use of the equipment.
Please read all safety instructions carefully.
This user manual is part of the product. Keep it in a safe place for future reference.
Replacement manuals can be downloaded from our webpage at
:
www.sanimembranes.com
SANI Membranes A/S
www.sanimembranes.com
Ryttermarken 8 | DK-3520 Farum | Denmark
Advertisement
Table of Contents
Related Manuals for SANI Membranes Vibro-Lab35P
Summary of Contents for SANI Membranes Vibro-Lab35P
- Page 1 Please read all safety instructions carefully. This user manual is part of the product. Keep it in a safe place for future reference. Replacement manuals can be downloaded from our webpage at www.sanimembranes.com SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark...
-
Page 2: Table Of Contents
4.2. Mounting of Lab35 Cartridge ..............................10 5. Operation ........................................11 5.1. Vibro-Lab35P Pneumatic Drive, Use and Maintenance ......................11 5.2. Introduction to microfiltration and ultrafiltration setup using two pumps ................. 13 5.3. Introduction to ultrafiltration setup using one pump......................14 5.4. -
Page 3: Description
– less fouling, higher flux, higher degree of up-concentration. 1.2. Validity This manual applies to the Vibro-Lab35P in the following versions: Lab35 (000-0005) cartridge together with the Vibro-Lab35P (001-0021) Pneumatic Drive This manual applies to the Vibro-Lab35P in combination with the following components: Standard feed pump from SANI Membranes •... -
Page 4: Symbols
This symbol denotes a possible danger with a low risk that moderate or minor injury may result if it is not avoided. ATTENTION This symbol denotes a danger with low risk of damage to property if not avoided. SANI Membranes A/S www.sanimembranes.com Ryttermarken 8 | DK-3520 Farum | Denmark... -
Page 5: System
Always check that the oil level is above the “Min” indication on the lubrication unit. The exhaust air from Vibro-Lab35P is connected by 8 mm OD tubing from the return 8 mm push in port on the back of the steel base to the top of the Air Handling Unit acting as a silencer / exhaust air oil filter. -
Page 6: Safety

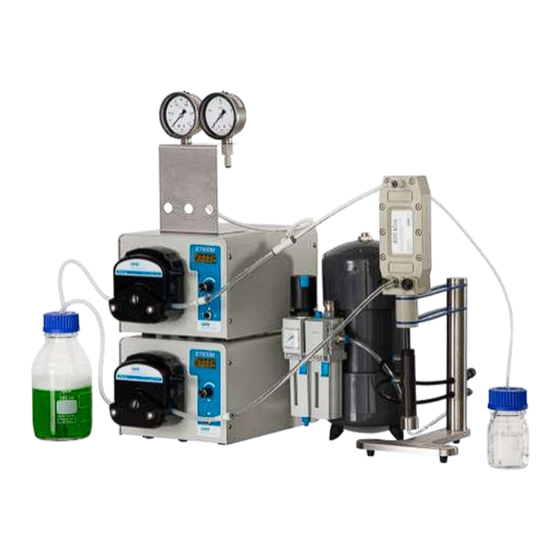

The Vibro-Lab35P assembly is a manually operated benchtop filtration system for MF and UF filtration. The user should read and understand this manual before use. The Vibro-Lab35P is intended for use in a laboratory setting or in an industrial, research or teaching facility. -
Page 7: Media
Pneumatic system The Pneumatic Vibro-Lab35P Drive and the tubing and fittings between it and the regulator on the Air Handling Unit are a separate pressurized system. The Regulator is supplied with external compressed air at maximum 10 bar. The Regulator is used to regulate the pressure to the Pneumatic Vibro-Lab35P Drive (which should be set to 3.5 bar(g) at normal operation). -
Page 8: Moving Parts
3.9. Accessories and spare parts The Vibro-Lab35P can only be used together with a feed system that provides a maximum pressure of 3 bar(g). If the system is capable of providing more than 3 bar(g) a CE approved safety relief valve set to maximum 3 bar(g) must be used. The feed system could be the standard feed pump from SANI Membranes. -
Page 9: Assembly
4. Assembly 4.1. Assembly of Drive Connect the outlet from the air lubrication unit (1) to the Air Inlet (2) on the Vibro-Lab35P using a suitable length of the 6 mm tubing. Connect the Air Outlet (3) on the Vibro-Lab35P back to the Air Handling Unit exhaust filter (4) using the 8 mm tubing. -
Page 10: Mounting Of Lab35 Cartridge
4.2. Mounting of Lab35 Cartridge Mounting the Lab35 Cartridge on a Vibro-Lab35P is a simple operation. The Lab35 Cartridge is secured with two M5 x 16 finger screws running through the support console and into the cavity of the hex bolts in the bottom of the Lab35 Cartridge. Tighten the finger screws to keep the cartridge stable and secure during operation. -
Page 11: Operation
User Manual 5. Operation 5.1. Vibro-Lab35P Pneumatic Drive, Use and Maintenance Oil change. Before running the Vibro-Lab35P, the air lubricator needs to be filled with oil. Pull down the blue While holding the Fill in the oil supplied by SANI Push the oil-chamber lever. - Page 12 Change Air Filter The Air Handling unit comes with an internal air filter, that removes the used oil from the exhaust gas from the Vibro-Lab35P. This filter will retain the lubrication oil and needs to be changed regularly for reliable performance. It is recommended to replace the filter for every two bottles of oil used by the system.
-
Page 13: Introduction To Microfiltration And Ultrafiltration Setup Using Two Pumps
SANI Membranes laboratory pump. Start the Vibro-Lab35P Drive (4) as soon as the Lab35 Cartridge is filled with feed solution. Adjust the speed of the Peristaltic Feed Pump (2) until the desired permeate flow rate is reached, or the desired pressure is reached. -
Page 14: Introduction To Ultrafiltration Setup Using One Pump
Tip: The recommended retentate flow rate is 4-8 L/h per Lab35 module which corresponds to around 80-90 RPM on the standard SANI Membranes laboratory pump. Start the Vibro-Lab35P Drive (4) as soon as the Lab35 Cartridge is filled with feed solution. Adjust the Retentate valve (5) until the desired retentate pressure (6) is reached. -
Page 15: General Guidelines - Process
Applying too high permeate flow rates can easily result in severely fouled areas in the Vibro-Lab35P. Limit the permeate flow rate by using the two-pump setup and study the process at increasing permeate flow rates for selecting optimal operating conditions. -
Page 16: Cip Operation
5.6. Storage of membranes The membrane should never be allowed to dry out. When idle the Vibro-Lab35P should be filled with water or a suitable aqueous solution. For short term storage (hours) it can be left in water. For longer periods it is recommended to add a suitable solution to keep the membranes wetted, and to prevent bacterial growth during storage. -
Page 17: Technical Data
Document no.: 400-0003 Version: R1.1 – 21 March 2024 Page 17 of 18 Vibro-Lab35P User Manual 6. Technical Data Vibro-Lab35P Drive Weight 2.4 kg Dimensions (L x W x H) 150 mm x 200 mm x 391 mm Compressed air 6 –... -
Page 18: Conformity
Including 2 m of 4 mm and 6 mm tubing 7. Conformity SANI Membranes are committed to develop and supply products that meet relevant regulatory standards and requirements set by governing bodies. For further compliance or safety information, please contact SANI Membranes customer support.
