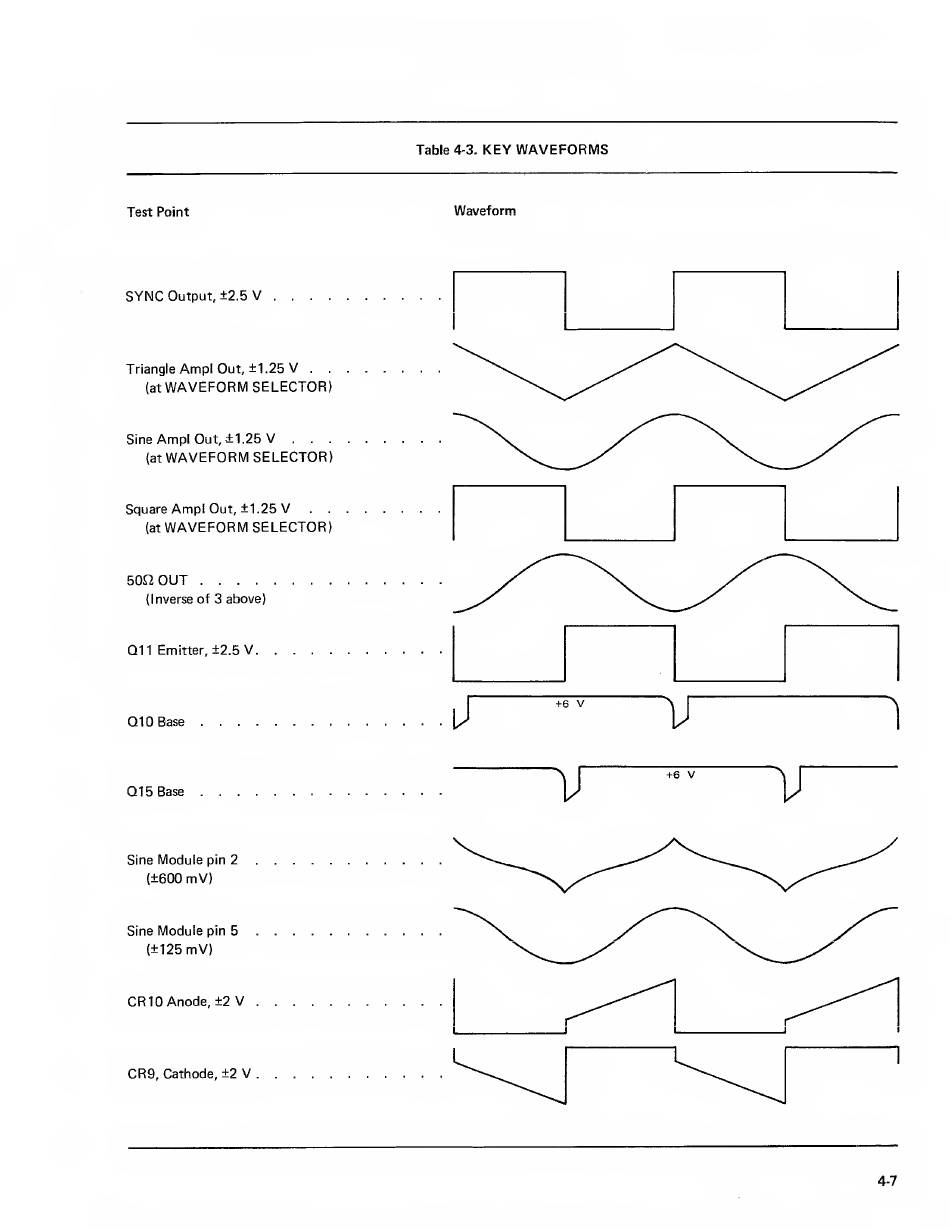

Test Point
Waveform
SYNC
Output, ±2.5
V
Triangle
AmpI
Out, ±1.25
V
.
.
(at
WAVEFORM
SELECTOR)
Sine
AmpI
Out,
±1.25
V
.
.
.
(at
WAVEFORM
SELECTOR)
Square
AmpI
Out,
±1.25
V
.
.
(at
WAVEFORM
SELECTOR)
50J2OUT
....
(Inverse
of
3 above)
Oil
Emitter,
±2.5
V
01
0
Base
015
Base
Sine
Module
pin
2
(±600
mV)
Sine
Module
pin
5
(±125
mV)
CR
10
Anode, ±2
V
CR9,
Cathode,
±2
V
