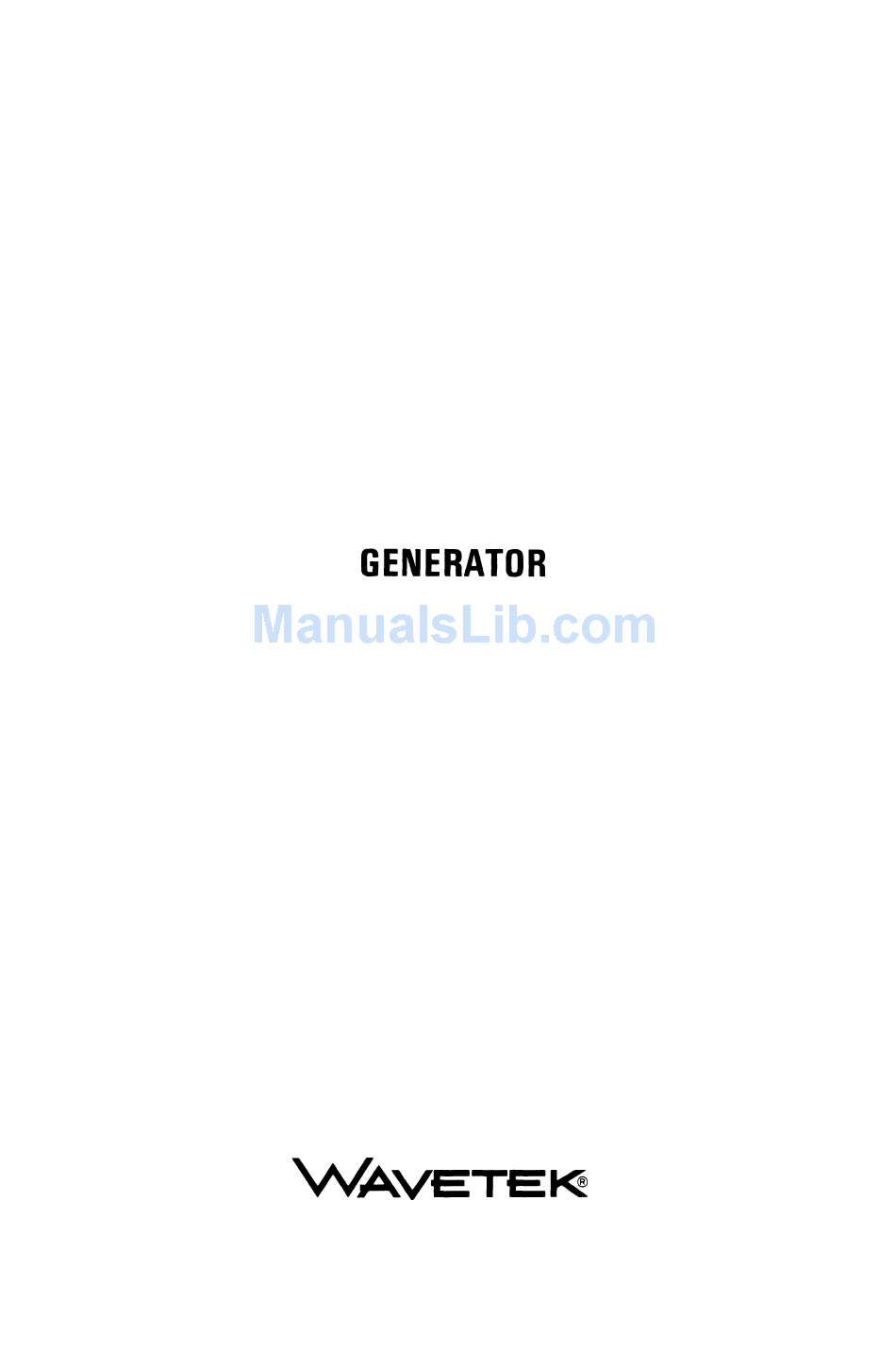

INSTRUCTION MANUAL
M O D E L 8 0 1
50 MHz PULSE
THIS DOCUMENT CONTAINS INFORMATION PRO-
PRIETARY TO WAVETEK. THE INFORMATION IN
THIS DOCUMENT IS NOTTOBE USED FOR DUPLICATED
IN ANY MANNER WITHOUT THE PRIOR APPROVAL
IN WRITING OF WAVETEK.
SAN DIEGO
9 0 4 5 Balboa Ave., San Diego, Calif. 92123
P. 0. Box 651, San Diego,
Tel
7 14/279-2200
California
92112
TWX 9 1 o-335-2007
REV C . 8/77
