Monport CW-5000 Instruction Manual

Industrial chiller
Hide thumbs Also See for CW-5000:
1
2
3
4
5

Advertisement

Quick Links

Download this manual

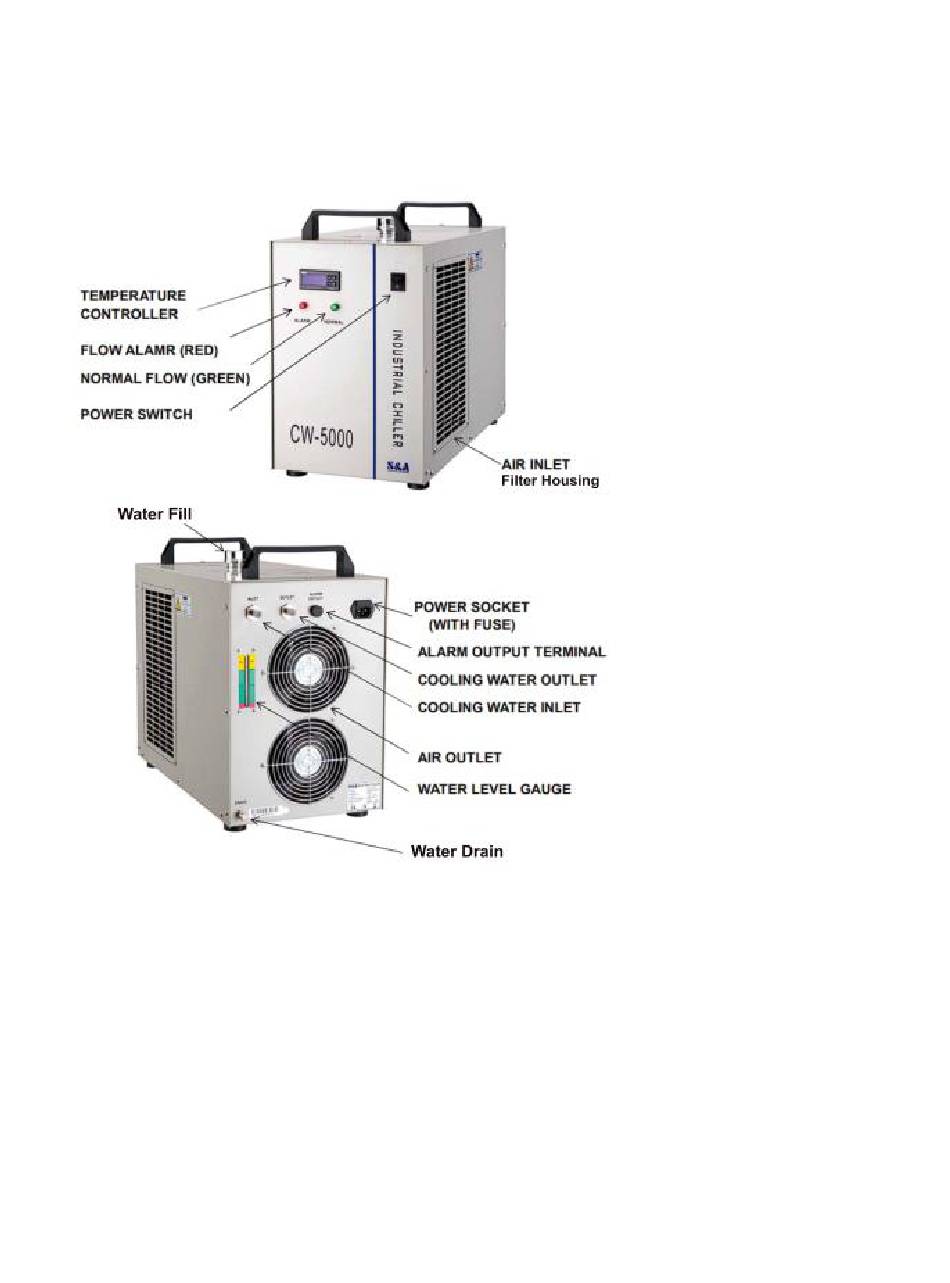

Monport CW-5000/ 5200 Industrial Chiller
T503/T504 Controllers
Mode 1: Intelligent mode: +- 5 degrees of ambient temp (Factory setting)
Mode 0: Constant mode - maintain 5 degree set swing
The maximum allowed temperature settings are 20-30C (68 to 86F)
The factory setting is 25 - 23-25C (73.4 to 77F)
The working ambient room temperature for these chillers is 10C to 40C (50F to
104F)

Advertisement

loading
Need help?

Need help?

Do you have a question about the CW-5000 and is the answer not in the manual?

Questions and answers

Austin
February 6, 2025

How can i take off or correct the E6 alarm

0

Related Manuals for Monport CW-5000

Summary of Contents for Monport CW-5000

  • Page 1 Monport CW-5000/ 5200 Industrial Chiller T503/T504 Controllers Mode 1: Intelligent mode: +- 5 degrees of ambient temp (Factory setting) Mode 0: Constant mode - maintain 5 degree set swing The maximum allowed temperature settings are 20-30C (68 to 86F) The factory setting is 25 - 23-25C (73.4 to 77F)
  • Page 2 NOTES: * If you are in a high humidity area and you see condensation on the chiller or the water lines, the water temperature in the chiller must be raised. Failure to do so may result in the Co2 tube shorting down! * You must clean the air filter regularly to maintain proper air flow.

  • Page 3: Other Settings

    THE BOTTOM LEFT LED: LED ON: Compressor is running LED OFF: COMPRESSOR IS OFF LED FLASHING: Energy Saving Mode – Laser not in use. During an alarm state, the error code and temperature will flash alternately on the screen. Press any button to suspend the alarm. The screen will continue to flash. ALARM CODES: E1: High room temperature E2: High water temperature...

  • Page 4: Flow Alarm

    Scroll to the appropriate setting NOTE: you must already be in Mode 0 to affect changes F0: Temperature setting F1: Temperature difference, from -15 to +5 – Factory setting is -2 F2: Compressor operation, from 0.1 to 3.0 – Factory setting is 0.8 on the T-503 & 0.1 on the T504 F3: Mode Setting, 0 or 1, Factory setting is 1 on the T-503 (0 on the T504) F4: High Water Temp, 1 to 20 degrees, Factory setting is 10...
  • Page 5 This document was prepared by Monport USA LA Technical Support, by Rich Faraone, The Louisiana Hobby Guy LLC. It is designed as an aide for end-user problem solving. Monport & The Louisiana Hobby Guy LLC take no responsibility for the content, use or misuse of this document or user error resulting in hardware failure or any other consequence.

This manual is also suitable for:

Cw-5200T503T504
