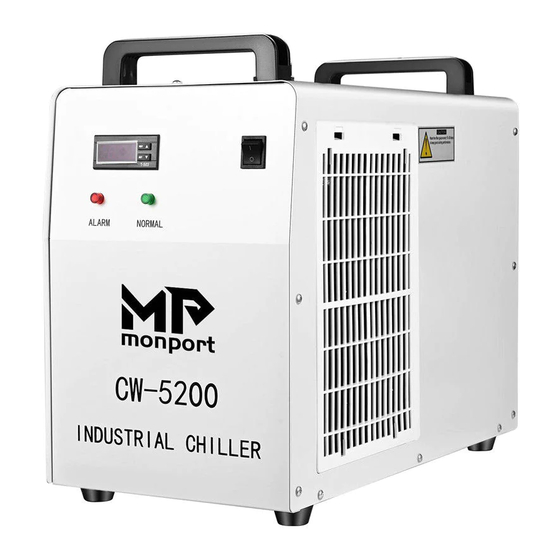

Monport CW-5200 Series Chiller
Congratulations on the purchase of your new Monport CW 5200 series
chiller! Here at Monport, we believe in customer service, and we strive
to support our customers by providing clear and concise directions for
proper use of our products! The following will detail the installation,
use & maintenance of the CW-5200 series of chillers. Following these
directions, you should expect long life from this product and your Co2
tube!
Advertisement
Table of Contents
Related Manuals for Monport CW-5200 Series
Summary of Contents for Monport CW-5200 Series

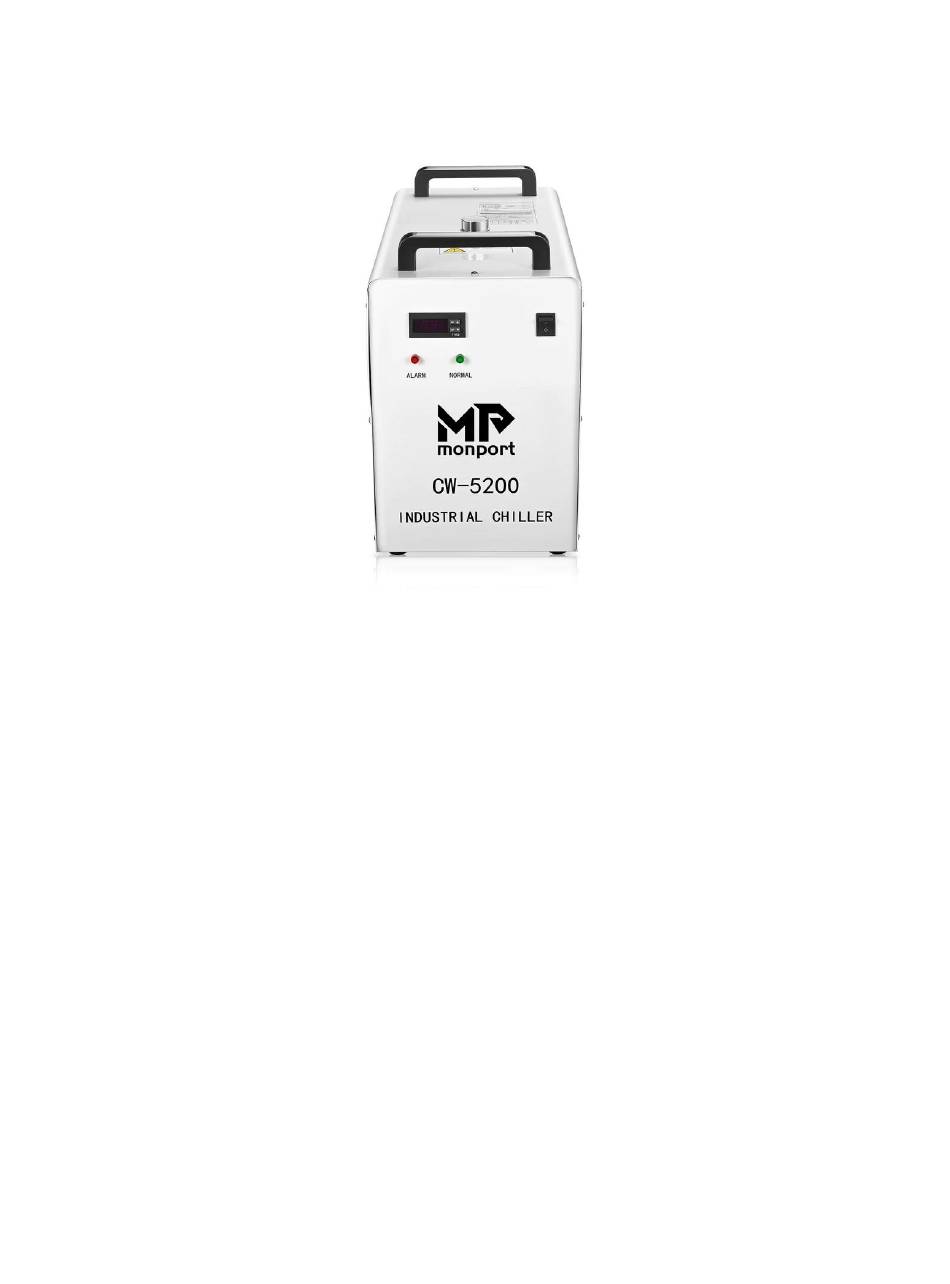

- Page 1 Monport CW-5200 Series Chiller Congratulations on the purchase of your new Monport CW 5200 series chiller! Here at Monport, we believe in customer service, and we strive to support our customers by providing clear and concise directions for proper use of our products! The following will detail the installation, use &...
-
Page 2: Connection Overview
Connection Overview:... -
Page 3: Water Fill
Installation It is very simple for the typical laser user. NOTE: If there are any shipping damages on the outside of the box, please take photos now, before unpacking in case a damage claim needs to be filed! Open the package to check if the machine is intact and all the necessary accessories are included. -
Page 4: Connecting The Water Lines
necessary. Both of the additives are non-conductive and will not hurt the chiller or the tube. Connecting the water lines: NOTE: To prevent debris from contaminating the water chamber, the chiller ships with either a short hose or protective caps (or both) over the inlet and outlet fittings. -
Page 5: Maintenance
You have completed the installation of the Monport CW-5200 series chiller! Maintenance There is very little maintenance involved in the use of the Monport CW-5200 series chillers. 1) There are two ventilation doors, one on either side of the chiller. If you depress the two tabs on top, you can pull open the door. - Page 6 2) It is highly recommended to change the water at least once every 4 weeks. If you followed the optional water conditioning instructions, it is possible for the water to last up to 3 months, however you should inspect the water color in the Co2 tube at least weekly. At the first sight of change in clarity (cloudy water) the water should be changed.
- Page 7 A: The CW-5200 has built in alarms to warn you! If your room temperature is too high to operate the laser. You will get an audible alarm, and the LED screen will read E1. In this case, turn off the laser and the chiller immediately.
- Page 8 obstruction. There may be an object on the water line, or a kink in the hose. If there are no visible kinks in the water lines, the kink is inside your laser. Open the back door and find the obstruction. Do not continue using the laser until the red LED turns off.
-
Page 9: Troubleshooting
This document was prepared by Monport USA LA Technical Support, by Rich Faraone, The Louisiana Hobby Guy LLC. It is designed as an aide for end-user use and problem solving. Monport & The Louisiana Hobby Guy LLC take no responsibility for the content, use or misuse of this document or user errors resulting in hardware failure or any other consequence.
