SuperLightingLED R9 Quick Start Manual

R9

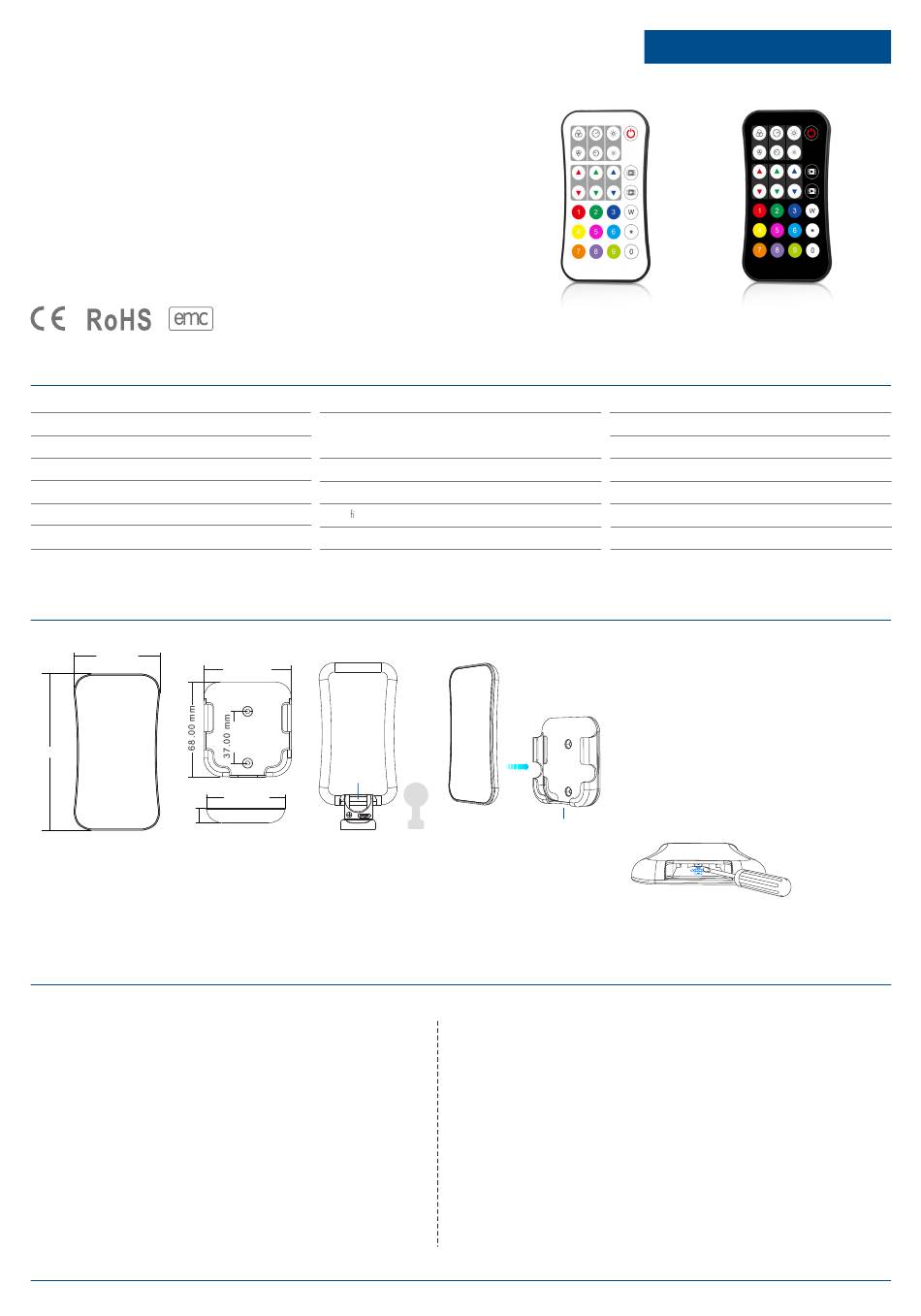

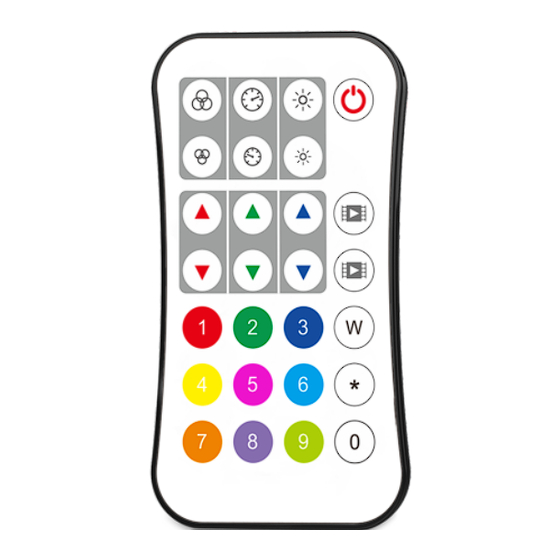

Ultrathin RGB/RGBW RF Remote Controller
● Apply to RGB or RGBW LED controller.
● Each remote can match one or more receiver.
● R C 2032 attery powered. b
● Operate with LED indicator light.
● White & Black available.
Technical Parameters
Input and Output
Output signal RF (2.4 GH z)
Working voltage 3VDC(CR2032)
Working current <5mA
Standby current <2μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Mechanical Structures and Installations
58.5mm
107mm
9mm
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press on/off key on the remote.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times means all matched remotes
were deleted.
User Manual Ver 1.2.2
2023.12
RED
1 zone RGB or RGBW / 27 key / Wireless remote 30m distance / CR2032 batter y
Safety and EMC
EMC standard (EMC)
Safety standard
Radio Equipment(RED)
Certi cation
63.00 mm
C 2032 Battery R
58.5mm
Note:
1. Before the first use, please remove the protective film on the battery.
2. If the LED indicator is not on when press key,
it is due to dead battery or bad contact caused by multiple plugging,
please replace the battery, or raise the battery shrapnel with a screwdriver.
Environment
Operation temperature
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Package
EN 62368-1:2020+A11:2020
Size
Gross weight
ETSI EN 300 328 V2.2.2
Warranty
CE,EMC,RED
Warranty
To fix the remote, two options are offered for selection:
Option 1:
fix the remote' back holder on the wall with two screws.
Option 2:
adhere the remote' back holder to the wall with paster.
Back holder
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
RF RGB/RGBW
O O
Ta: -30 C ~ +55 C
L114 x W65 x H20mm
0.058kg
5 years
Page 1
