SuperLightingLED C5304RF Quick Start Manual

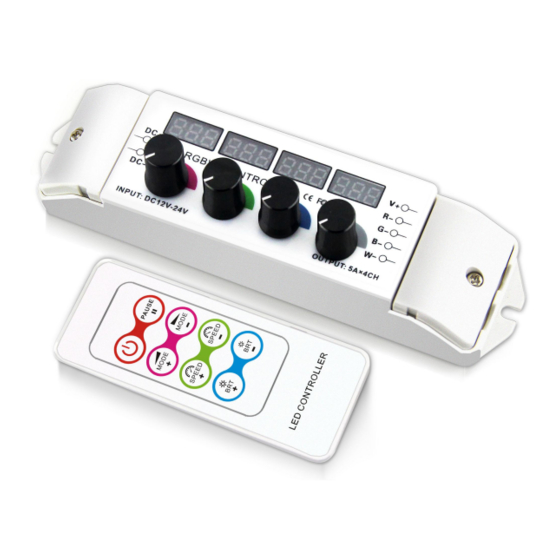

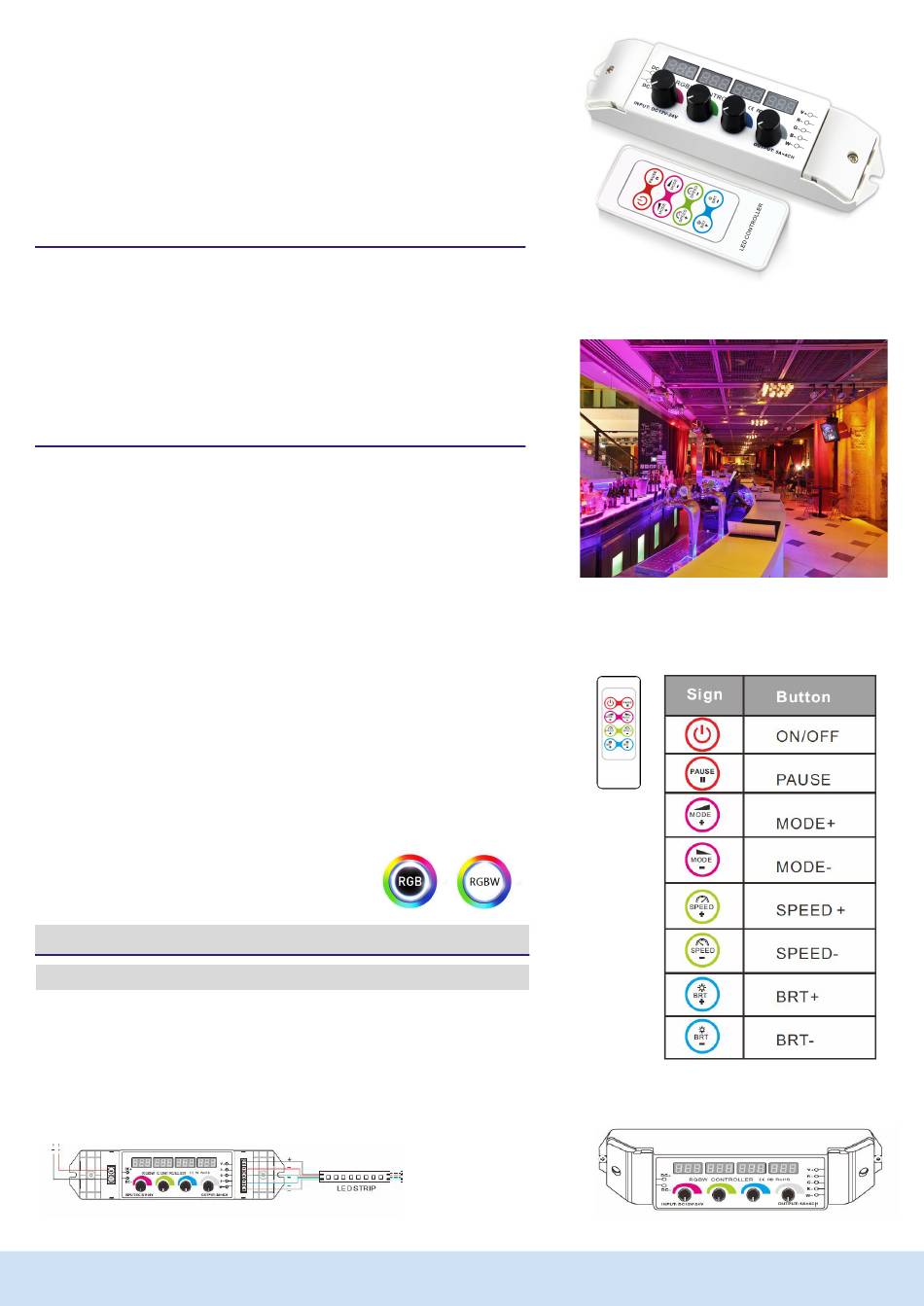

C5304RF DIGITAL RGBW LED CONTROLLER

C5304RF is advanced pre-programmed RGBW controller suitable for Superlight
12VDC and 24VDC color-changing LED products. The controller is simple to use and
features on/off control, brightness control, single-colors, RGBW colour animations,
multi-color management, gradual and rapid color fading, adjustable speed control,
and dimming (brightness control). By integrating SL5212 repeaters (available
separately), the controller can extend the control capabilities to an unlimited
quantity of constant voltage LED fixtures, strips or modules.

SPECIFICATIONS

Input & Operating Voltage:
Dimensions (L x W x H):
Maximum Power Output (A):
Maximum Power Output (W):
Max Net Weight:
Connection Method:
IP Protection Rating:

MODES AND OPTIONS

37 Built in Pre programmed RGBW Modes
16 Variable Speed Settings
16 Brightness Settings with Dimming Control 0-100%
Static Colour and Animated RGBW Modes
Rotary Dials Allow Precise Setting of RGBW Levels to Mix Desired Colours

TYPICAL APPLICATIONS

Domestic, commercial RGBW LED lighting installations.
Special RGB or RGBW functions, signage, displays, retail, event lighting and more
Superlight constant voltage RGBW LED strips, modules and fittings.
CONTROL & DIMMING OPERATION
Control and dimming operation is achieved by use of the digital rotary dials which
gives the user manual control of the RGBW output channels to mix desired RGBW
settings and colours. Additionally the RF remote handset can be used for wireless
control.

INSTALLATION GUIDELINES

IP20 Indoor Use Only
Ensure load does not exceed 5A per channel
Use only with approved 12/24VDC LED driver

ORDERING INFORMATION

C5304RF-00 4-Channel Digital RGBW LED Colour Controller 12V/24V

CUSTOMISATION OPTIONS

Full system and wiring diagrams available by special request
Superlight can design and supply dimming control or RGBW control systems
C5304 is compatible with Superlight signal repeaters for more complex installations
Custom options may be subject to minimum order quantities
All product specifications are subject to change without notice. Superlight accepts no liabilities as a result of
errors, updates or omissions. Please re-confirm all product details prior to ordering.
WWW.SUPERLIGHT.COM.AU
12/24VDC
176x46x30mm
5A (Max) Per Channel
12VDC=240W / 24VDC=480W
250g
Screw Terminals
IP20
Sales Rep: 0480 015 518 Sales Rep: 0480 031 109 Toll Free: 1300 344 963
SUPERLIGHT
