KARLSON TFTVGCH User Manual

90cm vertical glass hood
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
90CM VERTICAL GLASS HOOD
TFTVGCH
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFTVGCH and is the answer not in the manual?

Questions and answers

Related Manuals for KARLSON TFTVGCH

Summary of Contents for KARLSON TFTVGCH

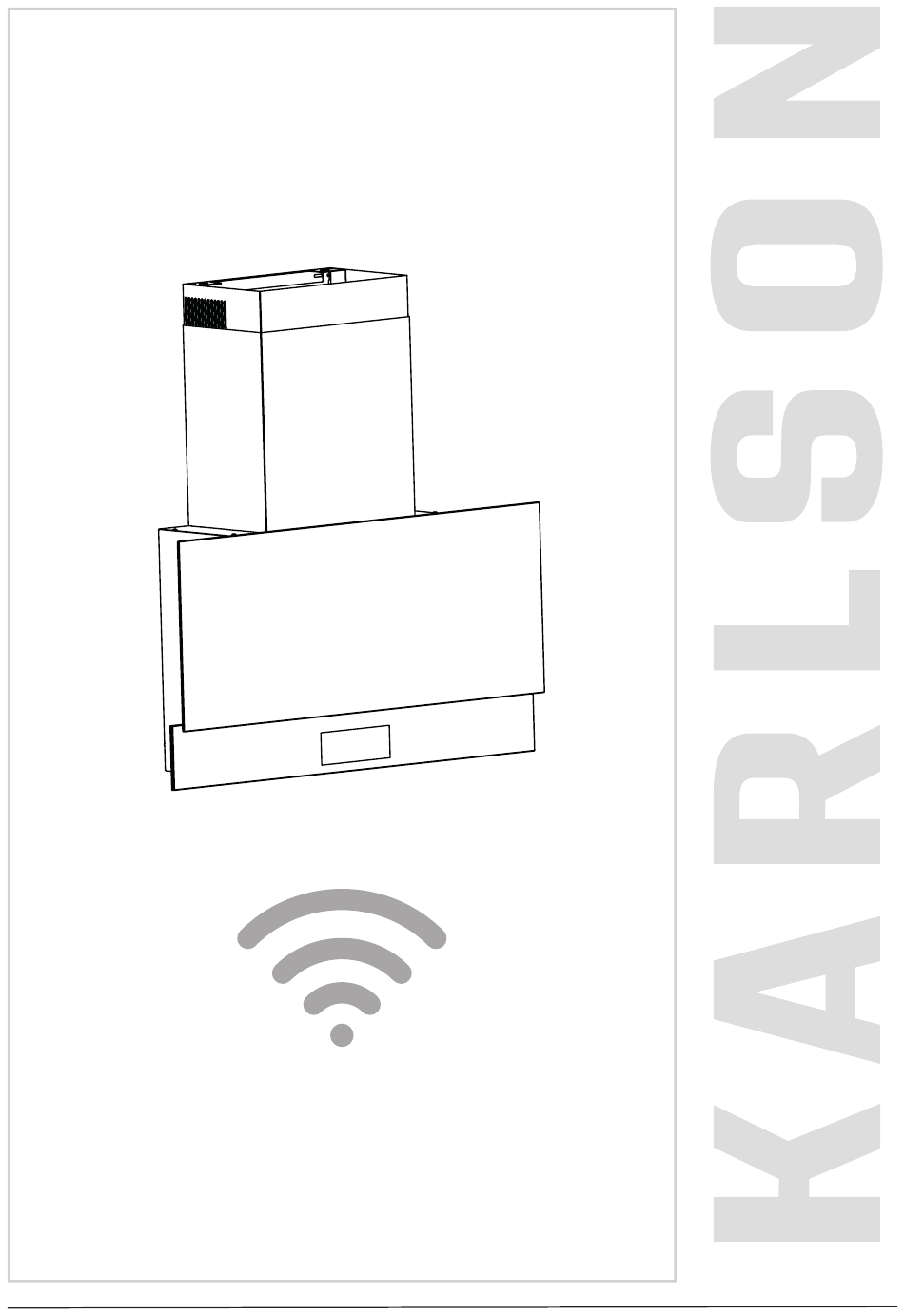

  • Page 1 90CM VERTICAL GLASS HOOD TFTVGCH User Manual...

  • Page 2: Table Of Contents

    Contents BEFORE USING YOUR APPLIANCE SAFETY ELECTRICAL INSTALLATION TECHNICAL DATA TROUBLESHOOTING GUARANTEE WHAT'S REQUIRED FOR INSTALLATION WHAT'S IN THE BOX INSTALLATION FUNCTIONS & SETTINGS CONNECTIVITY CARE & MAINTENANCE SERVICE & SPARES...

  • Page 3: Before Using Your Appliance

    Safety BEFORE USING YOUR SAFETY APPLIANCE You must comply with existing These instructions are for your safety. Please read the following instructions legislation on emission of fumes carefully before proceeding with the and environmental ventilation. installation and use of this appliance. Do not connect the hood to another vent for smoke, WARNING: All installation...
  • Page 4 Safety GENERAL SAFETY If a kitchen extractor hood • Do not use flammable sprays in close vicinity to the appliance. and appliances fuelled by gas or another fuel are used • If the supply cord is damaged, it must be replaced by the manufacturer, its service simultaneously, there must be an agent or similarly qualified persons in order...

  • Page 5: Electrical Installation

    Safety ELECTRICAL INSTALLATION All installation must be carried out by a To avoid the risks that are always present competent person or qualified electrician. when you use an electrical appliance it is Before connecting the mains supply ensure important that this appliance is installed that the mains voltage corresponds to the correctly and that you read the safety voltage on the rating plate.

  • Page 6: Technical Data

    Safety TECHNICAL DATA Supply voltage 220-240V~ 50Hz Power consumption - Motor 135W Power consumption - Cooking Light 1 x 3W Max Power consumption - Total 138W Protection class ILCOSD Code - Cooking Light DSL-3-S-415/25/23 Frequency band 434 MHz Information for EU No. 66/2014 and No. 65/2014 A. Information of the cooker hood.
  • Page 7 Safety TECHNICAL DATA Trademark Value Model identification TFTVGCH Annual Energy Consumption (AEC hood) (kWh/year) 14.5 Energy Efficiency class A+++ Fluid Dynamic Efficiency 39.7 Fluid Dynamic Efficiency class Lighting Efficiency (LEhood) (lux/W) 26.3 Lighting Efficiency class Grease Filtering Efficiency (GFE hood) 75.5...

  • Page 8: Troubleshooting

    Safety TROUBLESHOOTING IMPORTANT: If your hood appears not to be operating properly, before contacting Customer Services, please refer to the checklist below. Problem Possible Cause/Solution A change may be necessary, but first check that the lamp is correctly positioned and that the contact is correct. The lamps do not work.

  • Page 9: Guarantee

    This declaration of conformity is issued under the sole responsibility of the manufacturer. Object of the declaration: - Product: 90cm Vertical Glass Hood - Model: TFTVGCH The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: •...
  • Page 10 This declaration of conformity is issued under the sole responsibility of the manufacturer. Object of the declaration: - Product: 90cm Vertical Glass Hood - Model: TFTVGCH The object of the declaration described above is in conformity with the relevant legislation: • Radio Equipment Regulations 2017...
  • Page 11 Guarantee RECYCLING & DISPOSAL DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. This appliance is labelled in compliance with European directive 2011/65/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human...

  • Page 12: What's Required For Installation

    [04] x 1 Installation [07] x 2 WHAT'S REQUIRED FOR INSTALLATION PL Tylko WHAT'S IN THE BOX [01] x 1 [02] x 1 [03] x 1 Not included [04] x 2 Grease Filters WRKITV2 Vent Pack Ø150mm [05] x 1 VENT PACK Aluminium (Ø150 mm)

  • Page 13: Installation

    [04] [04] x 1 [04] x 1 Installation CHOOSE A TYPE OF INSTALLATION [07] x 2 [07] x 2 RECIRCULATION OPTION DUCTED OPTION Only for ducted option. Uniquemen (no extraction to the outside). (extraction to the outside) conduit. This appliance is for installation PL Tylko dla opcji z kanałem RO Numai pen on a wall only.
  • Page 14 Installation BEFORE YOU INSTALL THE HOOD ≥530mm ≥650mm Diagram shows minimum distance between hood & hob Mark the wall with the hole positions as shown in the diagram. The fixings Caution! Before drilling it is extremely supplied are suitable for solid walls important to check the wall for hidden only.
  • Page 15 Installation [04] x 1 [03] [07] x 2 [06] 380-610mm [03] x 1 [05] x 6 [06] [06] x 6 Only for ducted option. Uniquement pour l’opt 4 x 32mm conduit. PL Tylko dla opcji z kanałem RO Numai pentru opţiunea wentylacyjnym.
  • Page 16 Installation DUCTED OPTION (extraction to the outside) [02] [01] x 1 [02] x 1 [01] RECIRCULATION OPTION (no extraction to the outside) [01] [01] x 1 WRFILT50 WRFILT50 WRFILT50...
  • Page 17 Installation RECIRCULATION OPTION (no extraction to the outside) [02] [02] x 1 [07] x 2 4 x 13mm [07]...
  • Page 18 Installation...
  • Page 19 Installation RECIRCULATION OPTION (no extraction to the outside) [04] x 2 Grease Filters [05] x 1 [04] [05] Aluminium Grease Base Filter REMOVE GREASE FILTERS & REPLACE WITH OPTIONAL WASHABLE FILTERS OPTIONAL WASHABLE FILTERS AVAILABLE TO PURCHASE SEPARATELY WRWFILT22 WRWBAFILT22 WRWBAFILT22 WRWFILT22...

  • Page 20: Use

    BEFORE YOU START WARNING: Read the instructions before using the appliance. Switch on the appliance at the switched fused connection unit. The appliance is ready for use. FUNCTIONS & SETTINGS Control panel 20:00 LIGHT SILENT 1. Power On/Off 6. Timer 2.
  • Page 21 Language English 1. Set the language Press the arrow Español on the right-hand side of the screen. Deutsch Turning the hood on for the first time (continued) Français When the extraction hood is connected to the mains, the screen automatically turns on. NOTE: Any values that are not defined by the user will be set to default.
  • Page 22 Operation Operation ON/OFF KEY 20:00 LIGHT Turning the Screen On Press the power button The controls for the extractor fan and the light will appear. On the right-hand side of the screen, the side menu bar will appear with various options (Pause, Air Renovation, Timer, SILENT Audible Alarm and Settings).
  • Page 23 TIMER FUNCTION Setting the timer 20:00 The timer can only be used if the extractor fan is already on. 1. Press the TIMER key on the right-hand side menu bar and the motor will gradually 15 min start slowing down until turning off completely.
  • Page 24 AIR RENOVATION By pressing the AIR RENOVATION 20:00 on the right-hand side menu bar the following Air Renovation two options will appear: CYCLIC MODE 1. Press the CYCLIC key on the left-hand side Cyclic Instant of the screen (the icon will show blue). The extraction hood will turn on automatically after 55 minutes for a period of 5 minutes.
  • Page 25 SETTINGS MENU 20.00 Settings Brightness Language To access the Settings menu press the Sound Air Renovation Settings icon on the side bar. Connectivity Default settings Any changes to the settings are made by returning to the main settings menu. Filter Settings Information Date and Time Energy settings...
  • Page 26 Using for the first time When the hob is connected to the mains, it automatically turns on. SETTINGS MENU Language English 1. Set the language 20:00 Date & Time Press the arrow Español on the right-hand side of the screen. Date &...
  • Page 27 SETTINGS MENU 20:00 Filter Settings Maintenance Notification Filter Type Filter Settings Carbon filter Washable Carbon filter Aluminium filters Set filter maintenance alerts depending on Clean Period the type of filter installed in the extraction 20 h 30 h 40 h 50 h 60 h 70 h...
  • Page 28 SETTINGS MENU 20:00 Default Settings Restore to default settings Default Settings This option restores all settings back to the initial factory settings. 20:00 Information Information Key to Icons Here you can find useful information about Software Version v 1.01 the device and how it works. Logo Demo Mode 20:00...

  • Page 29: Connectivity

    • The hob and hood have to be set up to link together. To achieve this follow the steps for connectivity appropriate to your branded appliance: Connecting a KARLSON Hood with a Viceroy Hob Connecting a KARLSON Hood with a KARLSON Hob...
  • Page 30 Connectivity CONNECTING A KARLSON HOOD WITH A VICEROY HOB Setting up new linking method Stage B - Configure hood The process for connecting a KARLSON hood to a Viceroy hob happens in 1. The hood must be switched on and...
  • Page 31 Connectivity CONNECTING A KARLSON HOOD WITH A VICEROY HOB Stage B (continued) Stage C - Pairing Complete 4. Now touch the hob connection button 1. Press the keys together on the on the hood and it will turn green. hob one more time to store the connectivity settings.
  • Page 32 Each hob cooking zone has a maximum rated output of 10 comprising 1-9 and Boost (10). KARLSON AUTO MODE TABLE If the hood controls are HOB LEVEL SUMMARY...
  • Page 33 Connectivity CONNECTING A KARLSON HOOD WITH A KARLSON HOB Setting up new linking method 3. Scroll down and touch the 'Hood Options' The process for connecting a KARLSON - go to 'Hood Connectivity'. hood to a KARLSON hob happens in 3 stages: 20.00...
  • Page 34 Connectivity CONNECTING A KARLSON HOOD WITH A KARLSON HOB Stage B - Configure hood 4. Now touch the hob connection button on the hood and it will turn green. 1. The hood must be switched on and showing the Home Screen display 20.00...
  • Page 35 Connectivity CONNECTING A KARLSON HOOD WITH A KARLSON HOB Stage C - Pairing Complete 1. Click to accept hob and hood connection. 20.00 Hood Options Hood Connectivity Enable connectivity of the hood according to hood instructions manual. Confirm hob and hood are connected.
  • Page 36 Each hob cooking zone has a maximum rated output of 10 comprising 1-9 and Boost (10). KARLSON AUTO MODE TABLE If the hood controls are HOB LEVEL SUMMARY...
  • Page 37 Connectivity USING THE CONNECTIVITY FUNCTION Once the hood is connected to the hob, it can be controlled either manually or automatically and the power levels of the extractor fan and the light are displayed in grey on the hood’s screen. MANUAL MODE 20:00 This enables you to adjust the power levels...

  • Page 38: Care & Maintenance

    3 MONTHS Replacement Carbon filters WRFILT50 available online at karlson.co.uk or customer A banner will appear to alert you about when helpline in Service & Spares section. the filters need cleaning or replacing.
  • Page 39 Care & Maintenance LOOKING AFTER YOUR APPLIANCE Washable filter cleaning Lamp replacement Clean thoroughly once a month or whenever The LED lamps in this appliance are not a banner alerts you to clean them. replaceable by the consumer. If a lamp fails, please contact the Customer Helpline To do so, remove the filters and wash with hot in Service &...

  • Page 40: Service & Spares

    Service & Spares AFTER SALES & SERVICE SUPPORT For after sales, service enquiries & spares support Please contact: 0333 247 1128 Monday to Friday: 9am-5pm Saturday: 9am-1pm Email enquiries: wrenservice@apelson.co.uk Dedicated spares online at: karlson.co.uk KARLSON TFTVGCH V2 SEPT 2022...
