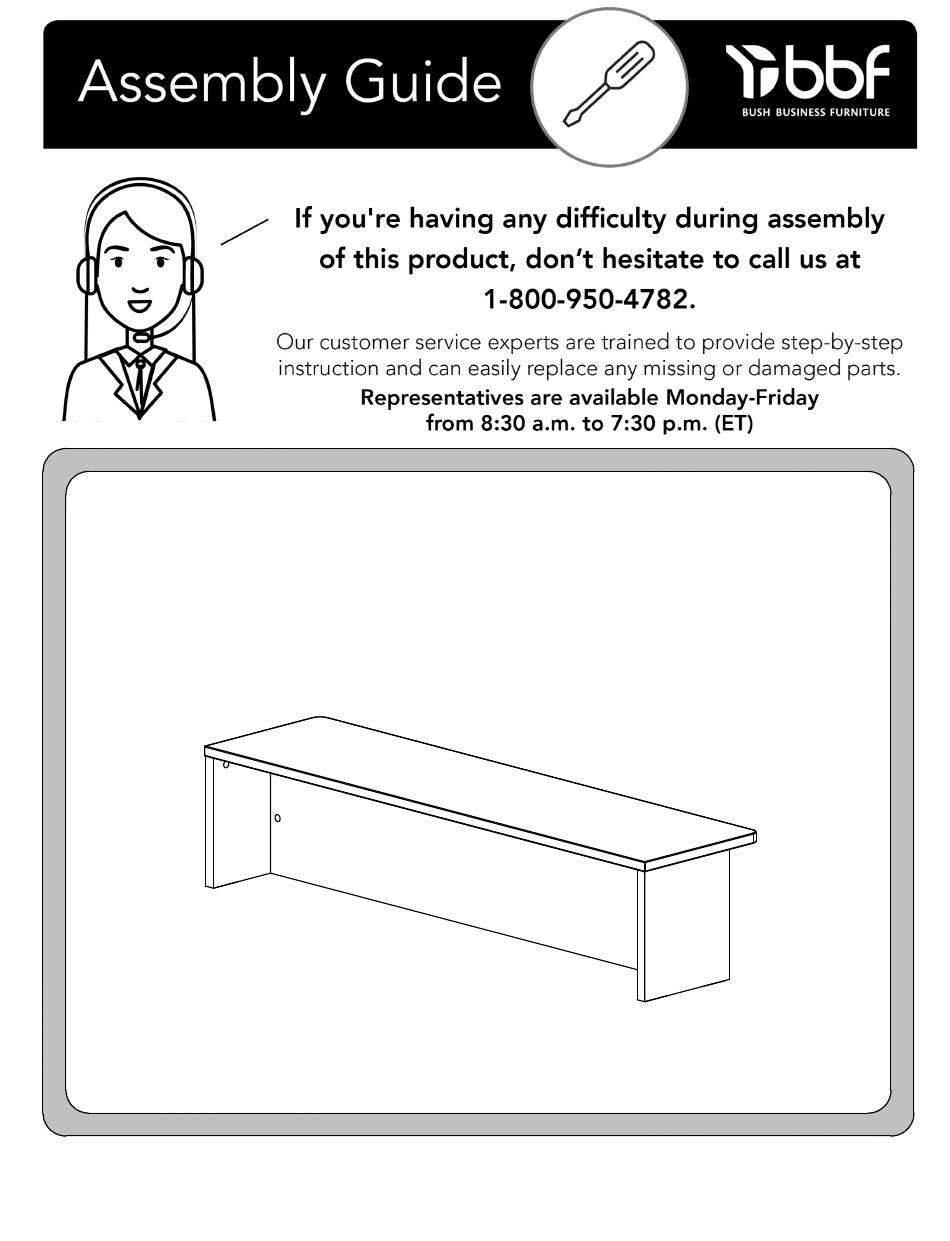

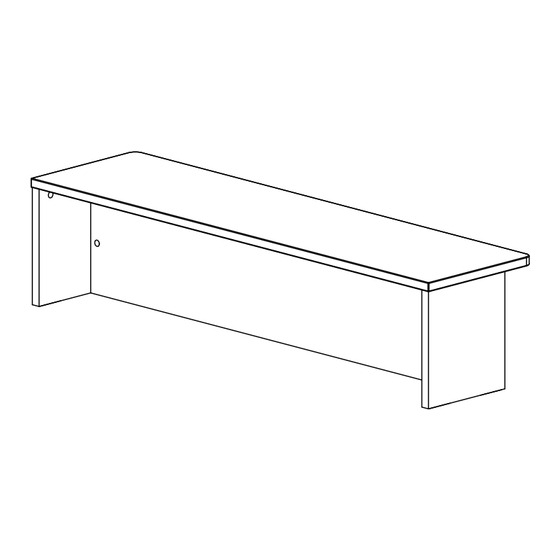

- Page 1 60W Straight Reception Shelf Lot Code # Instruction Sheet Number A218632 Keep manual for future reference.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Why it's Warning Don't important Serious • • Assemble following all instructions Do not move unit when loaded. Improper injury may using all indicated parts and hardware assembly, use •... - Page 3 Get Ready to Assemble A218632...
- Page 4 Get to know your Boards A218632 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 5 Get to know your Fasteners A218632 Fasteners are shown actual size. [ 9 ] H72988 KD Bolt [ 9 ] H181468US KD Cam3000 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 6 Get to know your Hardware A218632 Hardware not to scale. [ 4 ] H163969 Double Sided Tape [ 9 ] Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 7 Prepare Panel STEP A218632 [ 4 ] [ 2 ] H72988 H163969 KD Bolt Double Sided Tape Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 8 Assemble Panels STEP A218632 [ 2 ] H181468US 190° Minimum KD Cam3000 [ 2 ] Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 9 Prepare Panel STEP A218632 [ 7 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 10 Assemble Panels STEP A218632 [ 7 ] H181468US 190° Minimum KD Cam3000 [ 7 ] Team Lift Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 11 Install Reception Shelf STEP A218632 CAUTION, hutch can not be repositioned, once set on work surface. Attachment procedure: −Clean surface with 50% isopropyl rubbing alcohol. −Remove release paper. −Align hutch as shown on next page(s) before setting it on work surface. −Once hutch is attached, tap firmly with hand to ensure tape makes full contact.
- Page 12 Install Reception Shelf STEP A218632 Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 13 Maximum Loading and Cleaning STEP A218632 Gently clean surfaces with a damp sponge eraser. Maximum Weight: 200 Lbs. Peso Máximo: 200 Libras Poids Maximum: 90.6 kilogramme Congratulations! You are all done. If you have any questions or concerns, please call. Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
-
Page 14: Parts List
PARTS LIST A218632 AVH160MR LABEL CODE Part Number [ 9 ] H73621 W218620 W218621 W218623 Cover Cap W218622 AVH160SG LABEL CODE Part Number [ 9 ] H92521 W218624 W218625 W218627 Cover Cap W218626 AVH160NE LABEL CODE Part Number [ 9 ] H216046 W218628 W218629...
