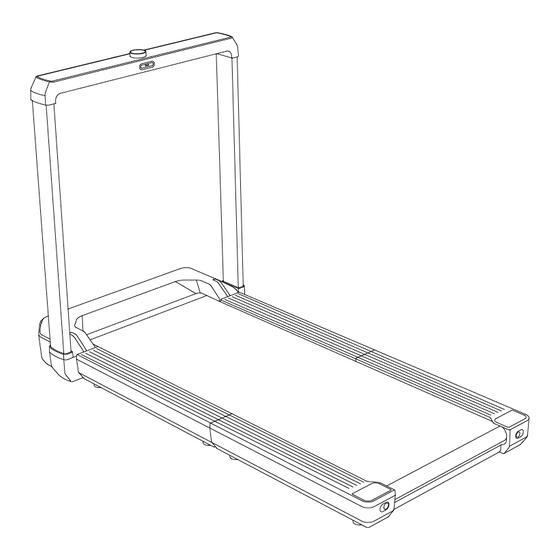

KINGSMITH WalkingPad Treadmill
TRX23F
USER MANUAL
Position to paste the nameplate
Please be careful to avoid slipping and injury when using.
Don't let children approach or use this equipment.
The Treadmill has an innovative design with multiple folding. Mind your hands when folding/unfolding it.
Please read the user manual carefully before using the appliance to ensure safe and proper use. Save the user
Scan the QR code
for APP download
manual for future reference.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for KingSmith WalkingPad TRX23F
Summary of Contents for KingSmith WalkingPad TRX23F
- Page 1 KINGSMITH WalkingPad Treadmill TRX23F USER MANUAL Position to paste the nameplate Please be careful to avoid slipping and injury when using. Don't let children approach or use this equipment. The Treadmill has an innovative design with multiple folding. Mind your hands when folding/unfolding it.
- Page 2 The appliance is intended for residential use. DANGER - To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 3 Product Introduction Before Starting Operation and Adjustment Care and Maintenance Troubleshooting Practice Guide Replacement and Disposal Specs Speed Range 1-16 km/h Unfolded Size 1545×774×1024 mm 1-10 mph 60.8×30.4×40.3 inch Running Area 1320×500 mm Folded Size 259×774×1024 mm 51.9×19.6 inch 10.1×30.4×40.3 inch Max Load 136 kg / 300 lbs Net Weight...
- Page 4 For your benefit, please read this manual carefully before using the treadmill. If you need our assistance while reading this manual, please write down the product model and serial number on the nameplate sticker at the front of the treadmill before contacting customer service. Knob button Display panel Mobile phone...
-
Page 5: Adjust The Running Belt
Before moving the treadmill, please make sure the running platform is in the locked state. It may be safer to move the treadmill with two people. When moving the treadmill, do not hold the running board with your hands and do not move it on uneven ground. - Page 6 This product must be grounded when in use. If there is a malfunction or damage, grounding can provide a path with the least resistance for the electric current, reducing the risk of electric shock. The product's power source includes an equipment grounding wire and a grounding plug.
- Page 7 The display panel uses advanced LED display technology and has wireless network connectivity. The following information can help you quickly familiarize and master the panel operation methods. ① After the power is on, the display panel lights up, all data are displayed as zero, and the treadmill goes into default mode.
- Page 8 If the safety key is not inserted, the LED display panel will show "SAFE", entering a safety state where the treadmill cannot be started. In this case, the safety key must be inserted before using the treadmill, as described in P4 of "How to turn on the power".
- Page 9 The treadmill can be used with a connected app to make your training more professional and enhance your running experience. ① Scan the QR code or search the Apple Store or Google Play for "KS Fit" and complete the installation and registration. KS Fit ②...
- Page 10 To make your treadmill work properly and prolong its lifespan, it is recommended to perform regular maintenance from the following aspects. If any damage and wear is found, stop using the treadmill immediately until the problem is solved. ① Clean the treadmill •...
- Page 11 ④ Fault code description * When a malfunction occurs, the display panel will show an error code. If the error code below appears, please turn off and restart the treadmill. If the error code still appears, please stop using it, write down the product model and serial number on the nameplate sticker at the front of the treadmill, and contact the dealer or customer service department for repair until the problem is resolved.
- Page 12 They can take this product for environmental safe recycling. Manufacturer: Beijing Kingsmith Technology Co., Ltd. Address: Floor 4, Building 25, Area 18, ABP Park, Fengtai, Beijing, China...
