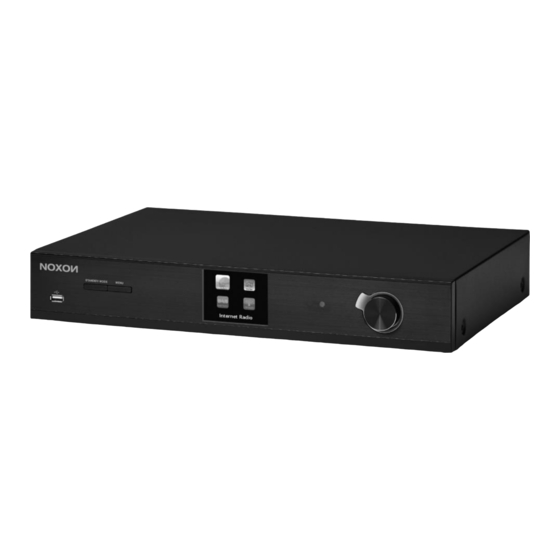

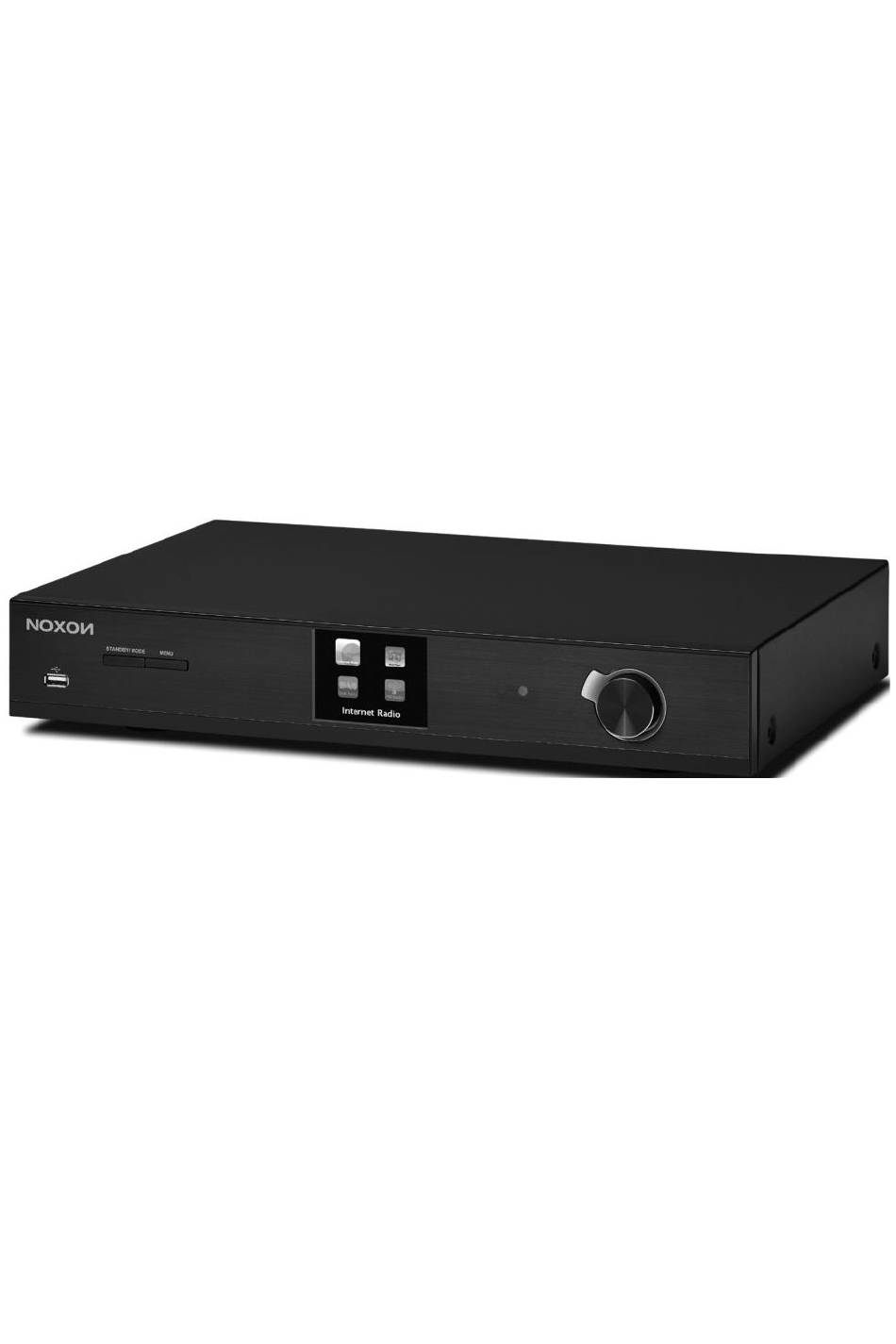

Noxon A570+ User Manual

Internet radio with fm/dab/dab+/fm tuner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Internet Radio with FM/DAB/DAB+/FM
Tuner
A570+
User Manual
Thank you very much for buying the A570+. In order to let you freely operate the product and
fully enjoy the overbalancing happiness it brings you, we have introduced each function of the
player in detail in this user manual. Please carefully read this user manual before use and keep
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A570+ and is the answer not in the manual?

Questions and answers

Related Manuals for Noxon A570+

Summary of Contents for Noxon A570+

  • Page 1 Internet Radio with FM/DAB/DAB+/FM Tuner A570+ User Manual Thank you very much for buying the A570+. In order to let you freely operate the product and fully enjoy the overbalancing happiness it brings you, we have introduced each function of the player in detail in this user manual.

  • Page 2: Table Of Contents

    Table of Contents 1. Network Requirement 2. Safety Precaution 3. Appearance and Key Description 4. Getting Started 5. A570+ Functions Main Menu System Settings Internet Radio Spotify Connect Music Player DMR (DLNA streaming) Bluetooth 5.10 Sleep 5.11 Alarm 5.12 Extra Features 6.

  • Page 3: Network Requirement

    These might lead to damage to the device. • If the NOXON NOVA II is moved from a cold environment into a warmer one, do let it adapt to the new temperature before operate the device. Otherwise, it might lead to condensation and cause malfunctions in the device.
  • Page 4 NOVA II is extremely dirty, it may be wiped off with a slightly moist cloth. Make sure the device is dried off after cleaning. • When you are necessary to ship the NOXON NOVA II, store it in its original package. Save the package for this purpose. Disposal •...

  • Page 5: Appearance And Key Description

    3. Appearance and Key Descriptions Description Functions 3.2” TFT Color Screen Display Back button Basic control of operation Reel Basic control of operation STANDBY/MODE Button Basic control of operation Menu Button Basic control of operation USB port USB playback BT Antenna Strengthen the BT receiver DAB/FM Antenna Strengthen the DAB/FM receiver...
  • Page 6 Use your thumb to press the lid of the battery compartment and pull it out. Install a CR2025 type 3V battery into the battery compartment, taking care to insert it with the positive (+) side up. Risk of explosion if battery is replaced by an incorrect type.

  • Page 7: Getting Started

    If the battery compartment does not close securely, stop using the product and attention should be drawn to the environmental aspects of battery disposal. 4. Getting Started The items enclosed in the packaging box are as follows: • A570+ unit •...
  • Page 8 Internet Radio again. In case you desire to change the network, enter System Setting to configure the corresponding connection. Refer to Section 5.2.1 and 5.2.3. Press and hold STANDBY/MODE on the device or press on the remote control to enter standby mode.

  • Page 9: A570+ Functions

    Add the audio files and folders you want to share with A570+ to the media library. 5. A570+ Functions Main Menu Under the main menu, you can select the following modes: Internet Radio, Spotify Connect, Media Player, DAB, FM, Bluetooth, Sleep and Alarm. Alternatively, press STANDBY/MODE on the device or MODE on the remote control to enter main page, move to the mode by rotating on the remote control.
  • Page 10 Time zone, daylight Set your time zone. If you country uses daylight saving and it is in effect, turn on the Daylight savings option. Manual update If you set No update, the wizard prompts you to set the time and date manually.
  • Page 11 WPS encrypted network WPS encrypted networks are identified by WPS at the start of the network name when the A570+ searches the available AP. Use one of the following methods of connection: Push button A570+ prompts you to press the connect button on the router. It then scans for a ready Push Button Connect network and connects.
  • Page 12 It will show connected if the setup is successful. If connecting fails, A570+ returns to a previous screen to try again. Press OK to quit the setup wizard. 5.2.2 Equaliser Several preset EQ modes are available: Normal, Flat, Jazz, Rock, Movie, Classic, Pop and News.
  • Page 13 connection, MAC address, Wlan region, DHCP, SSID, IP address, Subnet mask, Gateway address, Primary DNS and Secondary DNS. • Wlan region Select the Wlan region to obtain the optimal Wlan connectivity: Canada, Spain, France, Japan, Singapore, Australia, and Republic of Korea. •...

  • Page 14: Internet Radio

    additional features. You can either check manually or set A570+ to check periodically automatically (this is the default). If newer available software is detected, you will be asked if you want to go ahead with an update. If you agree, the new software is then downloaded and installed.
  • Page 15 5.3.1 Last listened When Internet radio mode restarts, the last-listened station is selected. To select another recently used station, enter here to select the listed station. Most recent stations appear at the top of the list. 5.3.2 Station list Browse Internet broadcasts that organized into different categories, Location, Genre, Popular and New.

  • Page 16: Spotify Connect

    If you already have an account and wish to add an additional radio, log in to your account and select My preferences > Add another Wi-Fi radio. Once your radio is registered with the portal, you can immediately use the Internet radio favourites and added stations features.

  • Page 17: Music Player

    Step 2. Fire up the Spotify app on your phone, tablet or PC using the same wifi network as above. Step 3. Play a song on Spotify and hit ‘DEVICES AVAILABLE’. Step 4. Choose your device and your music will start playing out loud. For more information on how to set up and use Spotify Connect please visit www.spotify.com/connect Licenses...
  • Page 18 There is also a search function which finds tracks in a similar way to Internet radio search. From Music, there are numerous ways of selecting tracks including Genre, Artist, Album, Composer and Rating. Once you have found a track you want to play, press OK. A short press plays the track immediately.

  • Page 19: Dmr (Dlna Streaming)

    press plays the track immediately. You can use to play the previous or next track, press and hold to rewind or fast forward. press and hold to rewind or fast forward (x1, x2, x4). Press on the remote control to play or pause. Press on the remote control to stop playback and return to the music list.
  • Page 20 Open Windows Media Player to enable Allow remote control of my Player. Right click any music in the library and choose Play to A570+. A box of music playback pops up for the streaming. 5.6.2 Control on Smartphone / Tablet You may search (with keyword: DLNA) and install any free or commercial DLNA Apps from Google Play or Apple Store if you are using Android mobile, tablet or iPhone / iPad.

  • Page 21: Dab

    Select player Select server NOTE: Some Apps may not support streaming music from iPhone/iPod but iPhone/iPod could still be used to control streaming music from other servers. Some Apps may allow to play the music to multi players at the same time. Some Apps can create a playlist if you choose several music.
  • Page 22 Once the scan is complete, the radio shows a list of available stations. To remove stations that are listed but not unavailable, choose Prune invalid. Turn the navigate reel to view a list of stations and press to select. Once selected, the station plays and the screen shows information about station, track or show as broadcast.
  • Page 23 Ensemble lists groups of stations that are broadcast together on the same ensemble. Valid lists valid stations first, alphanumerically, then off-air stations. FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast. To find a station, press OK.

  • Page 24: Bluetooth

    • Scan settings By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select Yes after choosing Strong station only? •...

  • Page 25: Alarm

    5.11 Alarm There are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode. Select Alarms under Main menu to set or change an alarm. Select the alarm number (1 or 2) then configure the following parameters: Enable: on/off, Frequency: Daily, Once, Weekends or Weekdays,...
  • Page 26 level. 5.12.2 RCA out socket It allows you to connect a RCA cable from A570+ to your own HiFi speaker system to enhance sound performance. 5.12.3 Coaxial output socket It allows you to connect an audio cable from A570+ to your own HiFi speaker system to enhance sound performance.
  • Page 27 mode on your smartphone / tablet and on the display of the device simultaneously. to go to the standby mode. Tap again or “wake up” to go to operation mode. Tap "Browse" to view the details. Tap to view the saved preset stations, and tap (+) to add the playing station to the desired preset station number.
  • Page 28 Tap the Spotify icon on the Spotify app, then choose the preferred device (NOXON NOVA II). It should be displayed in the Spotify app. Once selected, music will be streaming to the device. • Music Player Browse the music files from shared media, choose music from the app.

  • Page 29: Troubleshooting

    From the app, you can also control to operate STANDBY/ON, EQUALIZER, CHANGE PIN and RENAME of the device under SETTING menu For CHANGE PIN setting, please also refer to Section 5.2.3. RadioVIS is a channel for broadcasters to deliver Slideshows over the Internet. RadioVIS Slideshows appear like the DAB+ slideshows, they are closely associated with the broadcasted audio service.
  • Page 30 4. A firewall is activated on the network – set the respective program in such a way that access is possible. 5. Reboot the router WiFi connection cannot be 1. Check the availability of WLAN network on the router. established. 2.
  • Page 31 case the function could not resume, please use the product in other location. The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.

  • Page 32: Specifications

    7. Specification Model number A570+ Description Internet radio with FM/DAB/DAB+/BT adaptor Display 3.2", 320 x 240, TFT colour display Network supported IEEE 802.11b/g/n wireless (WiFi) 10/100 Ethernet (LAN) Frequency band WiFi : 2.400 - 2.4835 GHz Bluetooth: 2.4GHz - 2.48 GHz WiFi: 17.432dBm Max.
  • Page 33 Use only the power supply listed in the user instructions This product operates under Wi-Fi mode at 2.412-2.472GHZ and is designated only to be used inside a normal household environment. This product is suited for this purpose within all EU counties.
