- Page 1 MPPT Solar Charge Controller User manual GB: Read these instructions 2606 / 3906 carefully before use and keep it safe for future reference...
-
Page 2: Safety Information
Thank you for selecting the Vechline 2606/3906 series for MPPT solar charge controller. Please read this manual carefully before using the product and pay attention to the safety information 1. SAFETY INFORMATION Read all of the instructions in the manual before installation. -
Page 3: Product Features

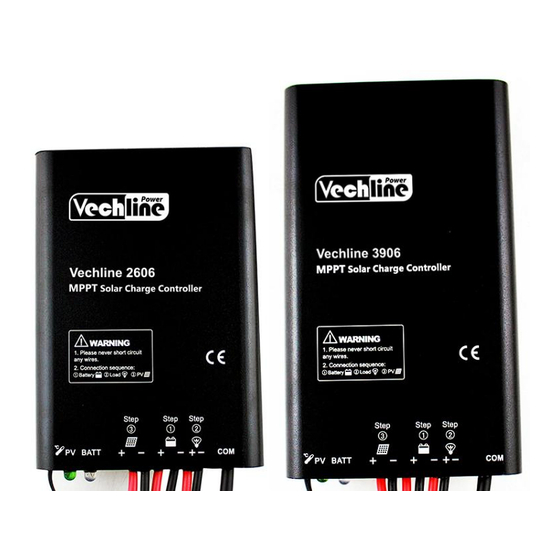

3. PRODUCT FEATURES Charging Status LED ⑴ ① Temperature Sensor ⑤ indicator PV Positive and Battery Status LED ② ⑥ Negative Wires indicator Battery Positive and RS485 waterproof ③ ⑦ ⑵ Negative Wires port Load Positive and Waterproof ④ ⑧ Negative Wires cap(Included) (1) The temperature sensor short-circuited or damaged, the controller be charging or... -
Page 4: Led Indicators
5. LED-INDICATORS Indicator Color Status Instruction PV connection normal but low voltage(irradiance) Green On Solid from PV, no charging No PV voltage(night time) or PV connection problem Green Green SlowlyFlashing(1Hz) In charging Green FastFlashing(4Hz) PV Over voltage Green On Solid Normal Green SlowlyFlashing(1Hz) -
Page 5: Accessories And Software
Note. In the mode of Light ON/OFF and Light ON/Timer, the load is turned on after 10 minutes delay. 7. ACCESSORIES AND SOFTWARE 1） PC Software For download, visit the item on the website of www.ocs-recreatie.nl and download the QR code. -
Page 6: Technical Specification
When the battery voltage reaches to the set point of Over Voltage Disconnect Voltage, the controller will stop charging the battery to protect the battery from being over charged to break down. Battery Over Discharge When the battery voltage reaches to the set point of Low Voltage Disconnect Voltage, the controller will stop discharging the battery to protect the battery from being over discharged to break down. -
Page 7: 10. Troubleshooting
Sealed :14.4V/Gel：14.2V/Flooded:14.6V/User:9-17V (× Boost Charging Voltage 2/24V) Float Charging Voltage Sealed/Gel/Flooded:13.8V/User:9-17V (×2/24V) Low Voltage Reconnect Voltage Sealed/Gel/Flooded:12.6V/User:9-17V (×2/24V) Low Voltage / Disconnect Sealed/Gel/Flooded:11.1V/User:9-17V (×2/24V) Voltage Boost Charging Voltage LiFePO4:14.5V/ Li-NiCoMn:12.5V / User:9-17V (×2/24V) Low Voltage / Disconnect LiFePO4:12.8V / Li-NiCoMn:10.5V / User:9-17V (×2/24V) Voltage Low Voltage / Disconnect LiFePO4:11.1V / Li-NiCoMn:9.3V / User:9-17V (×2/24V) - Page 8 User disassembly or attempted repair the controller without permission. The controller is damaged due to natural elements such as lighting. The controller is damaged during transportation and shipment. Vechline is powered by OCS-RECREATIE GROOTHANDEL BV Tel: +31-(0)74 2455680 E-mail：info@ocs-recreatie.nl...
