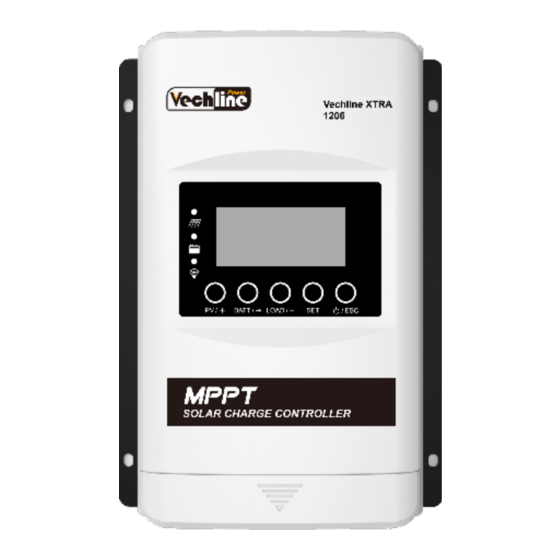

Vechline 1206 Series User Manual

Mppt solar charge controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

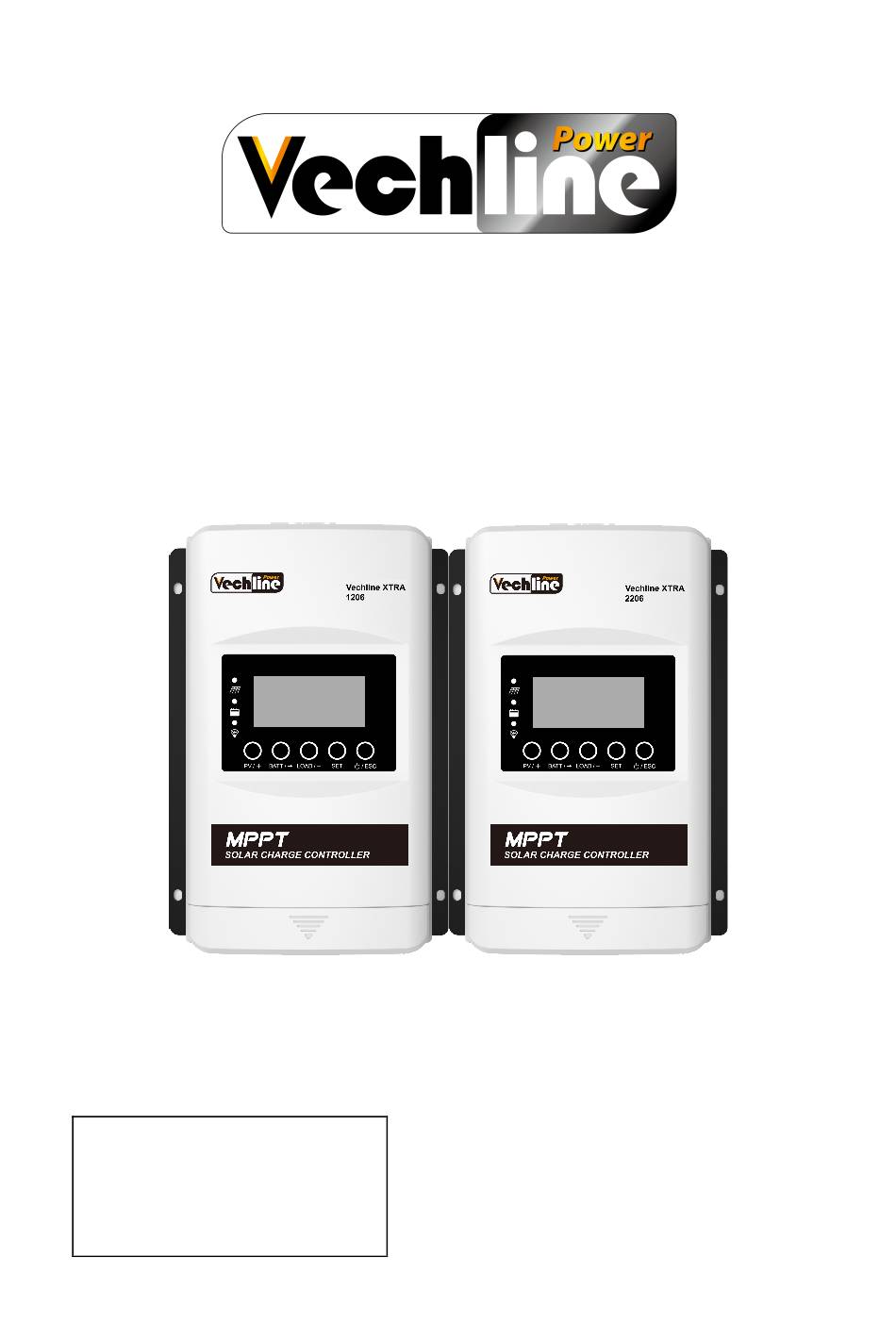

MPPT Solar Charge Controller
User manual
Read these instructions
carefully before use and
keep it safe for future
reference.
XTRA1206 / XTRA2206

Advertisement

Table of Contents
loading

Summary of Contents for Vechline 1206 Series

  • Page 1 MPPT Solar Charge Controller User manual Read these instructions carefully before use and keep it safe for future reference. XTRA1206 / XTRA2206...
  • Page 3 Thank you for selecting the Vechline 1206/2206 series for MPPT solar charge controller. Please read this manual carefully before using the product and pay attention to the safety information IMPORTANT SAFETY INSTRUCTIONS This manual contains all instructions of safety, installation and operation for XTRA series Maximum Power Point Tracking (MPPT) controller.

  • Page 4: Table Of Contents

    CONTENTS 1. General Information ................ 1 1.1 Overview ..........1 1.2 Characteristics ......... 3 1.3 Naming Rules of Controller models ....... 3 1.4Product Classification ........4 2. Installation Instructions ..............5 2.1 General Installation Notes ....... 5 2.2 PV Array Requirements ......... 6 2.3 Wire Size ..........

  • Page 5: General Information

    GENERAL INFORMATION 1.1 OVERVIEW XTRA series controller carry XDS2 display unit that adopt the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions;...
  • Page 6 temperature range • High quality and low failure rate components of ST or IR to ensure service life • Advanced MPPT technology& ultra-fast tracking speed guarantee tracking efficiency up to 99.5% • Maximum DC/DC transfer efficiency is as high as ★...

  • Page 7: Characteristics

    1.2 CHARACTERISTICS ❶ ❺ Figure 1 Product Characteristics ❷ ❻ ★ port RS485 communication port ❸ ❼ PV Terminals Terminal protection cover ❹ ❽ Battery Terminals Display units Load Terminals Mounting Hole Φ5mm ★If the temperature sensor is shortcircuit or damaged, the controller will charge or discharge according the voltage setting point at the default temperature setting of 25 ºC(no temperature compensation).

  • Page 8: Product Classification

    1.4 PRODUCT CLASSIFICATION Classify Model Picture Display LED Indicators: PV & battery & load working status Buttons: View or set the parameters or clear the error information. LCD: PV display: voltage/current /generated XTRA Advanced energy/power XDS2 Battery display: voltage/current/ temperature/capacity Load display: voltage/current/power /consumed energy/load...

  • Page 9: Installation Instructions

    2. INSTALLATION INSTRUCTIONS 2.1 GENERAL INSTALLATION NOTES  Please read the entire installation instructions to get familiar with the installation steps before installation.  Be very careful when installing the batteries, especially flooded lead-acid battery. Please wear eye protection, and have fresh water available to wash and clean any contact with battery acid.

  • Page 10: Pv Array Requirements

    made to either one battery or a group of batteries in a battery bank.  Multiple same models of controllers can be installed in parallel on the same battery bank to achieve higher charging current. Each controller must have its own solar module(s).
  • Page 11 NOTE: The above parameter values are calculated under standard test conditions (STC (Standard Test Condition) ： Irradiance 1000W/m ， Module Temperature 25℃，Air Mass1.5.) (2) Maximum PV array power. The MPPT controller has the function of charging current/power-limiting, that is, during the charging process, when the charging current or power exceeds the rated charging current or power, the controller will automatically limit the charging current or power to the rated range, which...
  • Page 12 Condition 3: Actual charging power of PV array＞Rated charging power of controller Condition 4: Actual charging current of PV array＞Rated charging current of controller When the controller operates under “Condition 3” or “Condition 4”，it will carry out the charging as per the rated current or power.

  • Page 13: Wire Size

    Rated Rated Max. PV Max. PV open Model Charge Charge Array circuit Current Power Power voltage ① 130W/12V 195W/12V XTRA1206 260W/24V 390W/24V ② 260W/12V 390W/12V XTRA2206 520W/24V 780W/24V ①At 25℃ environment temperature ②At minimum operating environment temperature 2.3 WIRE SIZE The wiring and installation methods must conform to all national and local electrical code requirements.
  • Page 14 Max. PV input Model Max. PV wire size ＊ current XTRA1206 /12AWG XTRA2206 /10AWG ＊These are the maximum wire sizes that will fit the controller terminals. CAUTION: When the PV modules connect in series, the open circuit voltage of the PV array must not exceed 46V (XTRA**06) at 25℃...

  • Page 15: Mounting

    2.4 MOUNTING WARNING: Risk of explosion! Never install the controller in a sealed enclose with flooded batteries! Do not install in a confined area where battery gas can accumulate. WARNING: Risk of electric shock! When wiring the solarmodules,the PV array can produce a high opencircuit voltage, so turn off the breaker before wiring and be careful when wiring.
  • Page 16 to ensure natural thermal convection. Please see Figure 2-1: Mounting. CAUTION: If the controller is to be installed in an enclosed box, it is important to ensure reliable heat dissipation through the box. Step 2：Connect the system in the order of ❶battery ❷ Figure 2-2 Schematic of wiring load❸PV array...
  • Page 17 CAUTION:A fuse which current is 1.25 to 2 times the rated current of the controller, must be installed on the battery side with a distance from the battery not greater than 150 mm. CAUTION: If the controller is to be used in an area with frequent lightning strikes or unattended area, it must install an external surge arrester.
  • Page 18 Connect the remote temperature sensor cable to the interface ① and place the other end close to the battery. CAUTION: If the remote temperature sensor is not connected to the controller,, the default setting for battery charging or discharging temperature is 25 °C without temperature compensation.

  • Page 19: Display Units

    3. DISPLAY UNITS 3.1 ADVANCED DISPLAY UNITS (XDS2) Indicator: Indicator Color Status Instruction PV connection normal but Green On Solid low voltage(low irradiance) from PV, no charging No PV voltage(night time) Green or PV connection problem Slowly In charging Green Flashing(1Hz) Green Fast Flashing(4Hz)
  • Page 20 ①When a lead-acid battery is used, the controller doesn’t have the low temperature protection. ②When a lithium battery is used, the system voltage can’t be identified automatically Button PV browsing interface Press the PV- button Setting data + Press the PV- Setting the LCD cycle time button and hold 5s BATT browsing interface...
  • Page 21 Informa Informati Icon Icon Icon Information tion discharging charging Discharging Night Charging PV parameters Display：Voltage/Current/Power/Generated Energy Battery parameters Display：Voltage/Current/Temperature/Battery capacity level...
  • Page 22 Load parameters Display：Voltage/Current/Power/Consumed energy/Load working mode-Timer1/ Load working mode-Timer2 Setting parameters, battery type: Sealed(Default) User Flooded Operation: Step 1: Press the SET-button for the setting interface. Step 2: Press the BATT-button and hold 5secondsfor the battery type interface. Step 3: Press the PV- or LOAD-button to choose the battery type.
  • Page 23 Setting parameters, battery capacity: Operation: Step 1: Press the SET-button for the setting interface. Step 2: Press the BATT-button and hold 5s for the battery type interface. Step 3: Press the SET-button for the battery capacity interface. Step 4: Press the PV- or LOAD button to set the battery capacity.
  • Page 24 NOTE: The LCD cycle default time is 2 seconds, the setting time range is 0～20 seconds Operation: Step 1: Press the SET-button for the setting interface. Step 2: Press the PV-button and hold 5s for the LCD cycle time interface. Step 3: Press the PV-or LOAD-button to set the LCD cycle time.

  • Page 25: Control Parameters Setting

    CONTROL PARAMETERS SETTING 4.1 BATTERY TYPES 4.1.1 Support battery types Sealed(default) Lead-acid battery Flooded User LiFePO4(4S/12V;8S/24V;16S/48V) Li(NiCoMn)O Lithium battery (3S/12V;6S/24V;12S/48V) User CAUTION: When the default battery type is selected, the battery voltage control parameters will be set by default and can’t be changed. To change these parameters, select "User" battery type. .2 Battery Voltage Control Parameters ...
  • Page 26 Battery type Sealed Flooded User Voltage Over Voltage 9～17V 16.0V 16.0V 16.0V Disconnect Voltage Charging Limit Voltage 15.0V 15.0V 15.0V 9～17V Over Voltage 15.0V 15.0V 15.0V 9～17V Reconnect Voltage Equalize Charging 14.6V —— 14.8V 9～17V Voltage Boost Charging Voltage 14.4V 14.2V 14.6V 9～17V...
  • Page 27 The following rules must be observed when modifying the parameter values in User for lead-acid battery. Over Voltage Disconnect Voltage > Charging Limit Voltage ≥ Equalize Charging Voltage ≥ Boost Charging Voltage ≥ Float Charging Voltage > Boost Reconnect Charging Voltage.
  • Page 28 Charging Limit 9～17V 14.6V 12.6V Voltage Over Voltage 9～17V 14.7V 12.7V Reconnect Voltage Equalize Charging 14.5V 12.5V 9～17V Voltage Boost Charging 14.5V 12.5V 9～17V Voltage Float Charging 13.8V 12.2V 9～17V Voltage Boost Reconnect 13.2V 12.1V 9～17V Charging Voltage Low Voltage 12.8V 10.5V 9～17V...
  • Page 29 The following rules must be observed when modifying the parameter values in User for lithium battery. -Over Voltage Disconnect Voltage>Over charging protection voltage (Protection Circuit Modules(BMS))+0.2V ※ -Over Voltage Disconnect Voltage>Over Voltage Reconnect Voltage＝Charging Limit Voltage ≥ Equalize Charging Voltage＝Boost Charging Voltage ≥ Float Charging Voltage>Boost Reconnect Charging Voltage;...

  • Page 30: Settings

    WARNING: The required accuracy of BMS shall be at least 0.2V. If the deviation is higher than 0.2V, the manufacturer will assume no liability for any system malfunction caused by this. 4.1.3 Settings 1) PC setting  Download software for connection: Visit our website www.ocs-recreatie.nl and click on the item for download the QR code.
  • Page 31 2) APP software setting Download software(User for lead-acid battery): Visit the item on the website of www.ocs- recreatie.nl and download the QR code. Download software(User for lithium battery): Visit the item on the website of www.ocs- recreatie.nl and download the QR code...

  • Page 32: Load Working Modes

    4.2 LOAD WORKING MODES 4.2.1 LCD settings LCD setting for XDS2 display and operation When the LCD shows above interface, operate as following: Step 1: Press the SET- button for the setting interface. Step 2: Press the LOAD- button and hold 5s for the load working mode interface. Step 3: Press the PV- or LOAD-button to set the load working modes.

  • Page 33: R485 Communication Setting

    Load will be on for 2 Load will be on for 2 hours hoursafter sunset before sunrise Load will be on for 3 ～ Load will be on for 3～13 ～ ～ 13hoursafter sunset hours before sunrise Load will be on for 14 Load will be on for 14 hoursafter sunset hours before sunrise...
  • Page 34  Light ON/OFF  Light ON+ Timer...
  • Page 35  Time Control Control the load ON/OFF time through setting the real-time clock. Load working mode settings: (1)PC setting Download software for connection: : Visit the item on the website of www.ocs-recreatie.nl and download the QR code. 2)APP software setting...
  • Page 36 Download software(User for lead-acid battery): Visit the item on the website of www.ocs- recreatie.nl and download the QR code. Download software(User for lithium battery): Visit the item on the website of www.ocs- recreatie.nl and download the QR code.

  • Page 37: Accessories (Optional)

    4.3 Accessories (optional) After the controller is connected with the eBox through the RS485 to Bluetooth standard Ethernet cable (parallel cable),the operating status and Adapter related parameters of the controller can be monitored by the Ebox mobile APP software through Bluetooth signals. NOTE: For setting and operation of accessory, please refer to accessory’s user manual.

  • Page 39: Protections, Troubleshooting And Maintenance

    5. PROTECTIONS, TROUBLESHOOTING AND MAINTENANCE 5.1 PROTECTION When the charging current or power of the PV array exceeds the controller’s rated current or power, it will be charge at the rated current or power. PV Over NOTE: When the PV modules are in series, ensure that the open-circuit voltage of the Current/power PV array does not exceed the "maximum PV open-circuit voltage"...
  • Page 40 The controller can detect the battery temperature through an external temperature sensor. The Battery controller stops working when its temperature exceeds 65 °C and restart to work when its Overheating temperature is below 55 °C. When the temperature detected by the optional temperature sensor is lower than the Low Lithium Battery Temperature Protection Threshold(LTPT), the controller will stop charging and discharging automatically.

  • Page 41: Troubleshooting

    When the internal temperature is 81℃, the reduce charging power mode which reduce the charging power of 5%,10%,20%,40% every increase 1 ℃is turned on. If the internal temperature is greater than 85℃, the controller will stop charging. When the temperature declines to be below 75 ºC, the controller will resume.
  • Page 42 Charging indicator Green fast flashing Check if battery voltage is Battery level shows full, battery Battery over higher than OVD(over voltage frame blink, fault icon blink voltage disconnect voltage), and disconnect the PV. Charging indicator Red on Solid Battery level shows empty, battery Check if battery voltage is higher frame blink, fault icon blink Battery over...

  • Page 43: Maintenance

    5.3 MAINTENANCE The following inspections and maintenance tasks are recommended at least two times per year for best performance. Make sure controller firmly installed in a clean and dry  ambient. Make sure no block on air-flow around the controller. ...

  • Page 44: Technical Specifications

    6. TECHNICAL SPECIFICATION Electrical Parameters XTRA XTRA Item 1206 2206 System nominal voltage 12/24VDC Auto ① Rated charge current Rated discharge current Battery voltage range 8～32V ② Max. PV open circuit voltage ③ MPP voltage range (Battery voltage +2V)～36V Rated charge power 130W/12V 260W/12V 260W/24V...
  • Page 45 Full load efficiency 96.7% Self-consumption ≤14mA(12V) ≤15mA(24V) Discharge circuit voltage drop ≤0.23V Temperature compensate coefficient -3mV/℃/2V (Default) ④ Grounding Common negative RS485 interface 5VDC/200mA(RJ45) Default:60S,Range:0~999S(0S:the LCD backlight time backlight is ON all the time) ①When lithium battery is used, the system voltage can’t be identified automatically. ②At minimum operating environment temperature ③At 25℃...
  • Page 46 Environmental Parameters XTRA XTRA Item 1206 2206 -25℃～+50℃(LCD) Working environment temperature (100% input and output) ◆ -30℃～+50℃(No LCD) Storage temperature range -20℃～+70℃ Relative humidity ≤95%, N.C. Enclosure IP33 ★ Pollution degree ◆The controller can full load working in the working environment temperature, When the internal temperature reach to 81℃, the reducing charging power mode is turned on.
  • Page 47 Mechanical Parameters Item XTRA1206 XTRA2206 Dimension 175×143×48mm 217×158×56.5mm Mounting dimension 120×134mm 160×149mm Mounting hole size Φ5mm Terminal 12AWG(4mm 6AWG(16mm Recommended cable 12AWG(4mm 10AWG(6mm Weight 0.57kg 0.96kg Certification Safety EN/IEC62109-1 EMC(Emission immunity) EN61000-6-3/EN61000-6-1 47 CFR Part 15, Subpart B Performance &function IEC62509 ROHS IEC62321-3-1...

  • Page 48: Annex I Conversion Efficiency Curves

    Annex I Conversion Efficiency Curves Illumination Intensity: 1000W/m Temp: 25ºC Model: XTRA1206 1. Solar Module MPP Voltage(17V, 34V) / Nominal System Voltage(12V) 2. Solar Module MPP Voltage(34V,45V) / Nominal System Voltage(24V)
  • Page 49 Model: XTRA2206 1. Solar Module MPP Voltage(17V, 34V) / Nominal System Voltage(12V) 2. Solar Module MPP Voltage(34V,45V) / Nominal System Voltage(24V)

  • Page 50: Annex Ii Mechanical Dimension Diagram

    Annex II Mechanical Dimension Diagram XTRA1206 (Unit: mm)
  • Page 51 XTRA2206 (Unit: mm)
  • Page 53 Vechline is powered by OCS-RECREATIE GROOTHANDEL BV Tel: +31-(0)742455680 E-mail：info@ocs-recreatie.nl Website:www.ocs-recreatie.nl...
