INSTALLATION GUIDE
Point of Use Faucets
Nov 2023
Pressure Range - MINIMUM 35 PSI - Recommended Maximum 75 PSI
has certified that this faucet complies with NSF61 and NSF372 drinking water
system component requirements. These requirements meet California Health and
Safety Code requirements for low lead (AB1953) as well as the low
lead requirements of the US Safe Drinking Water Act of 2014.
These dispensing faucets are NOT compatible with REVERSE OSMOSIS (RO)

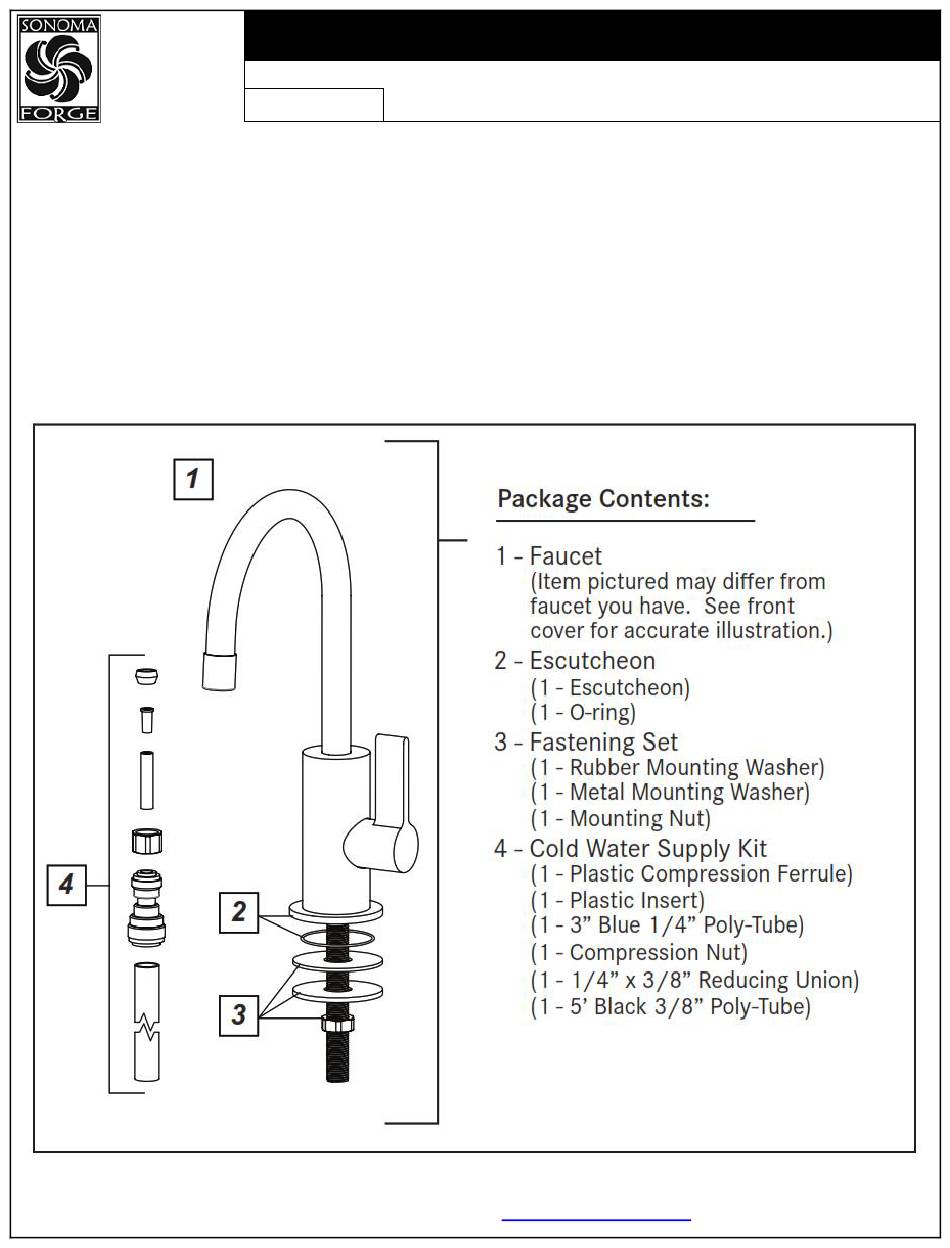

Drinking / Cold Water Faucets (POU-LBO-C, POU-GN-C)
|
|
800.330.5553
f 707.789.9201
info@sonomaforge.com
Advertisement
Related Manuals for Sonoma Forge POU-LBO-C
Summary of Contents for Sonoma Forge POU-LBO-C
- Page 1 Safety Code requirements for low lead (AB1953) as well as the low lead requirements of the US Safe Drinking Water Act of 2014. These dispensing faucets are NOT compatible with REVERSE OSMOSIS (RO) Drinking / Cold Water Faucets (POU-LBO-C, POU-GN-C) 800.330.5553 f 707.789.9201...
- Page 2 INSTALLATION GUIDE Point of Use Faucets Nov 2023 Hot Water Faucets (POU-LBO-H, POU-GN-H) 800.330.5553 f 707.789.9201 info@sonomaforge.com...
- Page 3 INSTALLATION GUIDE Point of Use Faucets Nov 2023 Hot & Cold Water Faucets (POU-LBO-HC, POU-GN-HC) 800.330.5553 f 707.789.9201 info@sonomaforge.com...
- Page 4 INSTALLATION GUIDE Point of Use Faucets Nov 2023 For best results, it is recommended this faucet be installed by a licensed, professional plumber. The installer should familiarize themselves with how this dispensing faucet will be installed and function as part of a point-of-use water dispensing arrangement BEFORE the products are installed because there are several installation options.
- Page 5 INSTALLATION GUIDE Point of Use Faucets Nov 2023 It is recommended to take the components and locate their optimum positions before starting the installation. Make sure there is adequate clearance for the dispenser handle(s) to open fully without interference, all plumbing and electrical connections will reach the intended mounting positions for all the components and there will be no obstructions or sharp bends in plumbing, and the countertop is no thicker than 2-¼”.
- Page 6 INSTALLATION GUIDE Point of Use Faucets Nov 2023 Cold water faucets: 1. Remove the Mounting Nut and ¼” compression nut from the mounting nipple. 2. Install the escutcheon to the base of the faucet by sliding it over the mounting nipple. Make sure the O-ring is positioned in its seat in the escutcheon.
- Page 7 INSTALLATION GUIDE Point of Use Faucets Nov 2023 Hot / Hot & Cold water faucets: 7. Remove the 3/8” compression nut from the factory installed steel supply hose. o Slide the plastic ferrule and the compression nut onto the black 3/8” poly-tubing and place the plastic insert in the end of the tubing as illustrated.
- Page 8 INSTALLATION GUIDE Point of Use Faucets Nov 2023 All Point of Use faucets: 10. Install Mounting Washer and Mounting Nut as shown. 11. Connect the black 3/8” poly-tubing from the faucet to the filtration system. If you decide not to utilize a filtration system with your LB1_100 series faucet, you must provide a connection for the black 3/8”...
